Nissan-Datsun
>>
2011
>>
Juke S, FWD
>>
Repair and Diagnosis
>>
Suspension
>>
Wheel Alignment
>>
Front Suspension
>>
Removal And Installation
>>
Transverse Link
>>
Exploded View
Exploded View

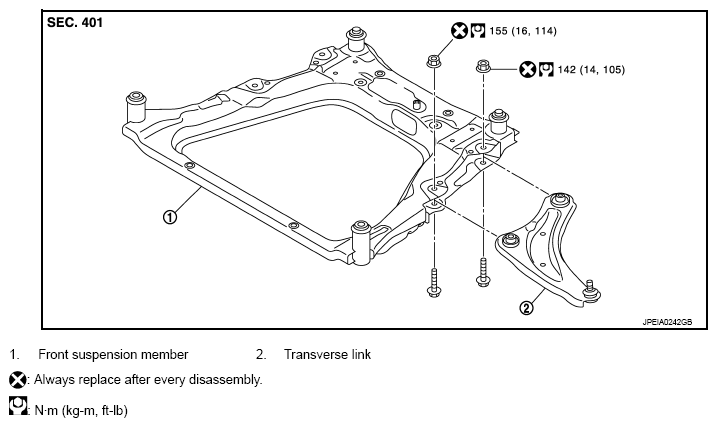

Fig 1: Transverse Link And Front Suspension With Torque Specifications
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
