Nissan-Datsun
>>
2011
>>
Juke S, FWD
>>
Repair and Diagnosis
>>
Engine Performance
>>
Fuel Delivery
>>
Fuel System (MRDDT)
>>
Removal And Installation
>>
Fuel Tank
>>
AWD
>>
AWD : Exploded View
AWD : Exploded View

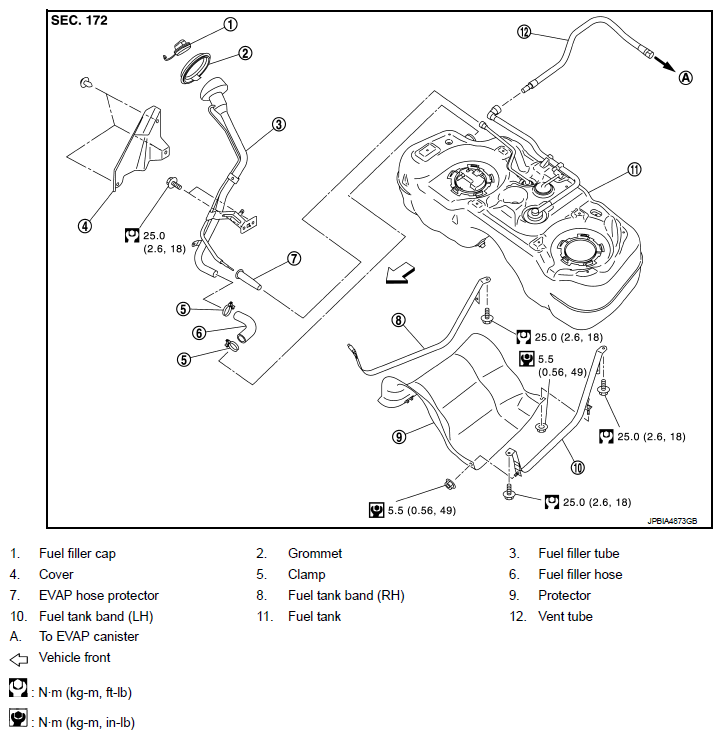

Fig 1: Exploded View Of Fuel Tank AWD With Torque Specifications
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
