Rear Seat
>>
Exploded View
Exploded View

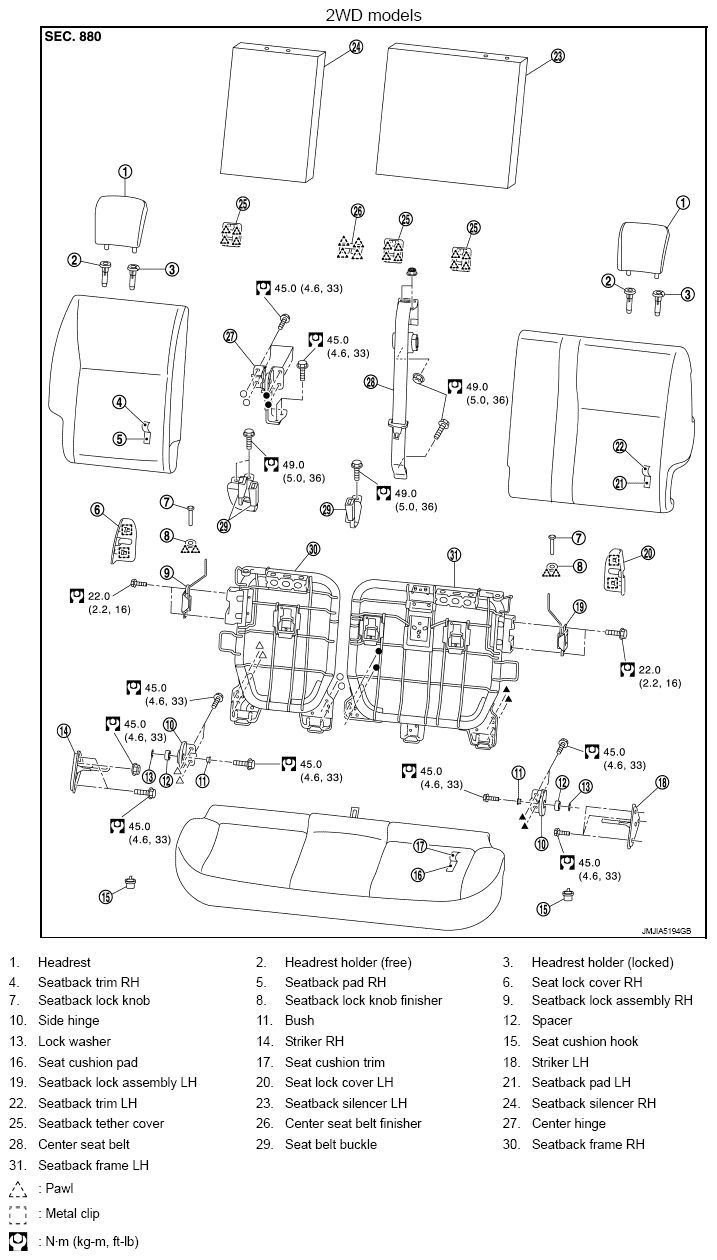

Fig 1: Exploded View Of Rear Seat Components With Torque Specifications (2WD Models)
Courtesy of NISSAN MOTOR CO., U.S.A.

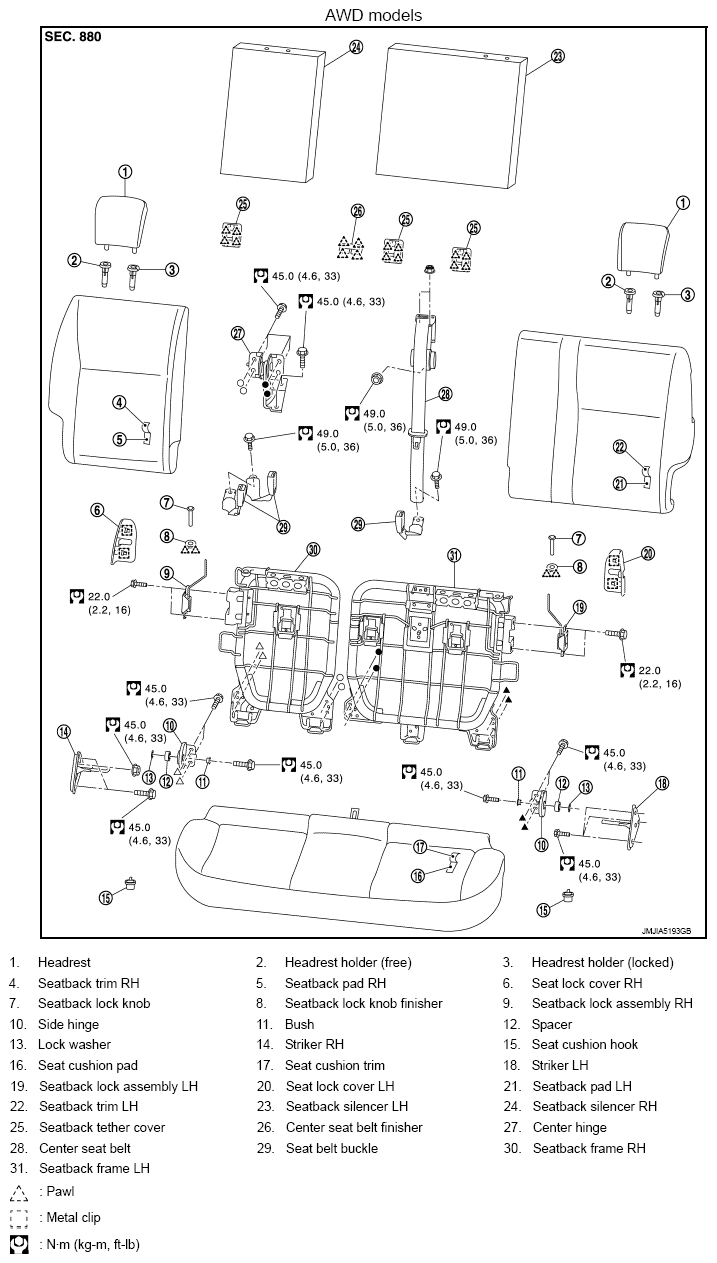

Fig 2: Exploded View Of Rear Seat Components With Torque Specifications (AWD Models)
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
