Removal and Installation: Notes

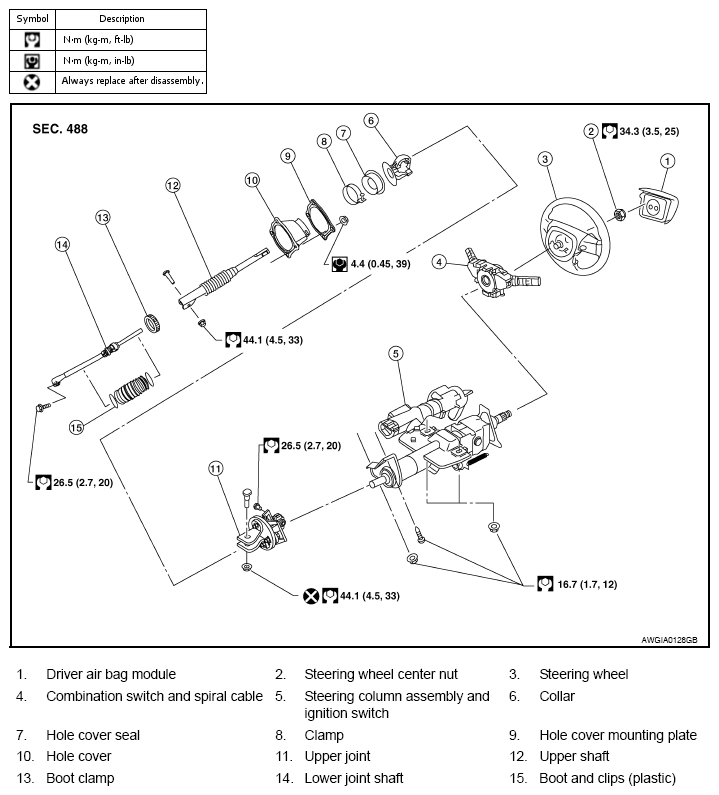

Fig 1: Exploded View Of Steering Column With Torque Specifications

Courtesy of NISSAN MOTOR CO., U.S.A.

CAUTION:

Do not exert any axial load or impact to the steering column.
Do not move the steering gear while the steering column assembly is removed.
Any time the ignition switch has been removed or installed, the keys must be re-registered in the BCM Refer to the CONSULT-III operation instructions IVIS/NVIS.
