Engine Control Component Parts Location

WARNING: This page is about a different variant/trim than selected.

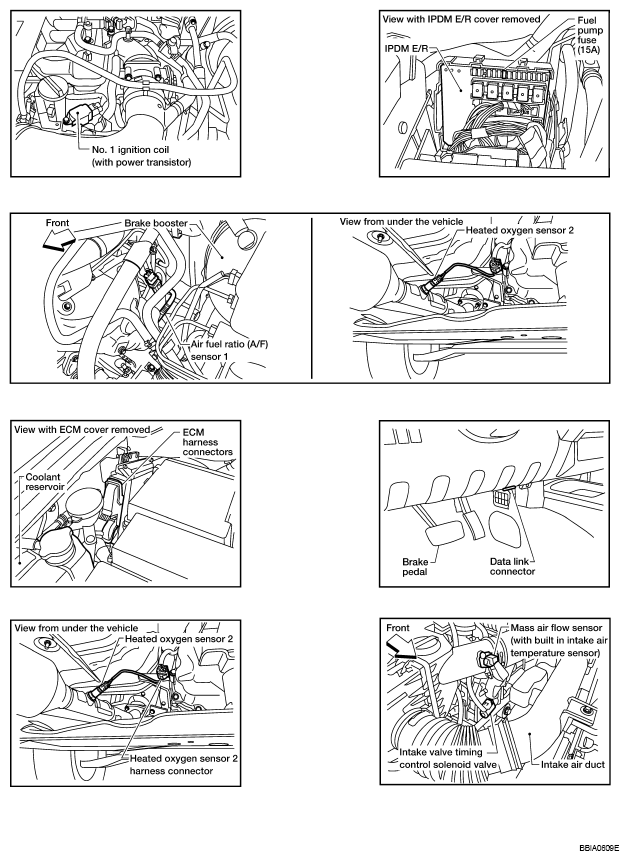

Fig 1: Location Of Engine Control System Component (1 Of 7)

Courtesy of NISSAN MOTOR CO., U.S.A.

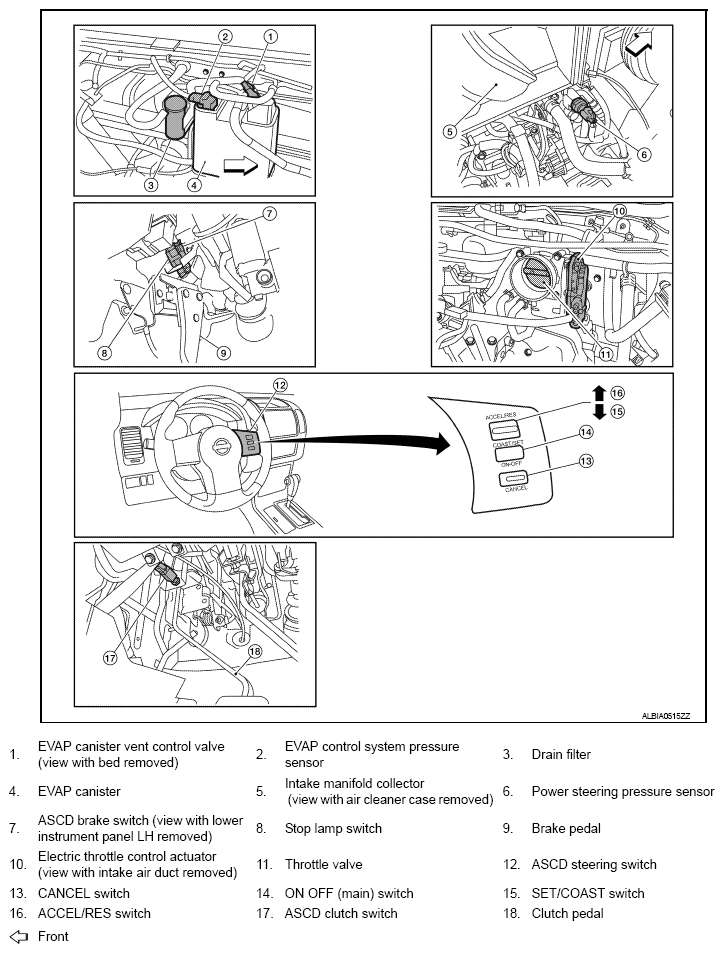

Fig 2: Location Of Engine Control System Component (2 Of 7)

Courtesy of NISSAN MOTOR CO., U.S.A.

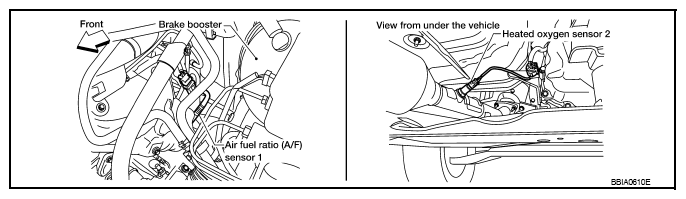

Fig 3: Location Of Engine Control System Component (3 Of 7)

Courtesy of NISSAN MOTOR CO., U.S.A.

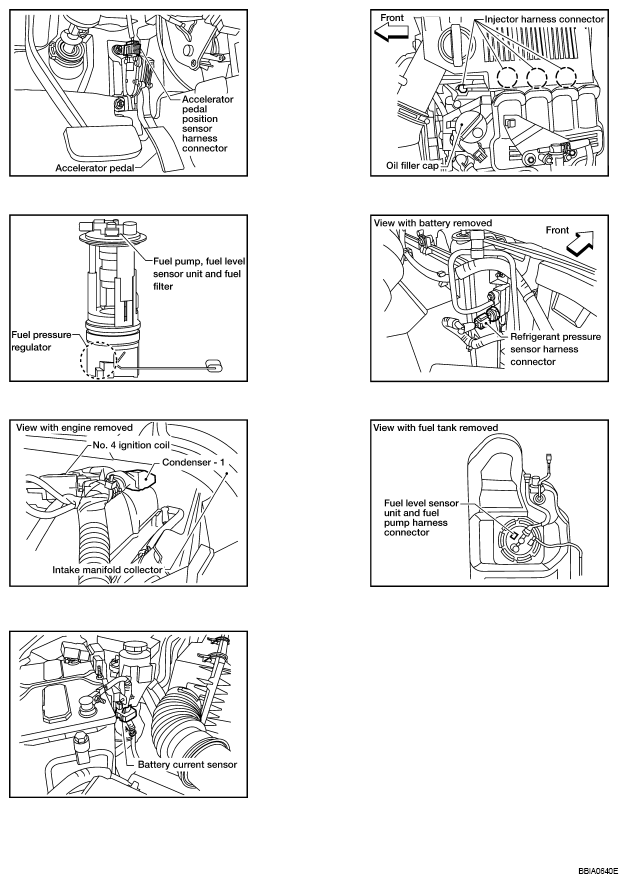

Fig 4: Location Of Engine Control System Component (4 Of 7)

Courtesy of NISSAN MOTOR CO., U.S.A.

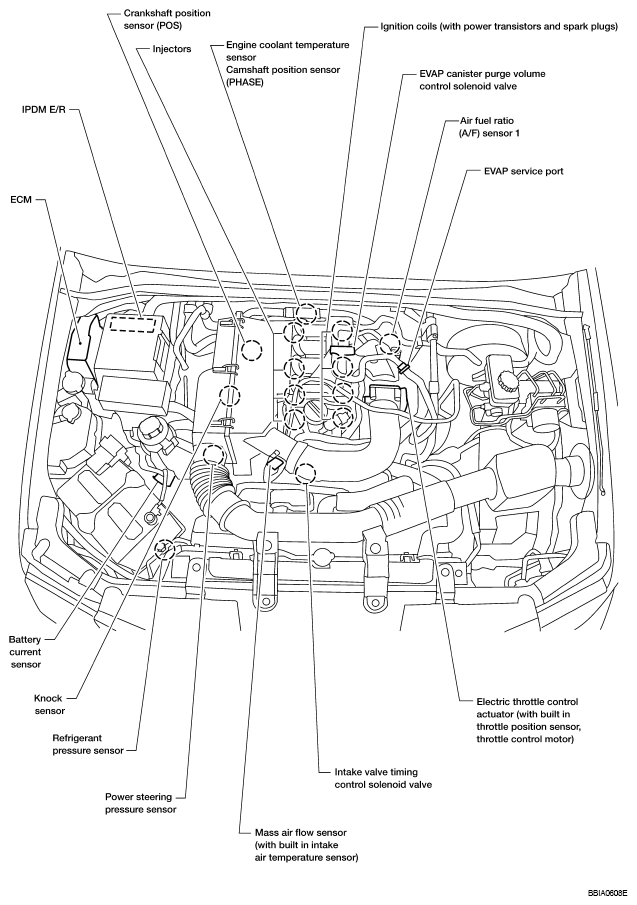

Fig 5: Location Of Engine Control System Component (5 Of 7)

Courtesy of NISSAN MOTOR CO., U.S.A.

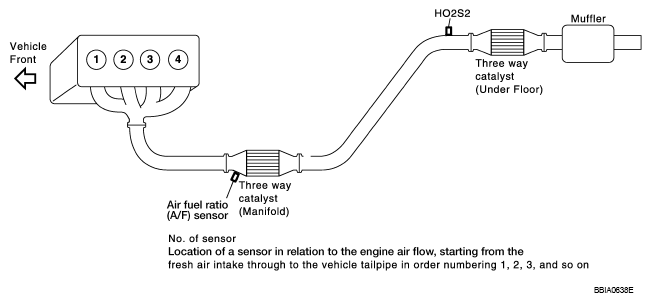

Fig 6: Location Of Engine Control System Component (6 Of 7)

Courtesy of NISSAN MOTOR CO., U.S.A.

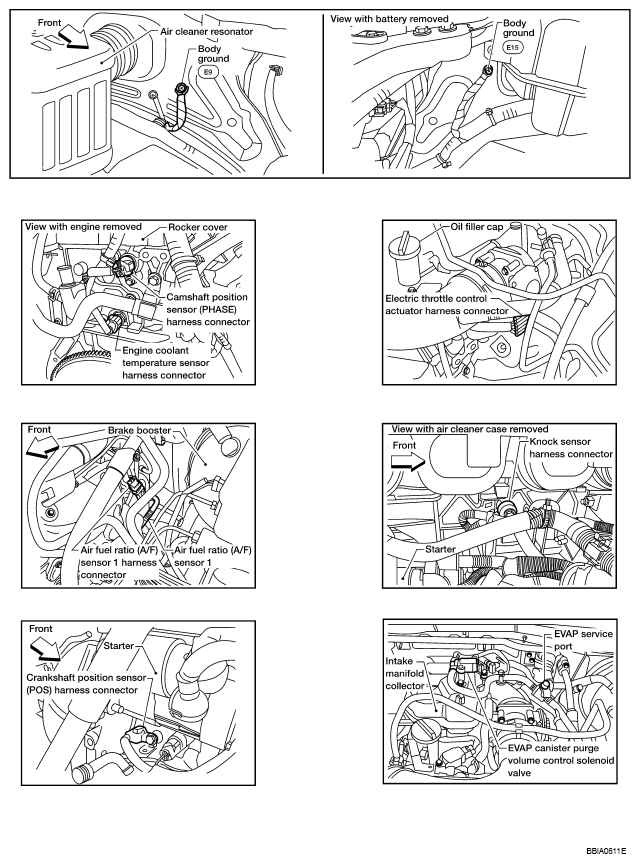

Fig 7: Location Of Engine Control System Component (7 Of 7)

Courtesy of NISSAN MOTOR CO., U.S.A.
