Ignition Timing

  1. Attach timing light to loop wire as shown.

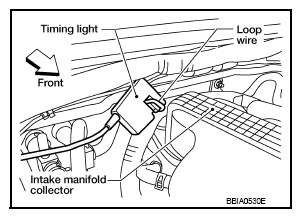

    Fig 1: Identifying Wire Loop Of Timing Light And Intake Manifold Collector
    G07121034Courtesy of NISSAN MOTOR CO., U.S.A.
  2. Check ignition timing.

    Any of following two methods may be used.

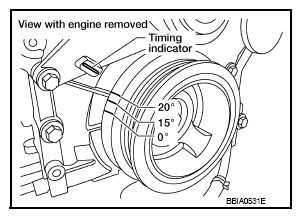

    Fig 2: Identifying Positions Of Timing Indicator
    G07121035Courtesy of NISSAN MOTOR CO., U.S.A.
