Removal and Installation: Removal

  1. Using a suitable tool, release the metal clip and pawls, then lift upward the main power window/door lock switch and finisher (2)
    • LH as an assembly.

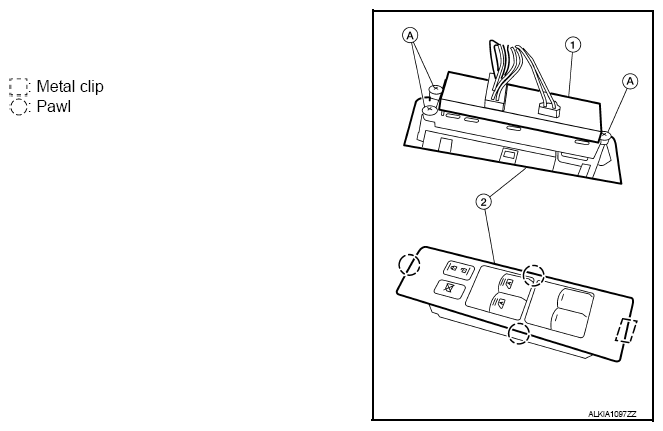

      Fig 1: Exploded View Of Window/Door Lock Switch Finisher, Window/Door Lock Switch & Screws
      G07124697Courtesy of NISSAN MOTOR CO., U.S.A.
      CAUTION: Wrap a cloth around suitable tool to protect components from damage.
  2. Disconnect the harness connectors.
  3. Remove the main power window/door lock switch and finisher (2) - LH assembly from the front door finisher.
  4. Remove the three screws (A) from the main power window/door lock switch (1) - LH.
  5. Remove the main power window/door lock switch (1) - LH from the main power window/door lock switch finisher (2) - LH.
