Nissan-Datsun
>>
2011
>>
Frontier SL, 4WD
>>
Repair and Diagnosis
>>
Steering
>>
Power Steering System
>>
Unit Disassembly And Assembly
>>
Steering Column
>>
Disassembly and Assembly
>>
Notes
Disassembly and Assembly: Notes

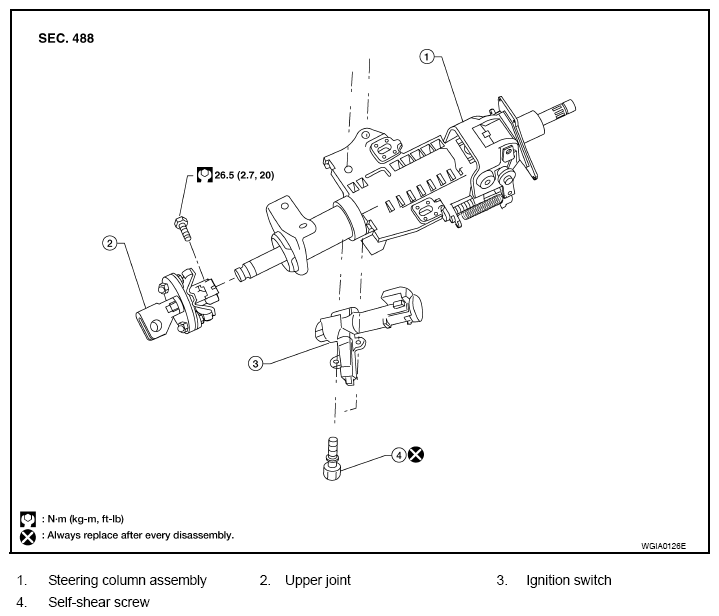

Fig 1: Exploded View Of Steering Column Disassembly & Assembly With Torque Specifications
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
