Removal and Installation: Removal

  1. Using a suitable tool, release the metal clip and pawls, then lift upward the front power window/door lock switch and finisher (2)
    • RH as an assembly.

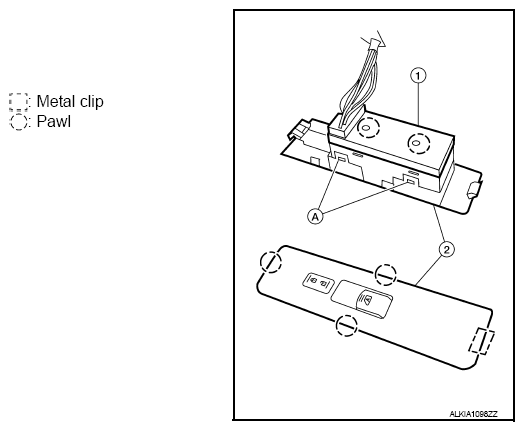

      Fig 1: Exploded View Of Window/Door Lock Switch Finisher, Window/Door Lock Switch Replacement Components Tabs
      G07124698Courtesy of NISSAN MOTOR CO., U.S.A.
      CAUTION: Wrap a cloth around suitable tool to protect components from damage.
  2. Disconnect the harness connector.
  3. Remove the front power window/door lock switch and finisher (2) - RH assembly from the front door finisher.
  4. Release the four tabs (A), two on each side, then separate the front power window/door lock switch (1) - RH from the front power window/door lock switch finisher (2) - RH.
