TPMS Components Not Interchangeable (NTB10-093C)

WARNING: This page is about the Cube Base, which is a different variant/trim than selected.

Publication date: 2011-10-03
Reference number: NTB10-093C
Supersedes refnos: NTB10-093

TPMS COMPONENTS NOT INTERCHANGEABLE

TECHNICAL SERVICE BULLETIN

Reference Number(s): NTB10-093c, Date of Issue: October 3, 2011

NISSAN:	2010 - 2011 370Z Coupe and Roadster; 2011 cube, Juke; 2012 Versa Sedan
CLASSIFICATION:	WT10-003c
APPLIED VEHICLES:	2010 - 2011 370Z Coupe and Roadster (Z34); 2011 cube (Z12); 2011 Juke (F15); 2012 Versa Sedan (N17)

NOTE: This bulletin has been amended. Applied Vehicles and Service Information have been updated. Please discard previous versions of this bulletin.

SERVICE INFORMATION

Recent design changes have been made to the Tire Pressure Monitoring System (TPMS) sensors, receivers, and control units on the above Applied Vehicles.

These changes do not affect the overall function of the TPMS.
These changes do affect the interchangeability of parts.

FOR EXAMPLE:

Full wheel assemblies (wheel and tire assemblies with TPMS) cannot be swapped between vehicles with different style TPMS sensors.
Issues caused by tire swapping (installation of incorrect sensors) is not a warrantable repair.
CAUTION:
- Nissan now has three different styles of TPMS.
- Components are not compatible and cannot be interchanged between these different styles.
- Swapping of components between these styles will cause the TPMS to stop operating correctly.
- If wheel swaps are done between models with different style TPMS, the original sensors must stay with the vehicle.

Refer to the following pages in this bulletin for additional information on identifying different style TPMS sensors.

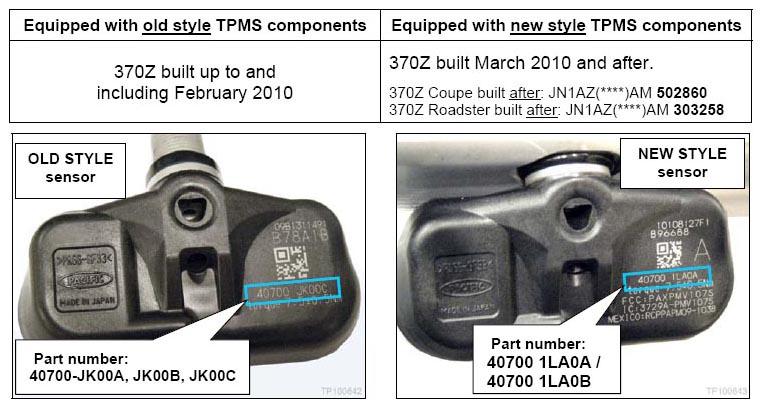

2010 - 2011 370Z Coupe and Roadster (Old style / New style sensors)

NOTE: If further confirmation of the TPMS sensor part number is required, review the part number of the originally installed equipment before replacement.

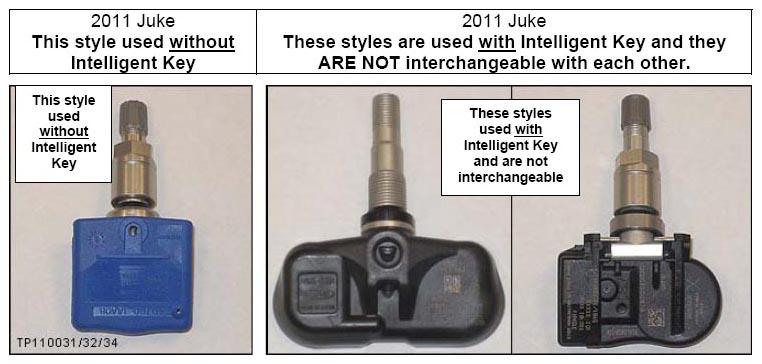

2011 Juke (three styles of sensors are currently in production)

NOTE:

Refer to the electronic parts catalog (FAST or equivalent) for the correct Part Number application.

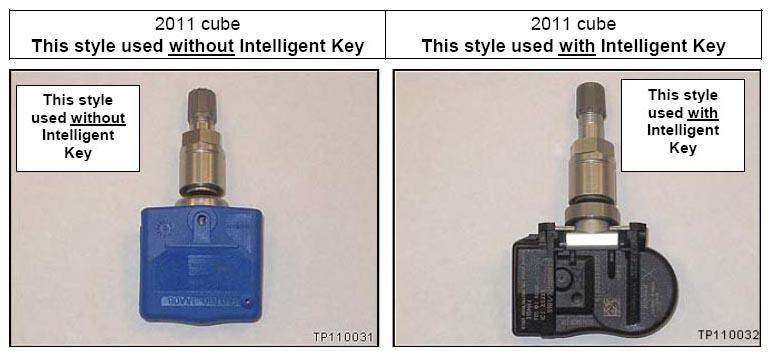

2011 cube (two styles of sensors are currently in production)

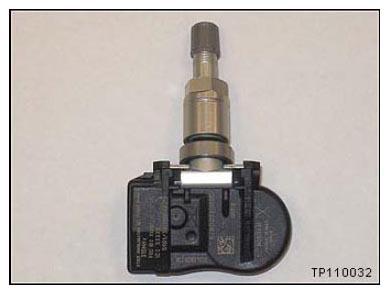

2012 Versa Sedan

Not interchangeable with Versa Hatchback, Juke or cube.

Using Signal Tech II

Make sure your Signal Tech II is updated. Refer to NTB10-048B for update information.

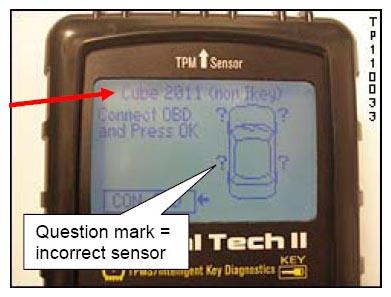

Use the TPMS check function.
Make sure to select the correct vehicle model.
Example: Cube 2011 Non I-Key
If the incorrect sensors are installed a question mark will appear.

Using CONSULT-III

If C-III is being used to register TPMS sensors, the registration will fail if the wrong sensors are installed.
Do not assume that failure to register means an inoperative sensor. Confirm that the correct sensors are installed.
