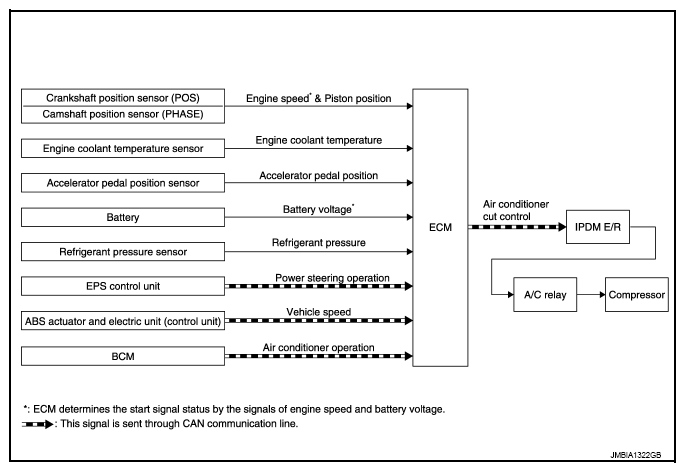

Home >> Nissan-Datsun >> 2011 >> Cube Base >> Repair and Diagnosis >> Engine Performance >> System >> Engine Control System - Introduction & DTC Index (For CALIFORNIA) >> Introduction & DTC Index >> System Description >> Air Conditioning Cut Control >> System Diagram
