Engine Control System - Introduction & DTC Index (Except For CALIFORNIA)
>>
Introduction & DTC Index
>>
DTC/Circuit Diagnosis
>>
Trouble Diagnosis - Specification Value
>>
Diagnosis Procedure
>>
Overall Sequence
Overall Sequence

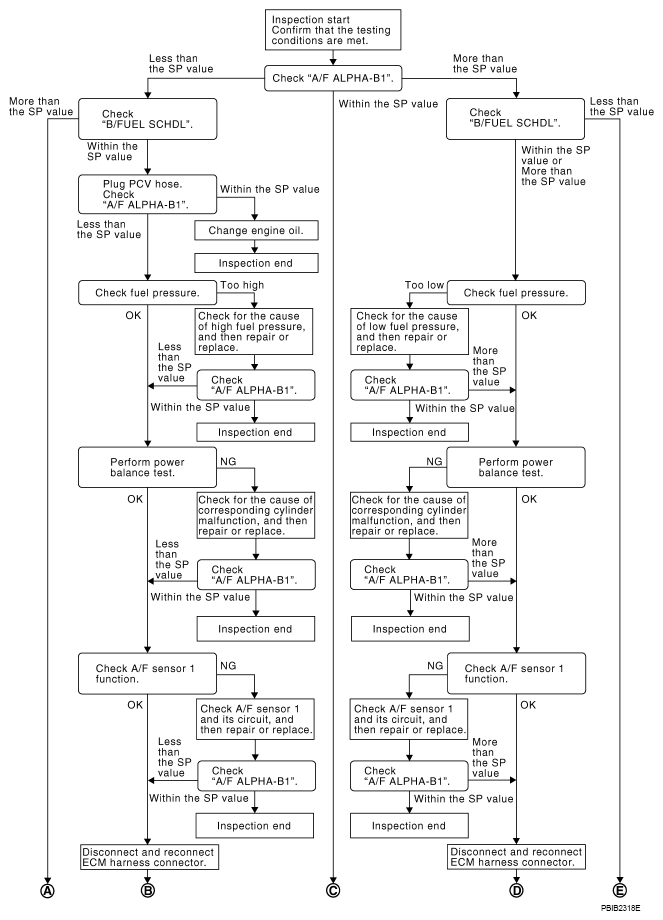

Fig 1: Diagnosis Procedure Flow Chart (1 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.

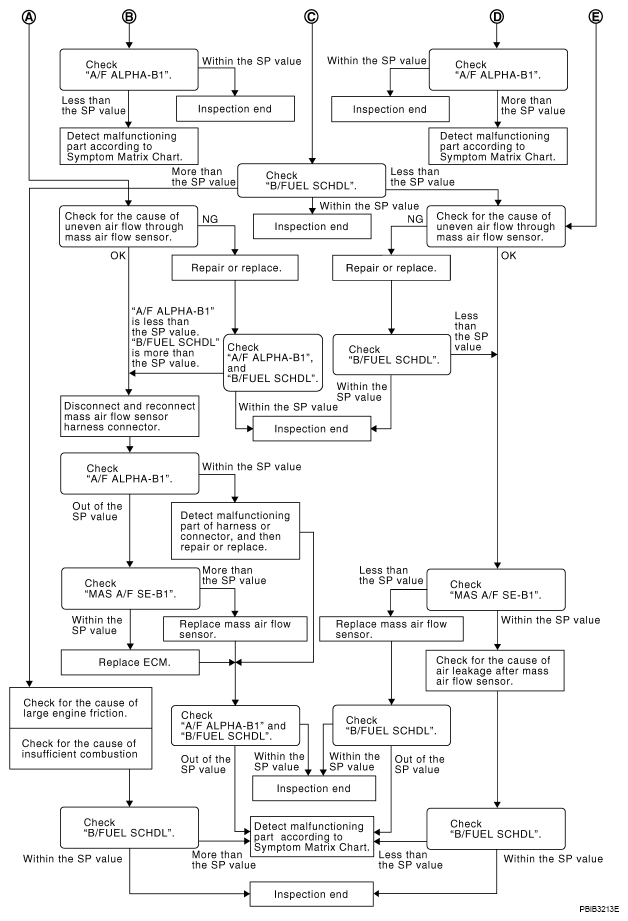

Fig 2: Diagnosis Procedure Flow Chart (2 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
