Component Location Graphics

NOTE: Figures may show multiple component locations. Refer to appropriate table for proper figure references.

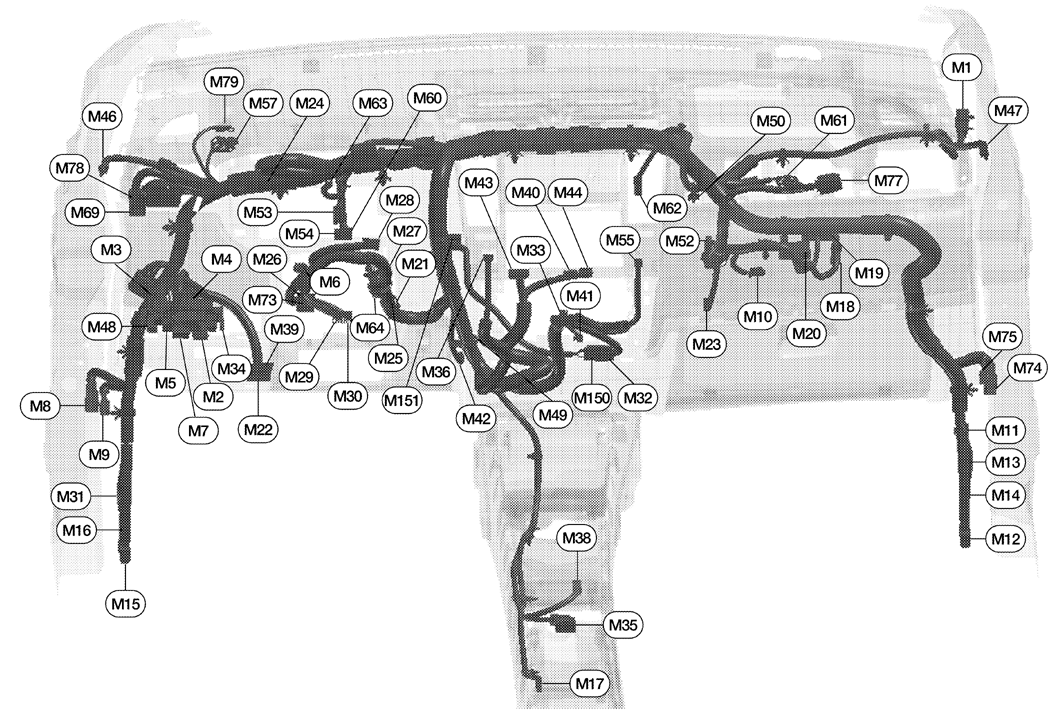

Fig 1: Dash

G00475666

Courtesy of NISSAN MOTOR CO., U.S.A.

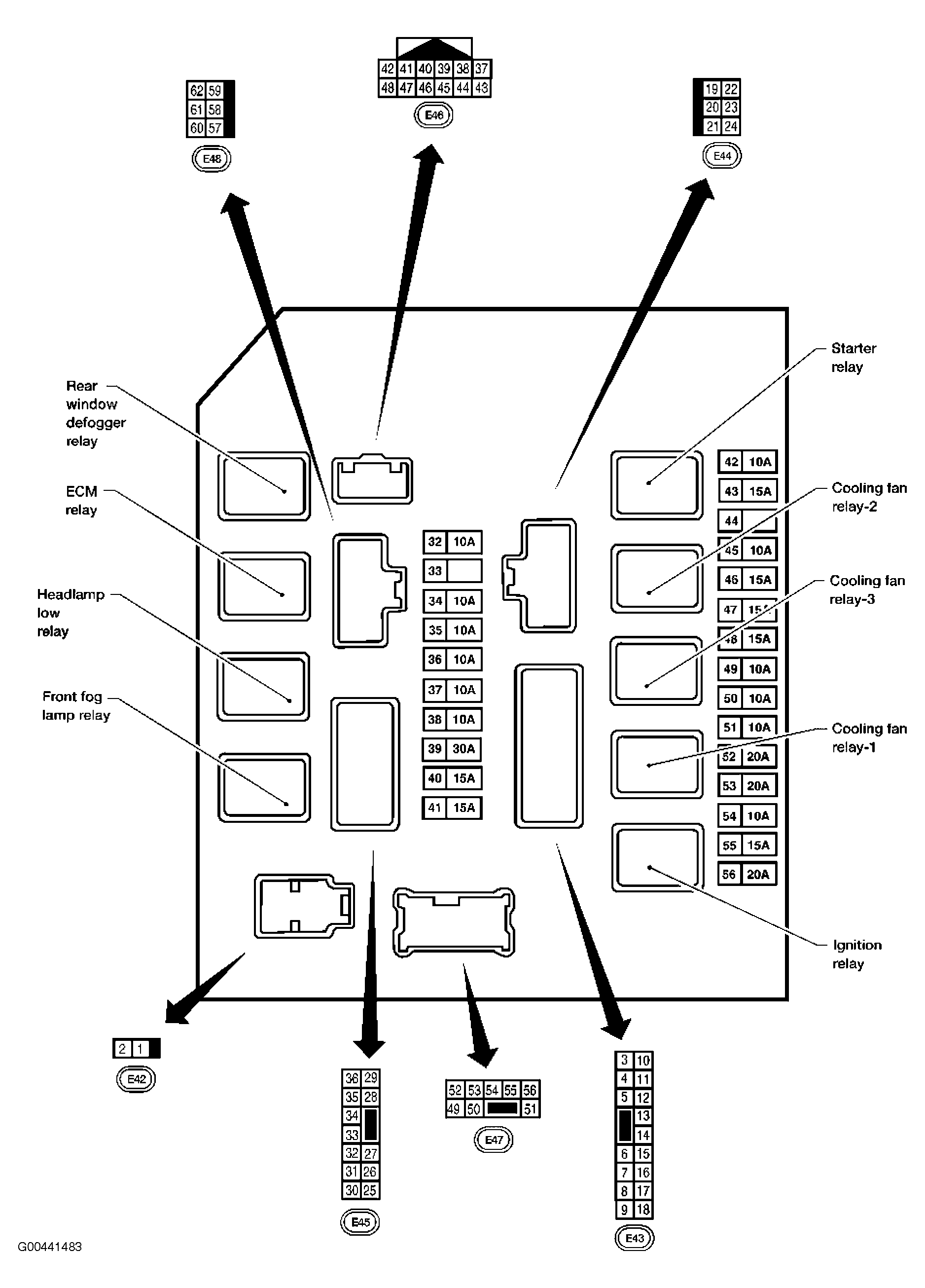

Fig 2: IPDM E/R - Type "A" (Intelligent Power Distribution Module Engine Room) Terminal Arrangement

G00441483

Courtesy of NISSAN MOTOR CO., U.S.A.

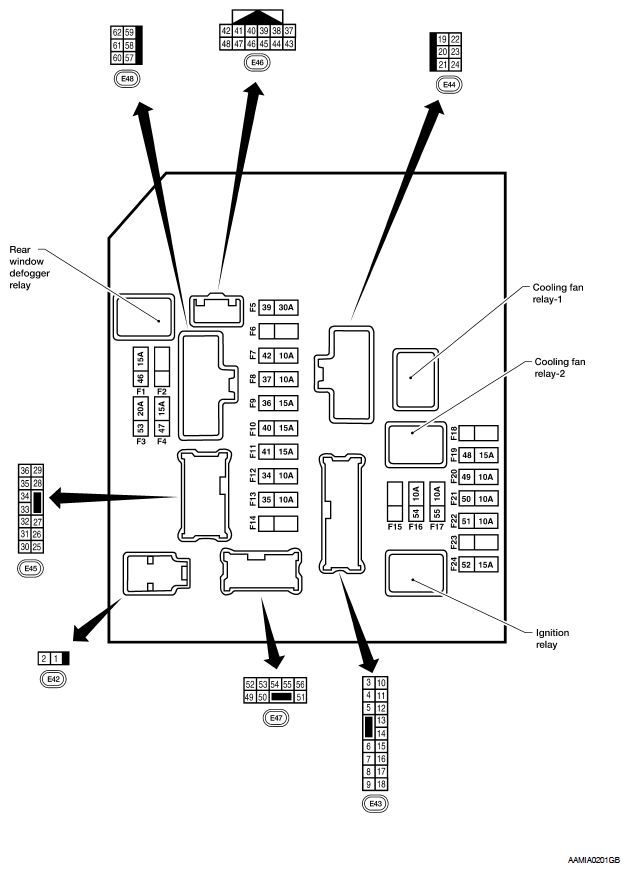

Fig 3: IPDM E/R - Type "B" (Intelligent Power Distribution Module Engine Room) Terminal Arrangement

G06547558

Courtesy of NISSAN MOTOR CO., U.S.A.

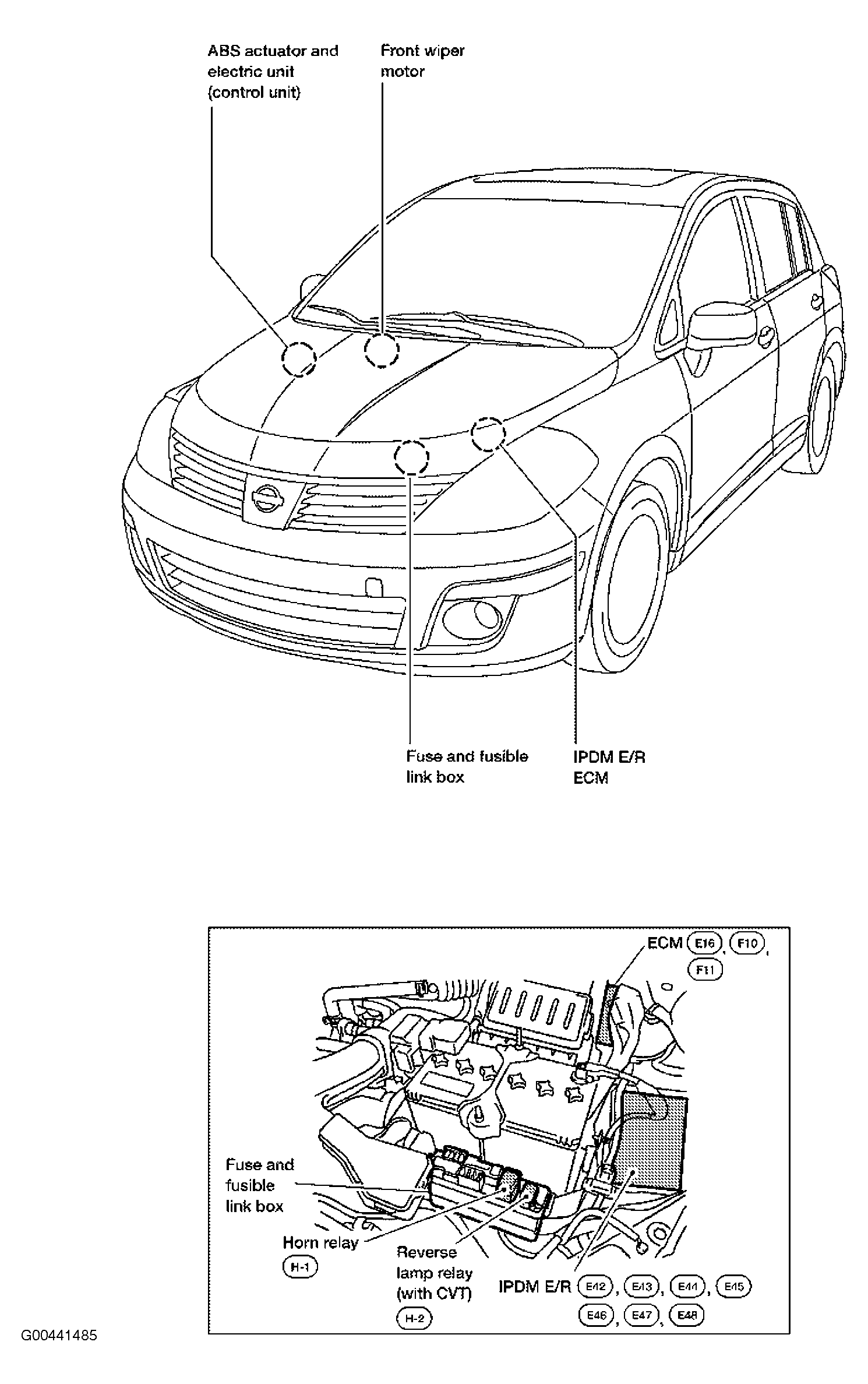

Fig 4: Engine Compartment

G00441485

Courtesy of NISSAN MOTOR CO., U.S.A.

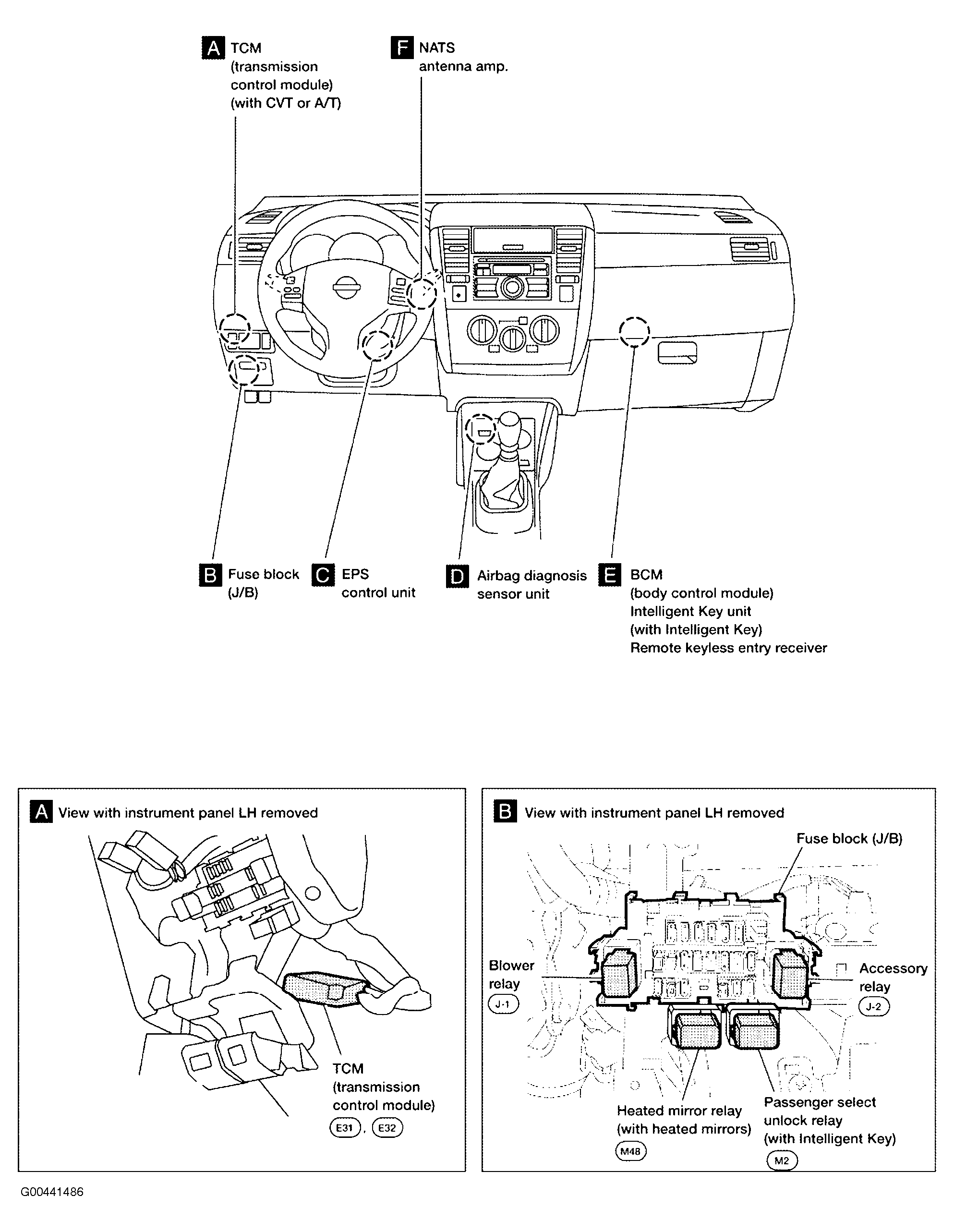

Fig 5: Dash (1 Of 2)

G00441486

Courtesy of NISSAN MOTOR CO., U.S.A.

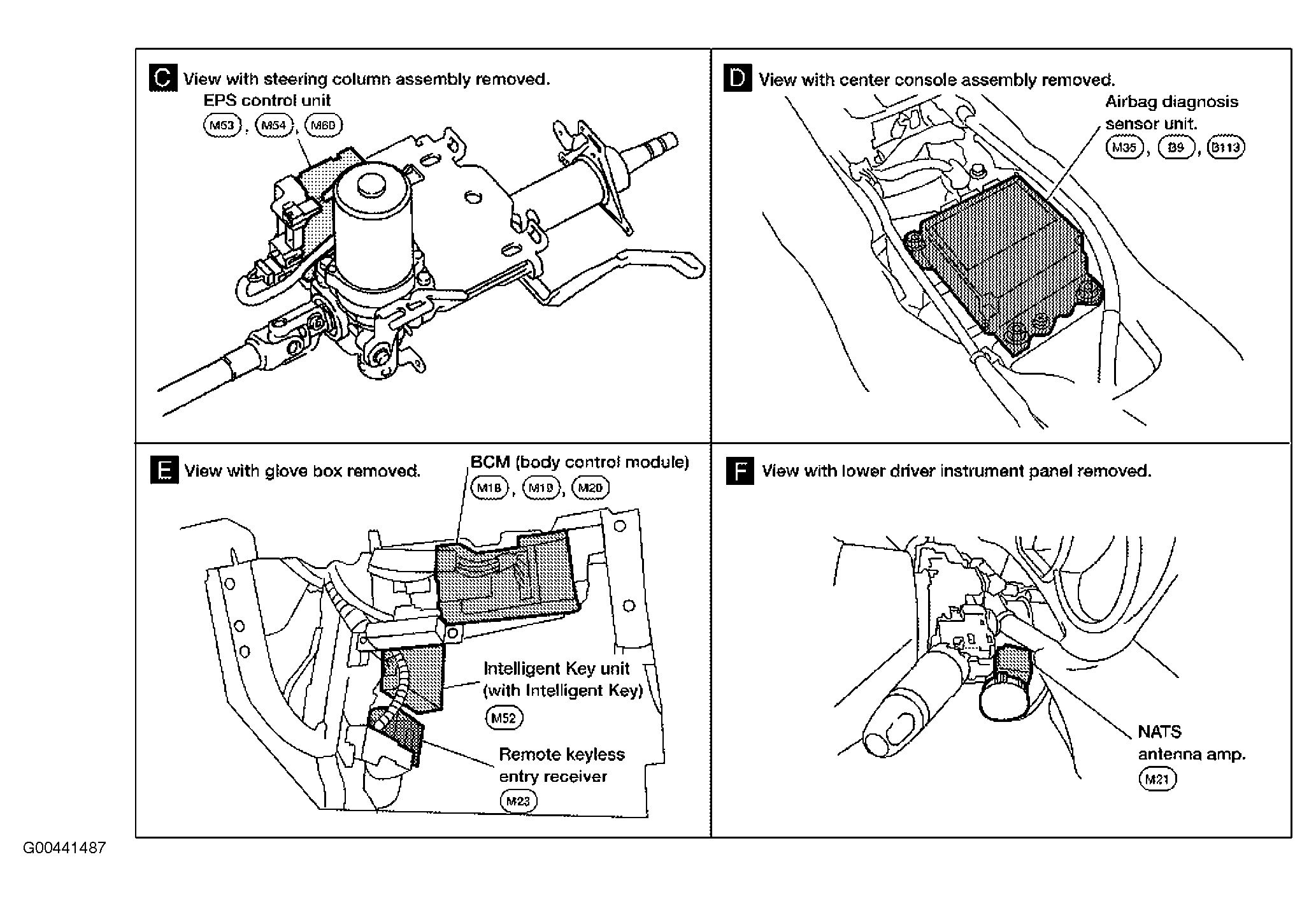

Fig 6: Dash (2 Of 2)

G00441487

Courtesy of NISSAN MOTOR CO., U.S.A.

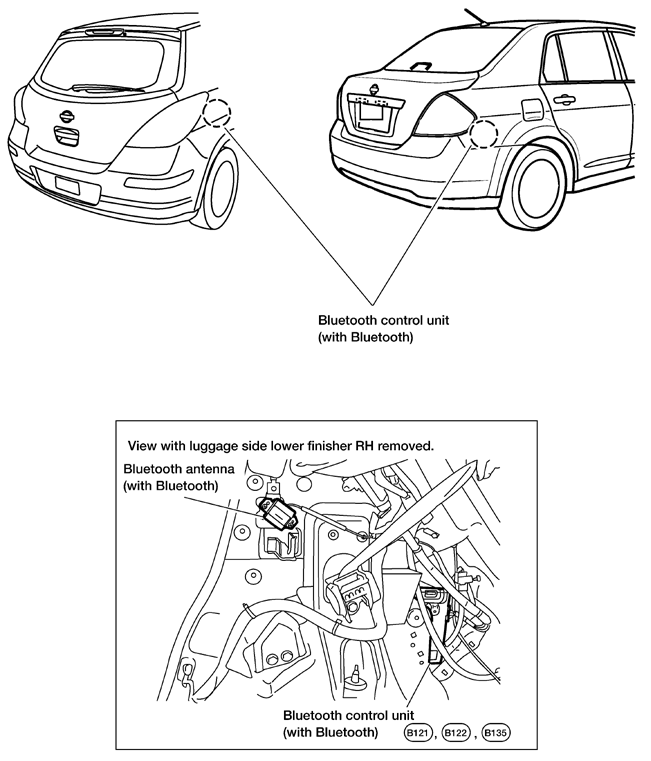

Fig 7: Luggage Compartment

G00475671

Courtesy of NISSAN MOTOR CO., U.S.A.

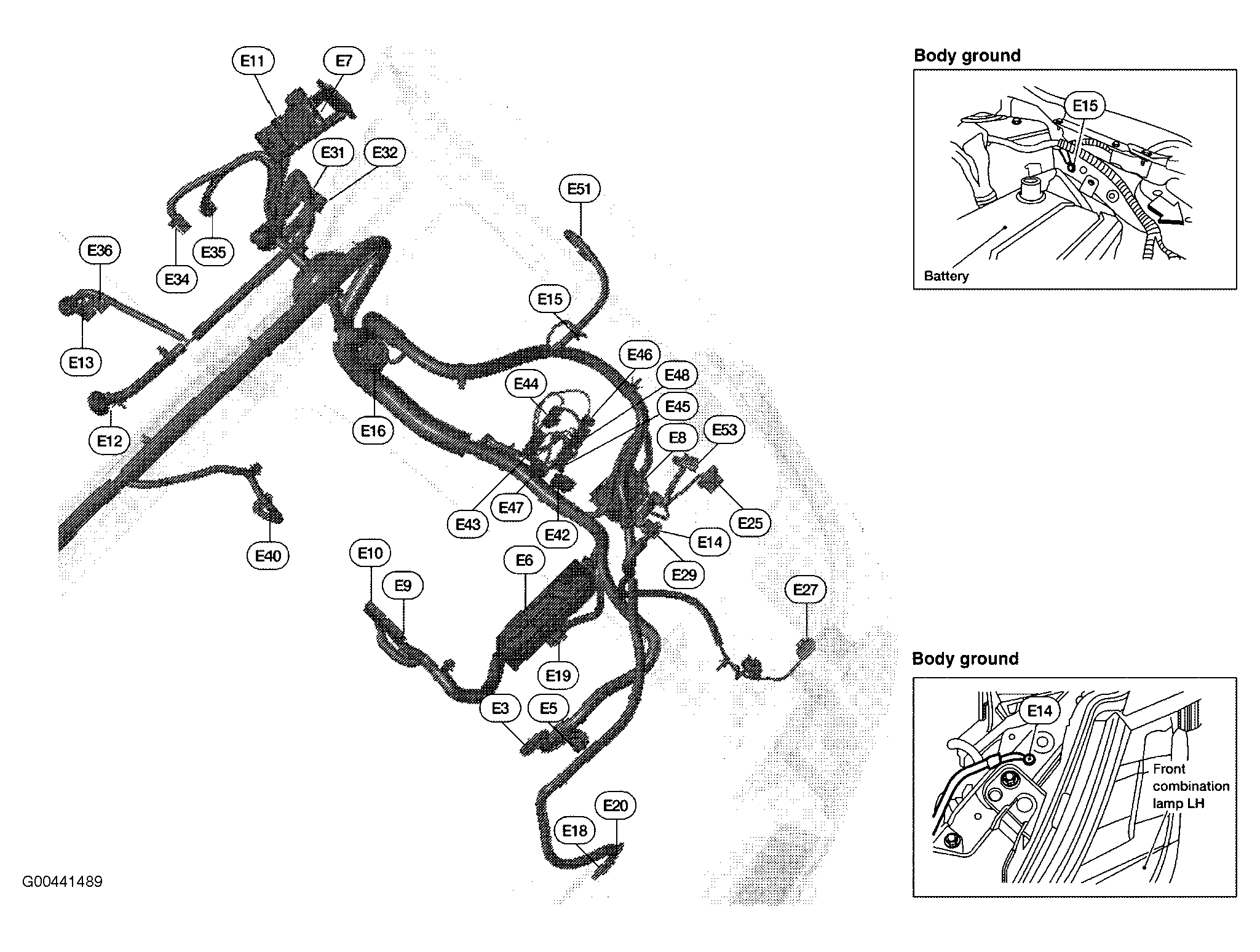

Fig 8: Left Side Of Engine Compartment & Behind Left Side Of Dash

G00441489

Courtesy of NISSAN MOTOR CO., U.S.A.

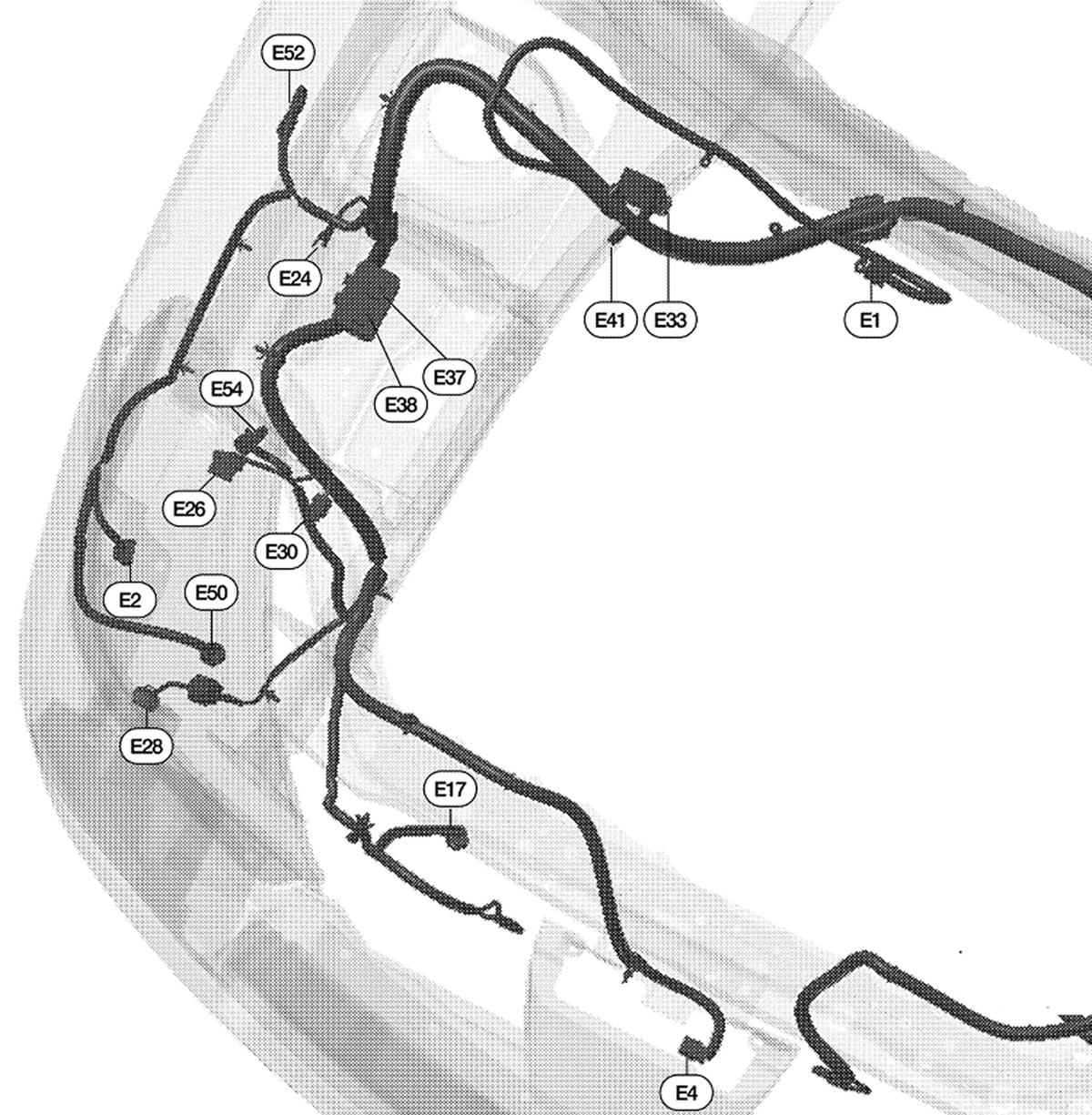

Fig 9: Right Side Of Engine Compartment

G00470199

Courtesy of NISSAN MOTOR CO., U.S.A.

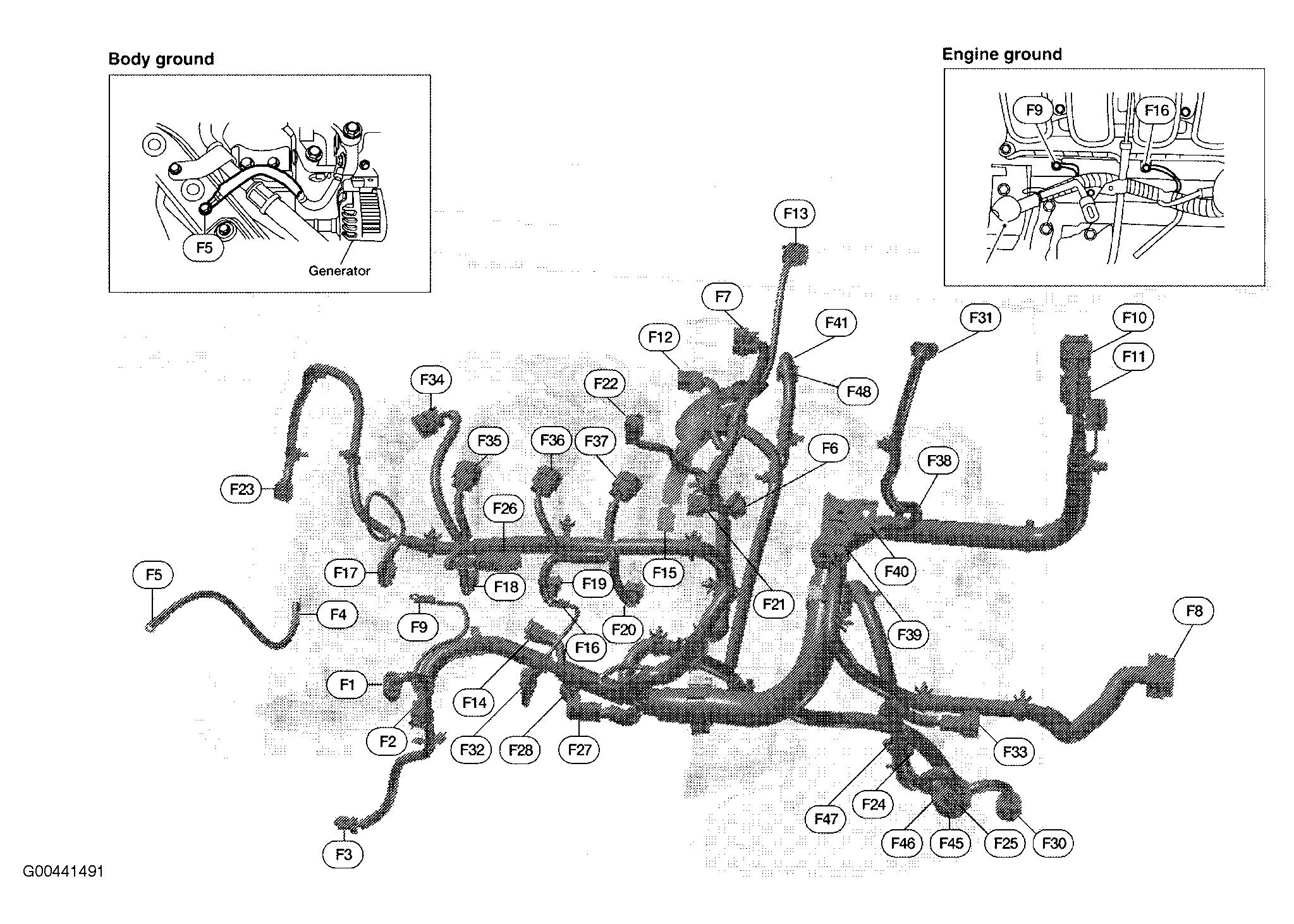

Fig 10: Engine

G00441491

Courtesy of NISSAN MOTOR CO., U.S.A.

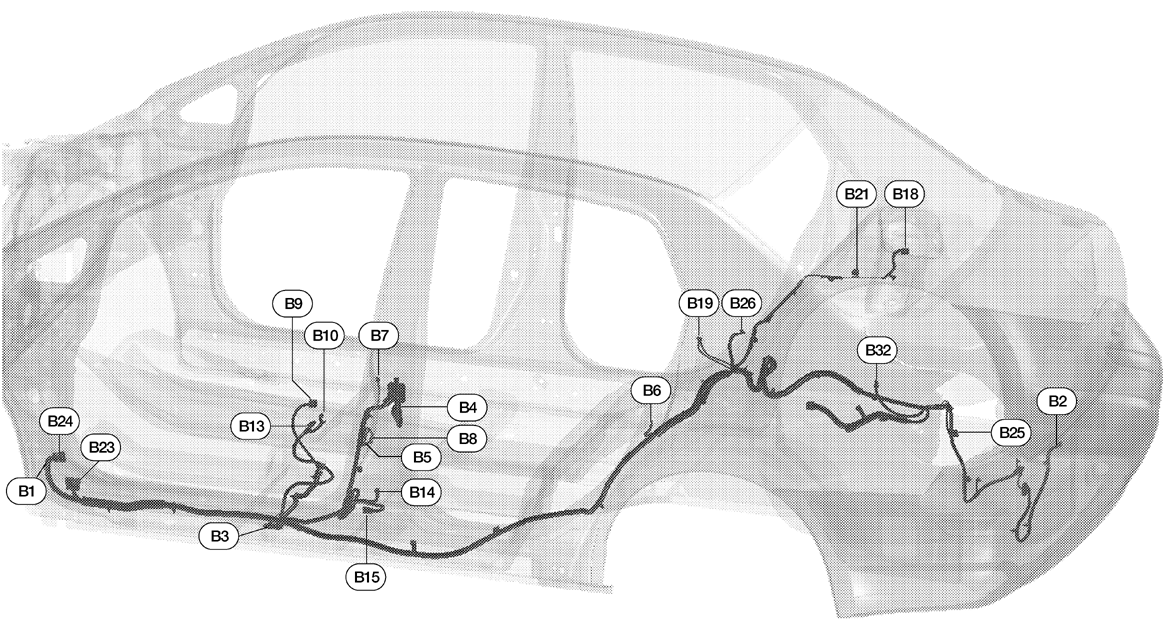

Fig 11: Left Side Of Vehicle (Sedan)

G00475668

Courtesy of NISSAN MOTOR CO., U.S.A.

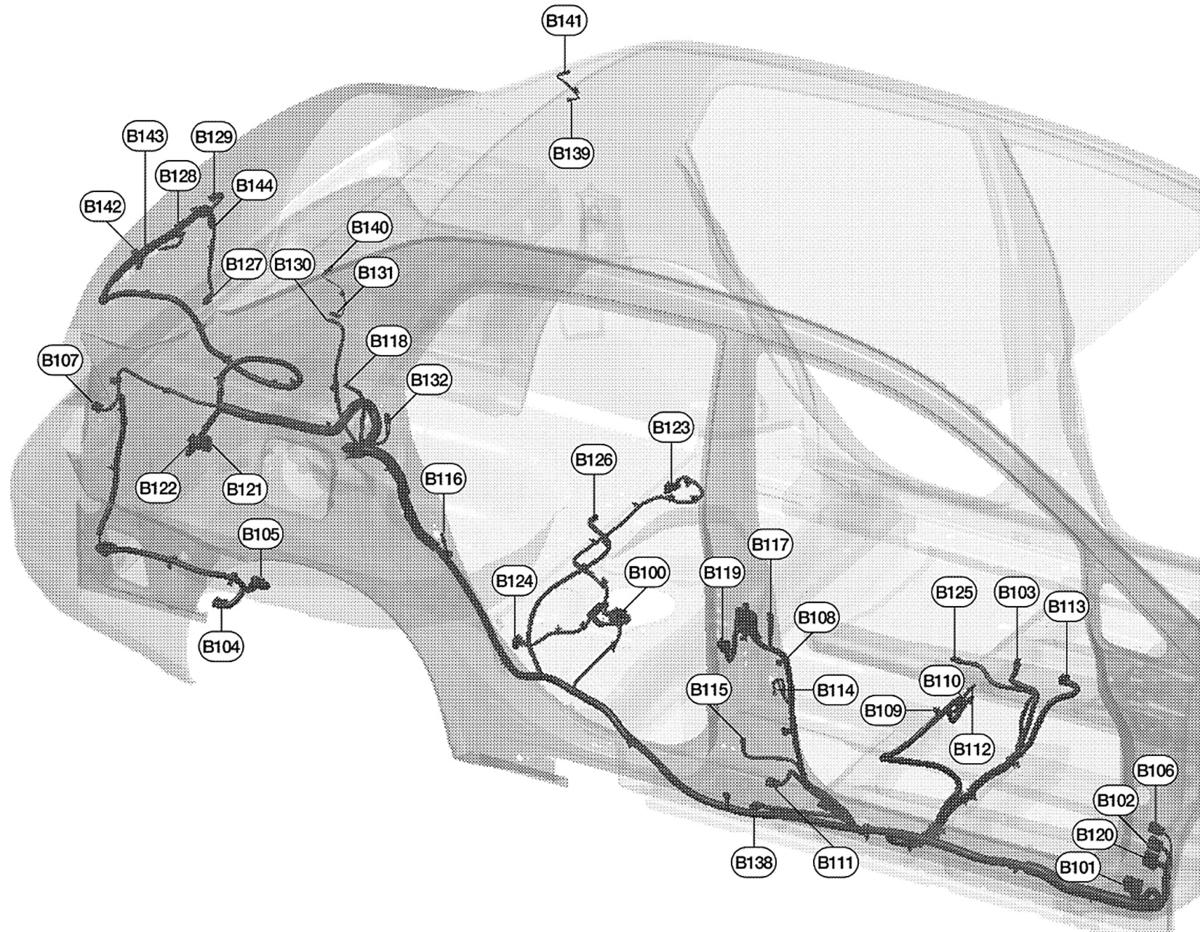

Fig 12: Right Side Of Vehicle (Sedan)

G00470200

Courtesy of NISSAN MOTOR CO., U.S.A.

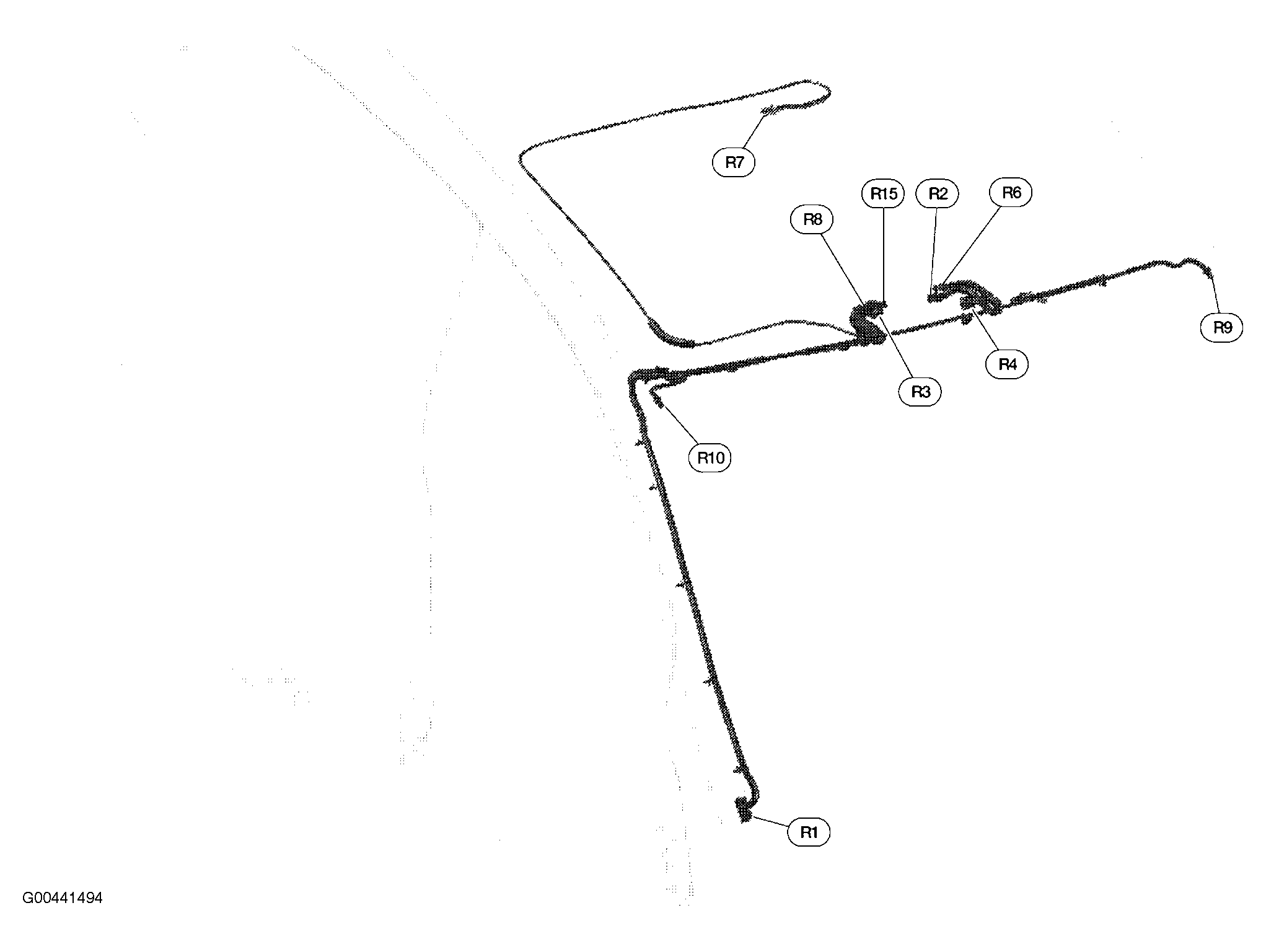

Fig 13: Roof

G00441494

Courtesy of NISSAN MOTOR CO., U.S.A.

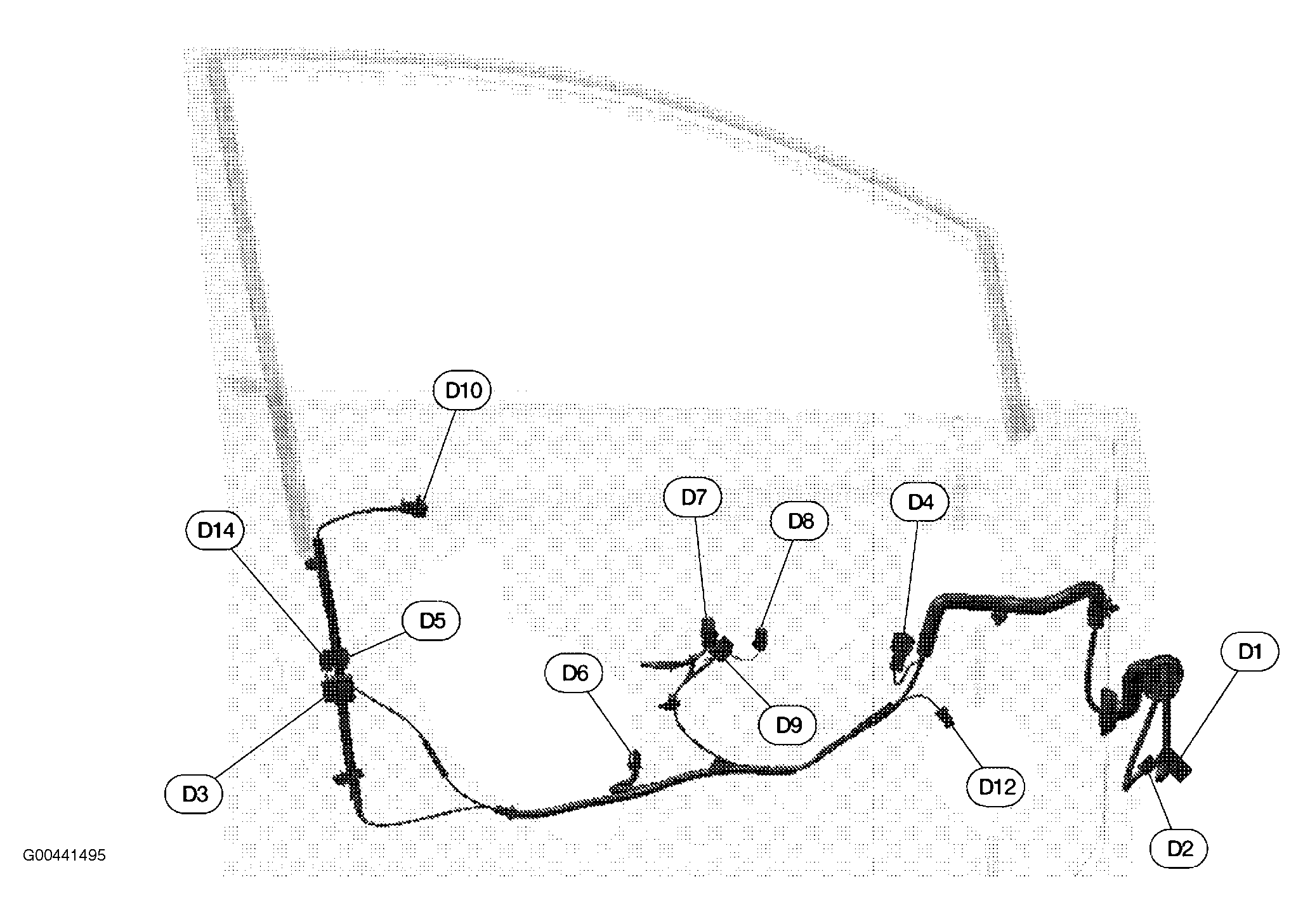

Fig 14: Driver's Door

G00441495

Courtesy of NISSAN MOTOR CO., U.S.A.

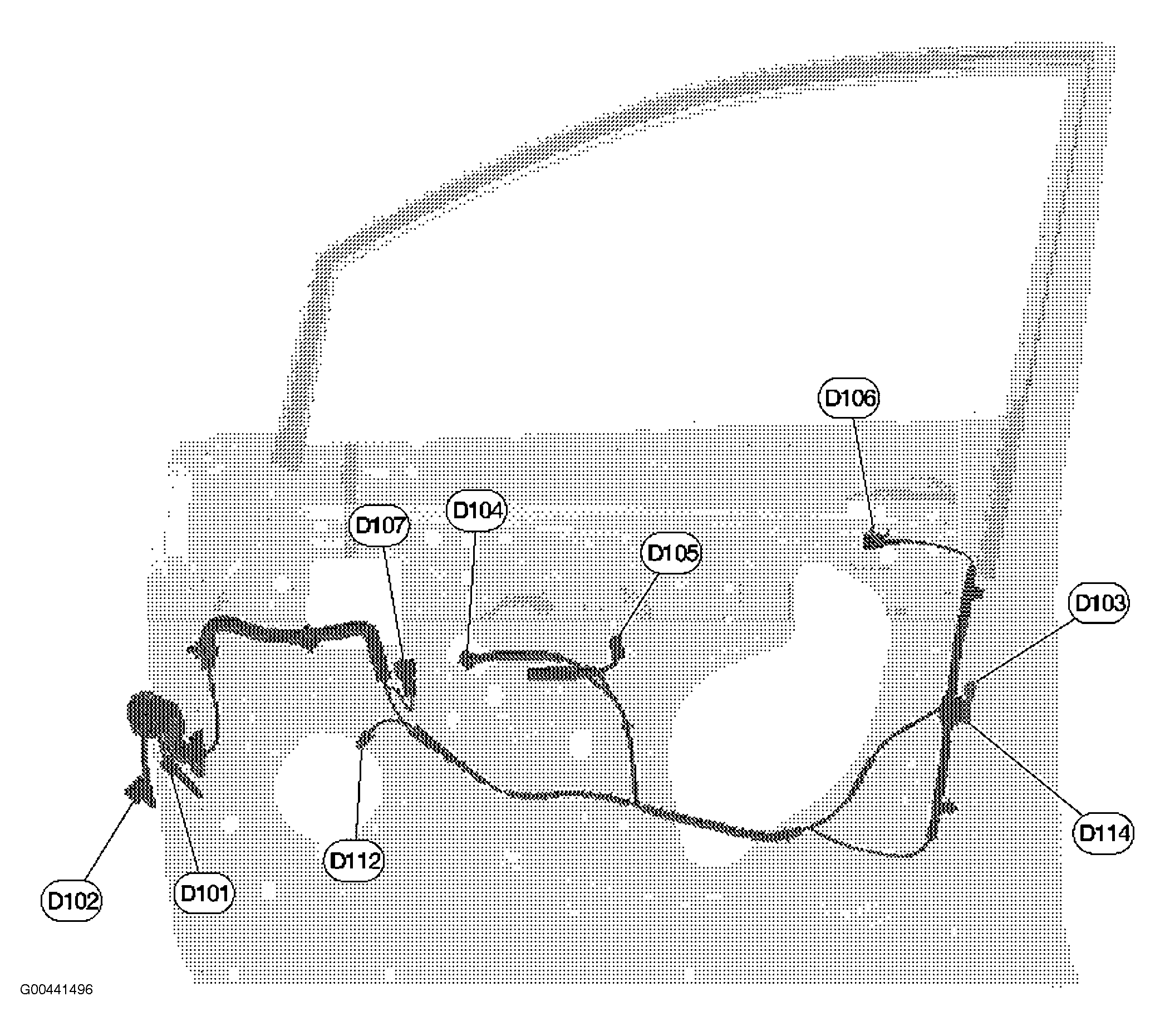

Fig 15: Front Passenger's Door

G00441496

Courtesy of NISSAN MOTOR CO., U.S.A.

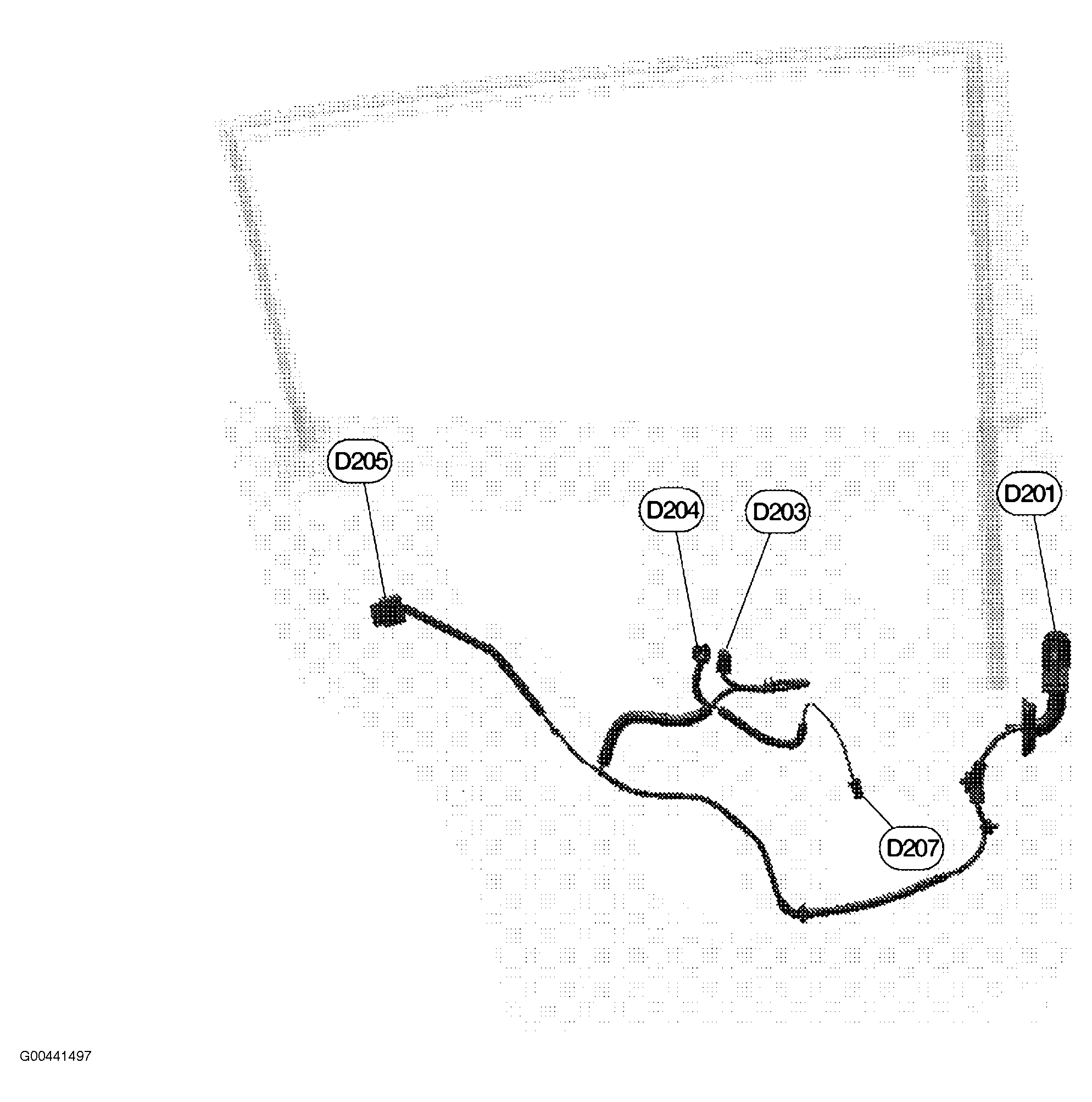

Fig 16: Left Rear Door

G00441497

Courtesy of NISSAN MOTOR CO., U.S.A.

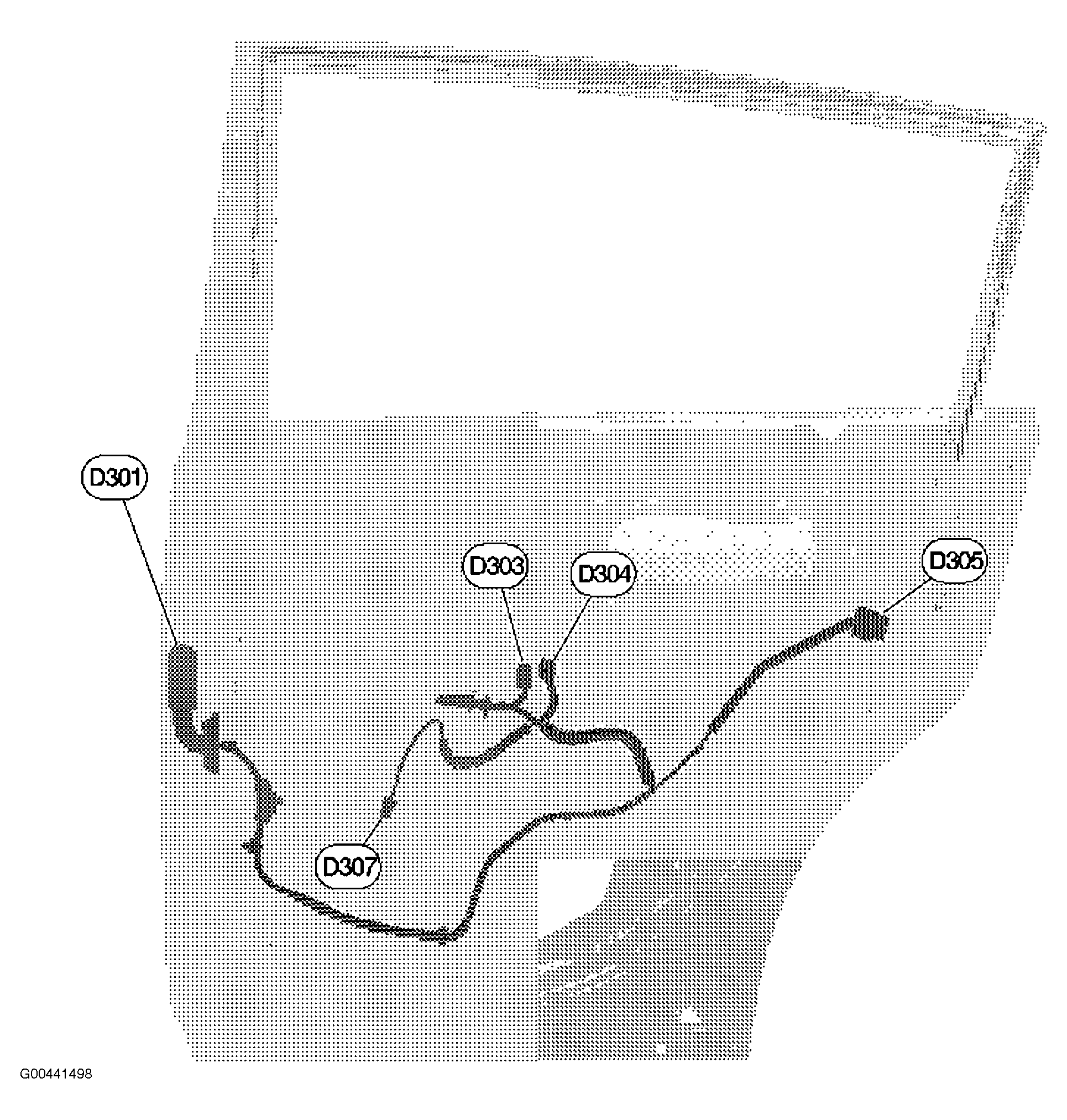

Fig 17: Right Rear Door

G00441498

Courtesy of NISSAN MOTOR CO., U.S.A.

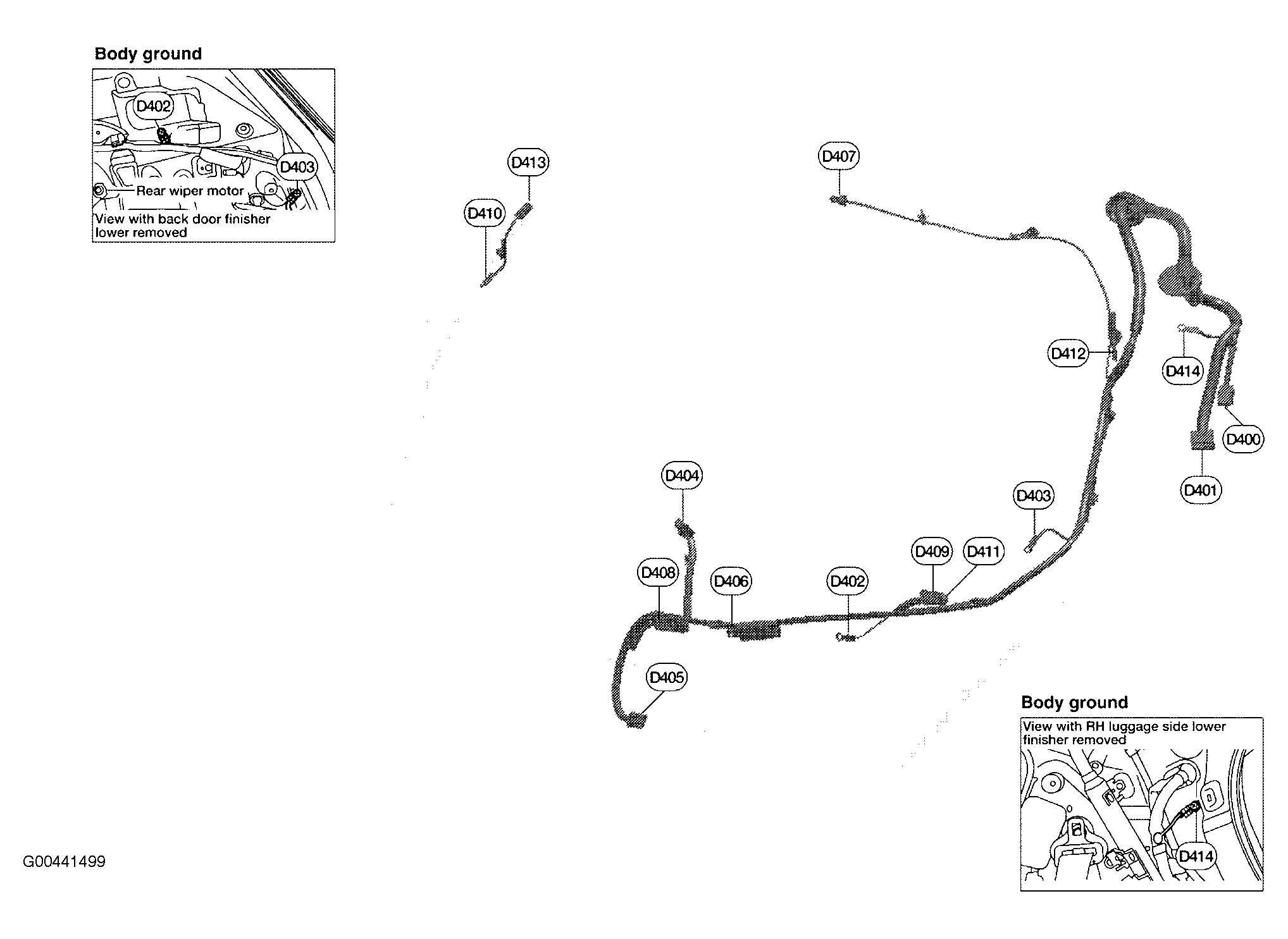

Fig 18: Back Door

G00441499

Courtesy of NISSAN MOTOR CO., U.S.A.

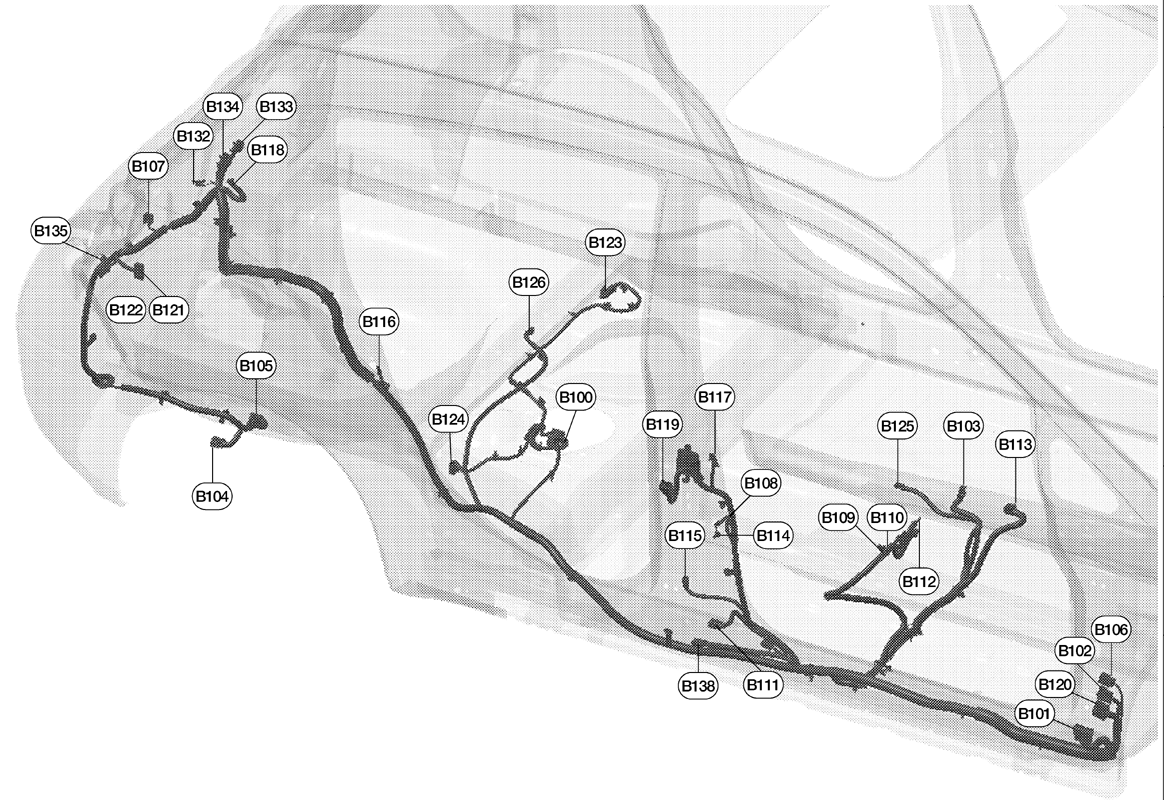

Fig 19: Right Side Of Vehicle (Hatchback)

G00475669

Courtesy of NISSAN MOTOR CO., U.S.A.

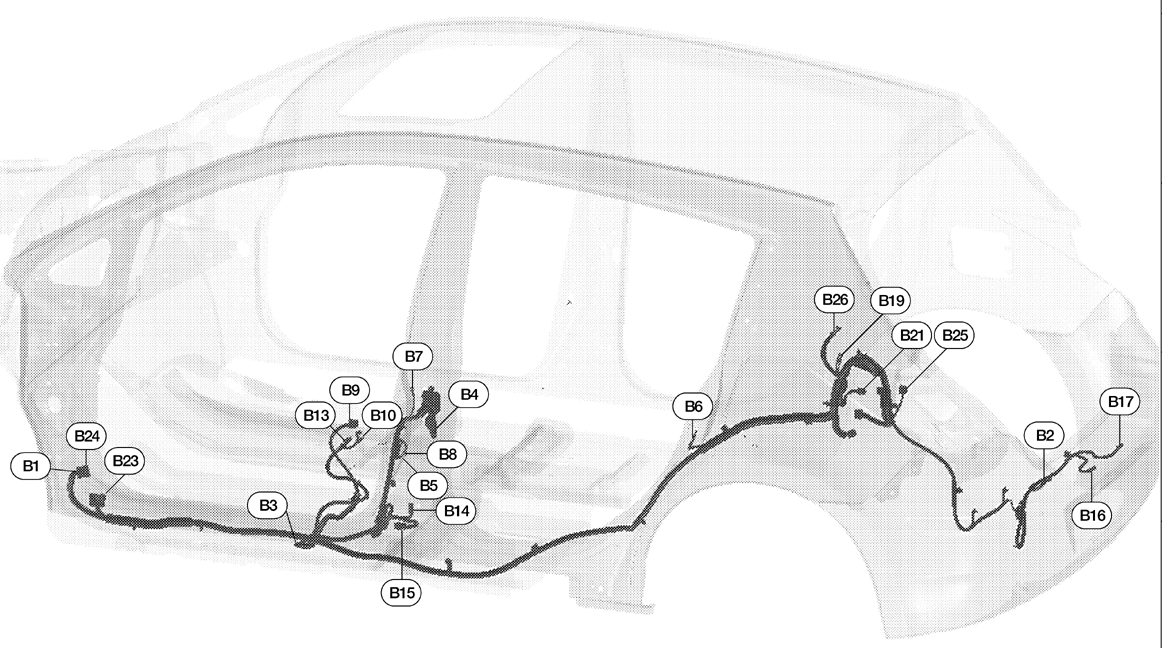

Fig 20: Left Side Of Vehicle (Hatchback)

G00475667

Courtesy of NISSAN MOTOR CO., U.S.A.
