Oil Pump Fitting Bolt: Components

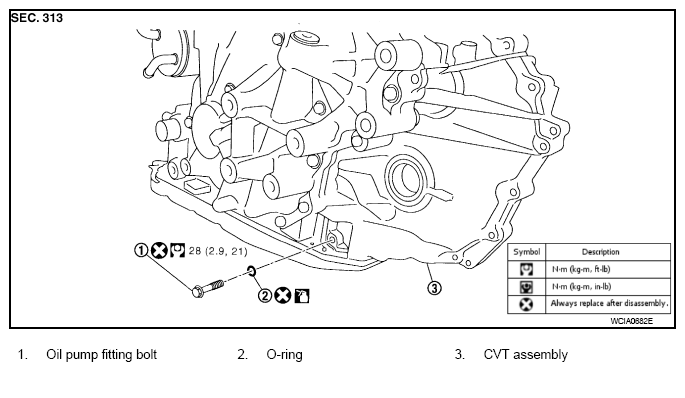

Fig 1: Oil Pump Fitting Bolt Replacement Components With Torque Specifications

Courtesy of NISSAN MOTOR CO., U.S.A.

CAUTION:

Do not reuse O-ring.
Apply CVT fluid to O-ring.
After installation is complete, check for CVT fluid leakage and CVT fluid level. Refer to "CHECKING CVT FLUID ".
