System - Engine Mechanical & Other

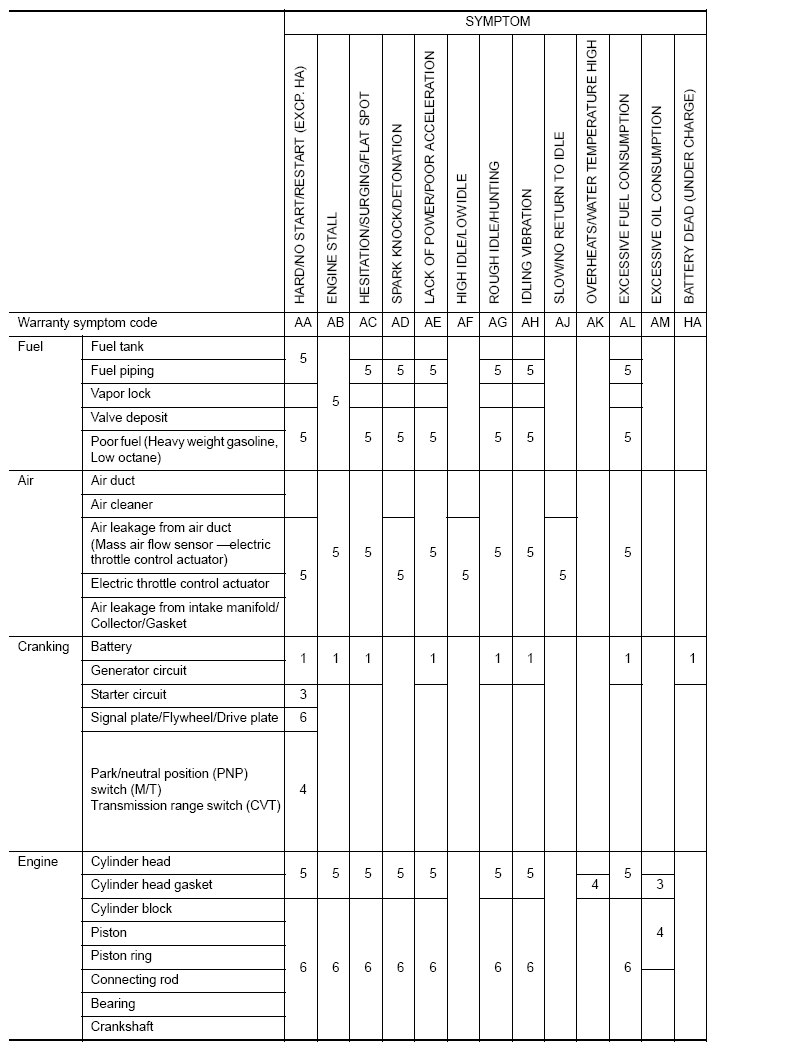

Fig 1: Symptom Matrix Chart - Engine Mechanical
G06551529Courtesy of NISSAN MOTOR CO., U.S.A.

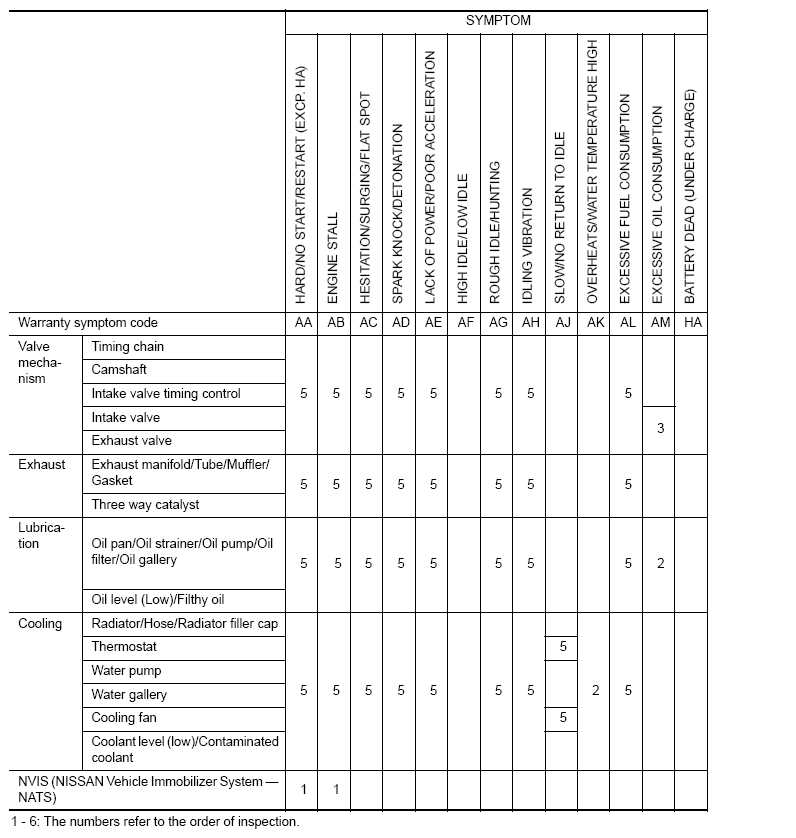

Fig 2: Symptom Matrix Chart - Engine Mechanical
G06551530Courtesy of NISSAN MOTOR CO., U.S.A.
