Disassembly and Assembly: Disassembly

  1. Remove seat. Refer to "REMOVAL AND INSTALLATION ".
  2. Remove the recliner lever and lifter level (if equipped).
  3. Remove the inner and outer front seat cushion finishers.
    NOTE: Remove the seat cushion lower outer finisher screw in order to remove the seat cushion lower outer finisher, if equipped.

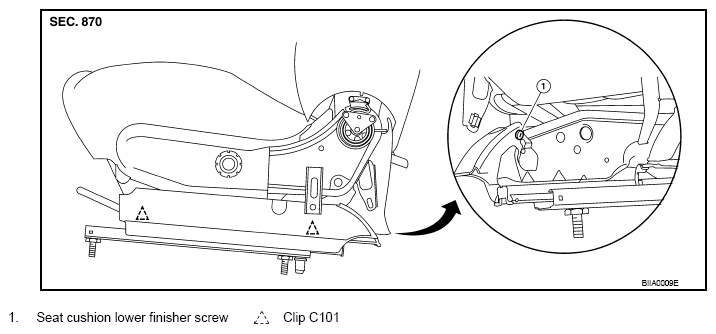

    Fig 1: Identifying Seat Cushion Lower Outer Finisher Screw
    G06553323Courtesy of NISSAN MOTOR CO., U.S.A.
  4. Remove the air bag harness clips.
  5. Remove the seat cushion retainers to separate the trim cover from the pad.
