Removal and Installation: Notes

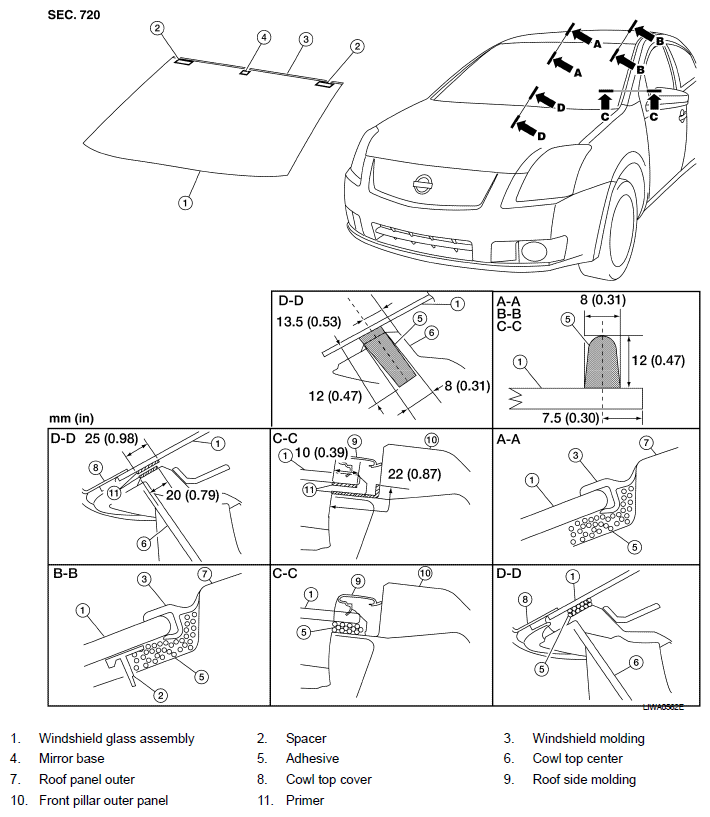

Fig 1: Identifying Windshield Glass Dimension

G06553081

Courtesy of NISSAN MOTOR CO., U.S.A.
