Home
>>
Nissan-Datsun
>>
2010
>>
Rogue SL, AWD
>>
Repair and Diagnosis
>>
Steering
>>
Power Steering
>>
Steering System
>>
Removal And Installation
>>
Steering Wheel
>>
Exploded View
Exploded View

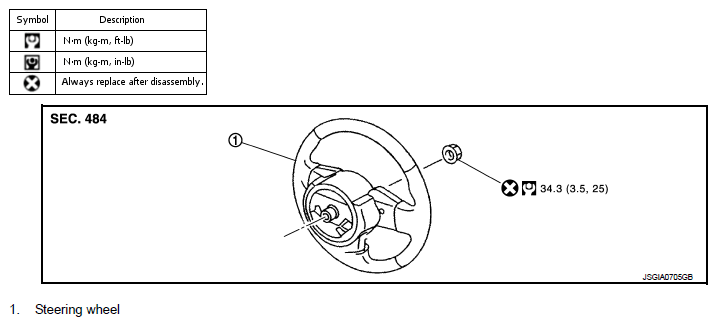

Fig 1: Steering Wheel With Torque Specifications
Courtesy of NISSAN MOTOR CO., U.S.A.
Refer to "
COMPONENTS
" for symbols in the figure.
