Exploded View: Disassembly

Type: LR1110-713C

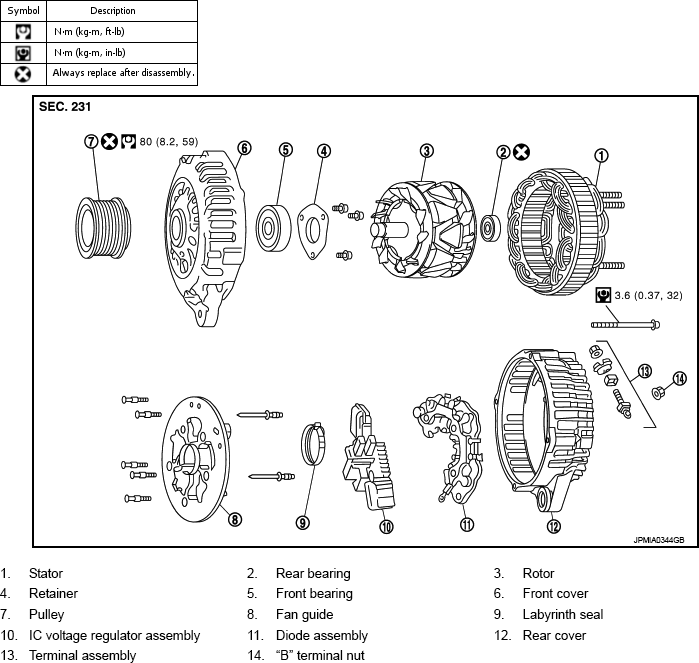

Fig 1: Disassembled View Of Alternator With Torque Specifications

G06587929

Courtesy of NISSAN MOTOR CO., U.S.A.

Refer to "COMPONENTS " for symbols in the figure.
