System Description
>>
Relay Control System
>>
System Diagram
System Diagram

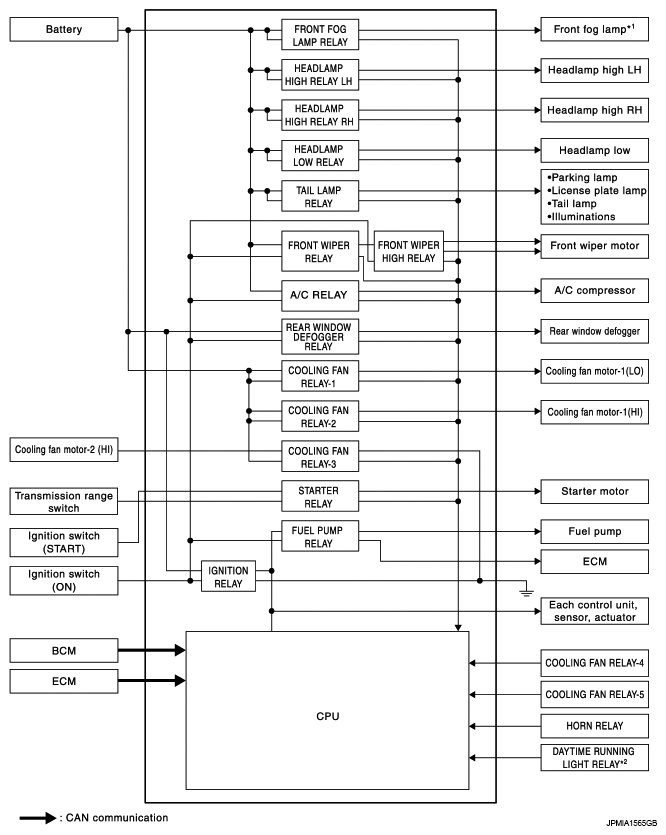

Fig 1: Relay Control - System Diagram
Courtesy of NISSAN MOTOR CO., U.S.A.
NOTE:
*1: With front fog lamp system
*2: With daytime running light system
Courtesy of NISSAN MOTOR CO., U.S.A.
