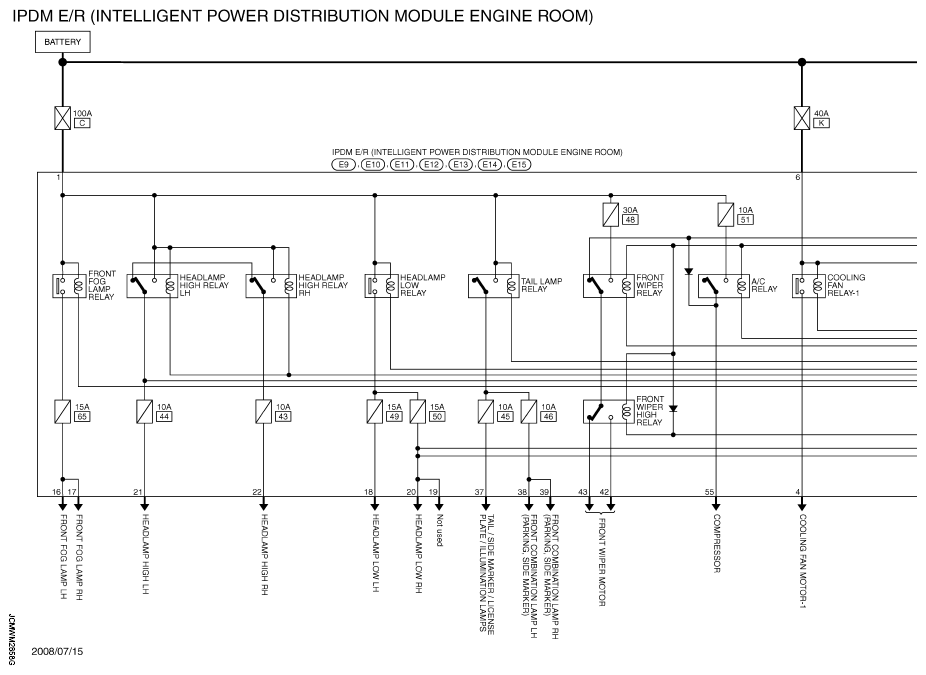

IPDM E/R Relays
IPDM E/R RELAY IDENTIFICATION
| RELAY DESCRIPTION |
|---|
| Front Fog Lamp Relay |
| Headlamp High Relay LH |
| Headlamp High Relay RH |
| Headlamp Low Relay |
| Tail Lamp Relay |
| Front Wiper Relay |
| A/C Relay |
| Cooling Fan Relay - 1 |
| Front Wiper High Relay |
|
CAUTION:
IPDM E/R Integrated Relays Cannot Be Removed.
|

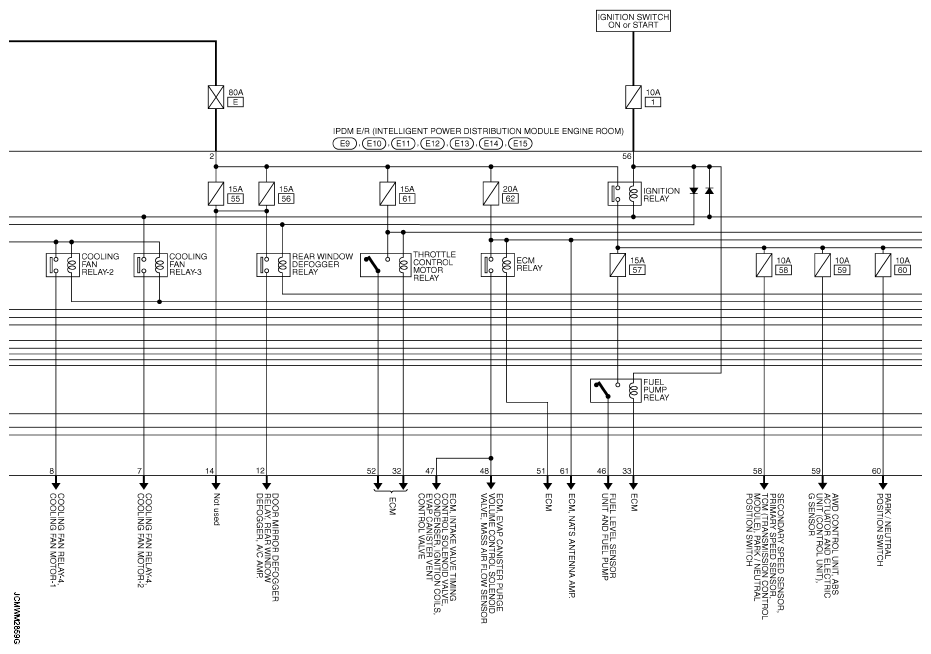

IPDM E/R RELAY IDENTIFICATION
| RELAY DESCRIPTION |
|---|
| Cooling Fan Relay - 2 |
| Cooling Fan Relay - 3 |
| Rear Window Defogger Relay |
| Throttle Control Motor Relay |
| ECM Relay |
| Ignition Relay |
| Fuel Pump Relay |
|
CAUTION:
IPDM E/R Integrated Relays Cannot Be Removed.
|
