Nissan-Datsun
>>
2010
>>
Rogue S, FWD
>>
Repair and Diagnosis
>>
Body & Frame
>>
Windows
>>
Glass & Window System
>>
Removal And Installation
>>
Front Regulator
>>
Exploded View
Exploded View

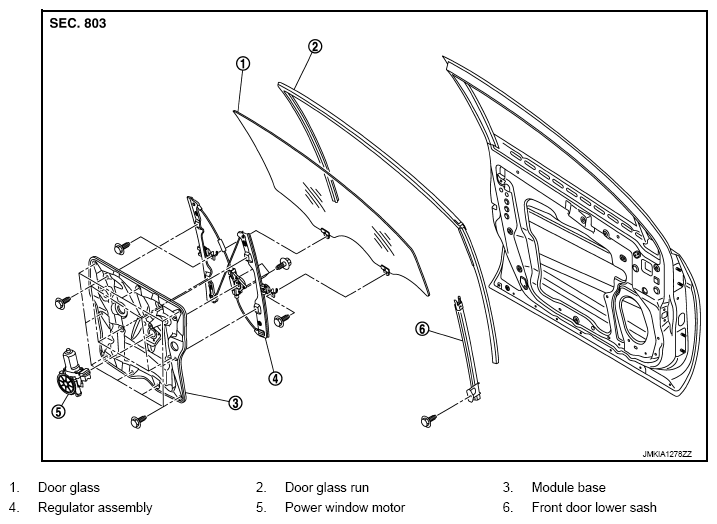

Fig 1: Exploded View Of Front Regulator
Courtesy of NISSAN MOTOR CO., U.S.A.
NOTE:
The door panel on the right is for your reference.
Courtesy of NISSAN MOTOR CO., U.S.A.
