Component Location Graphics

NOTE: Figures may show multiple component locations. Refer to appropriate table for proper figure references.

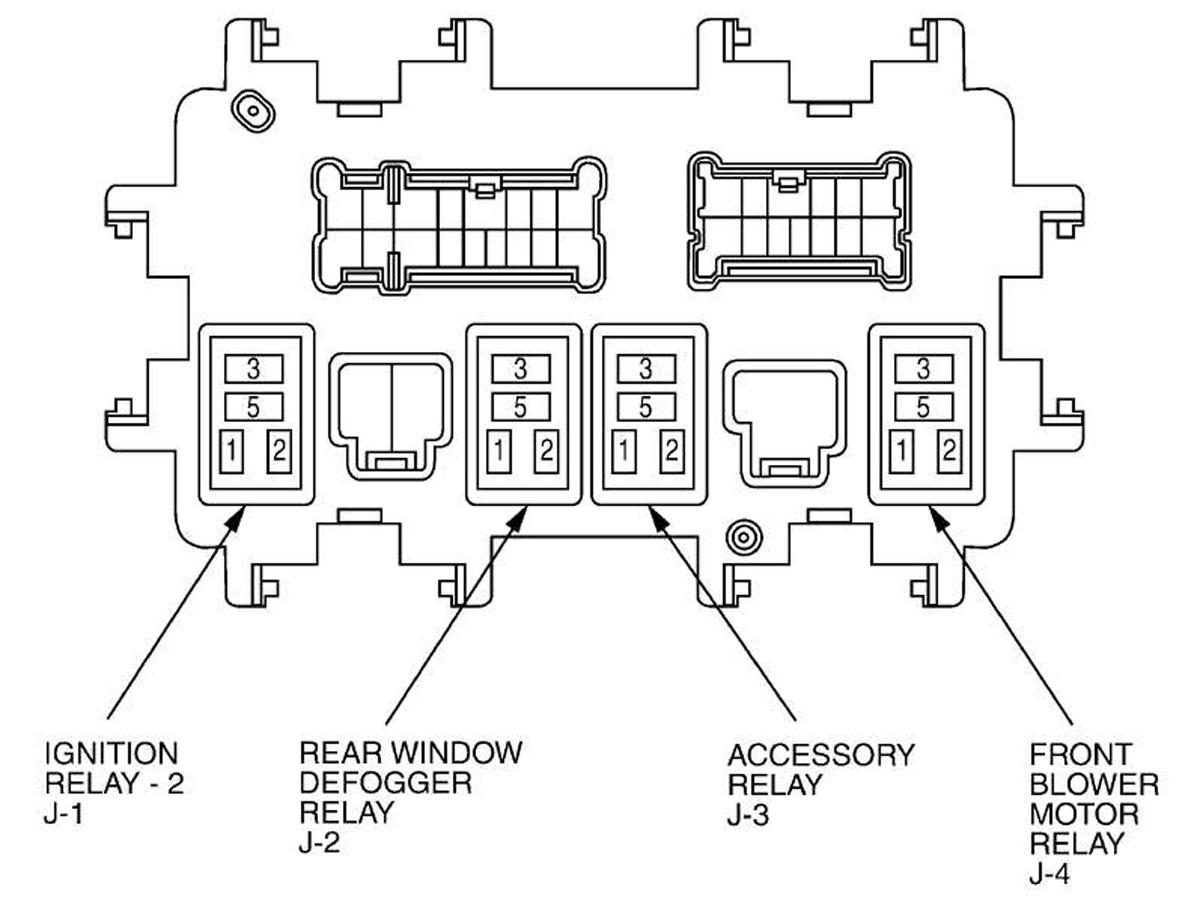

Fig 1: IPDM E/R (Intelligent Power Distribution Module Engine Room)

G00470663

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 2: Dash & Center Console

G00470664

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 3: Engine Compartment

G00470665

Courtesy of NISSAN MOTOR CO., U.S.A.

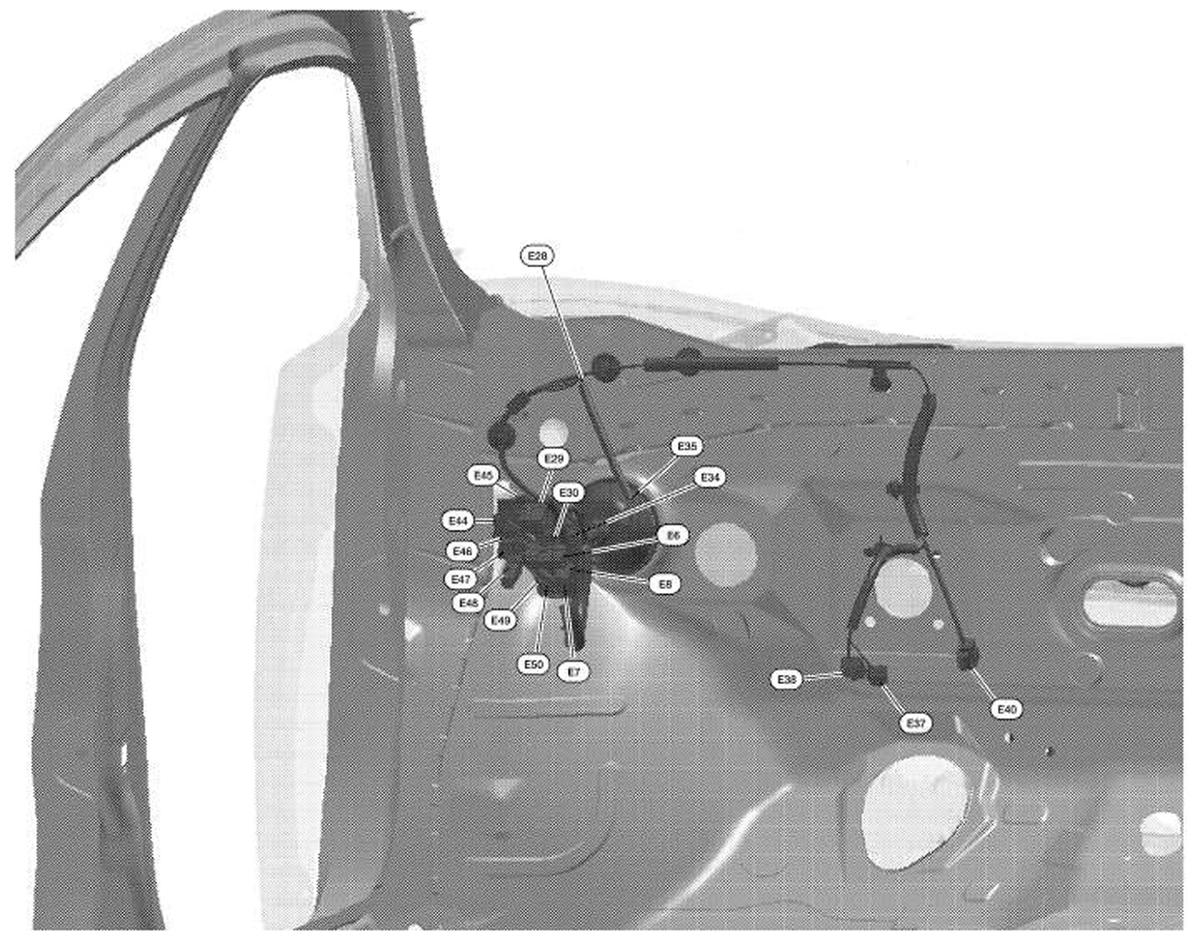

Fig 4: Behind Left Side Of Dash

G00470666

Courtesy of NISSAN MOTOR CO., U.S.A.

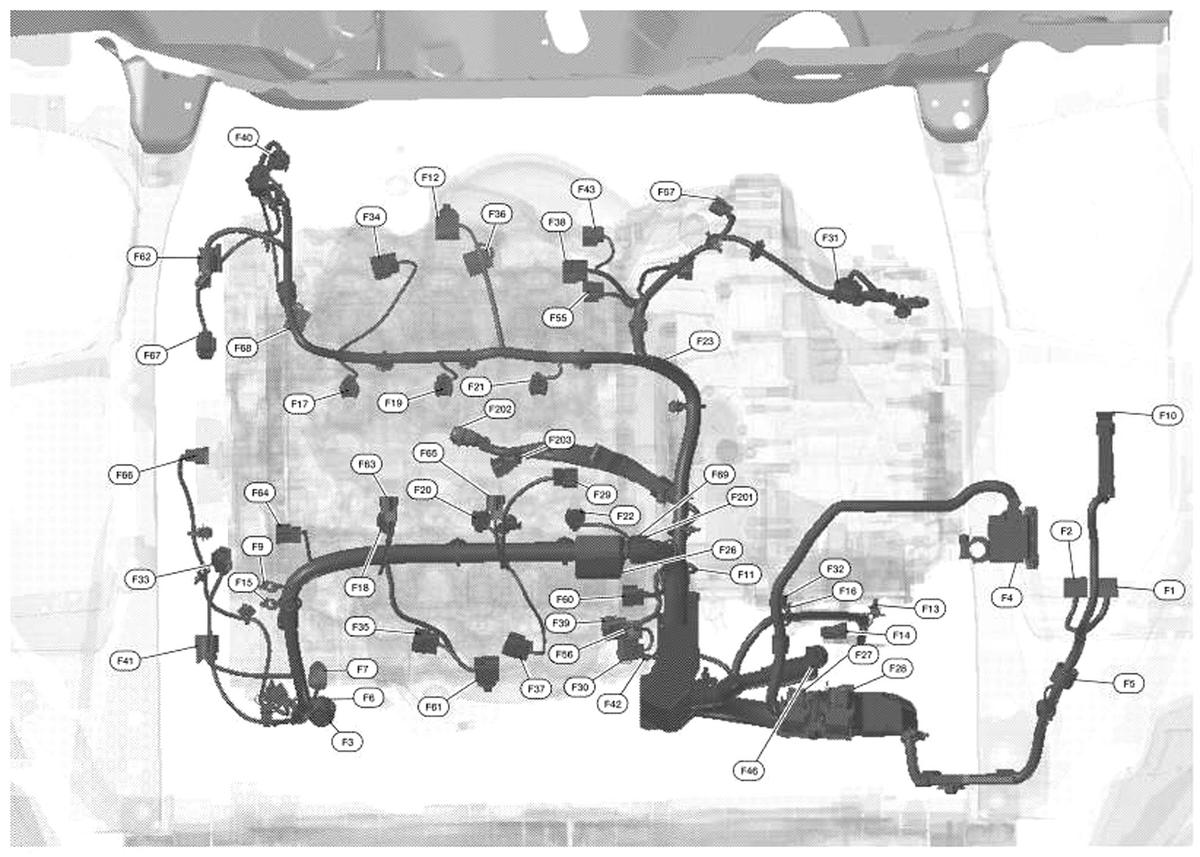

Fig 5: Engine

G00470667

Courtesy of NISSAN MOTOR CO., U.S.A.

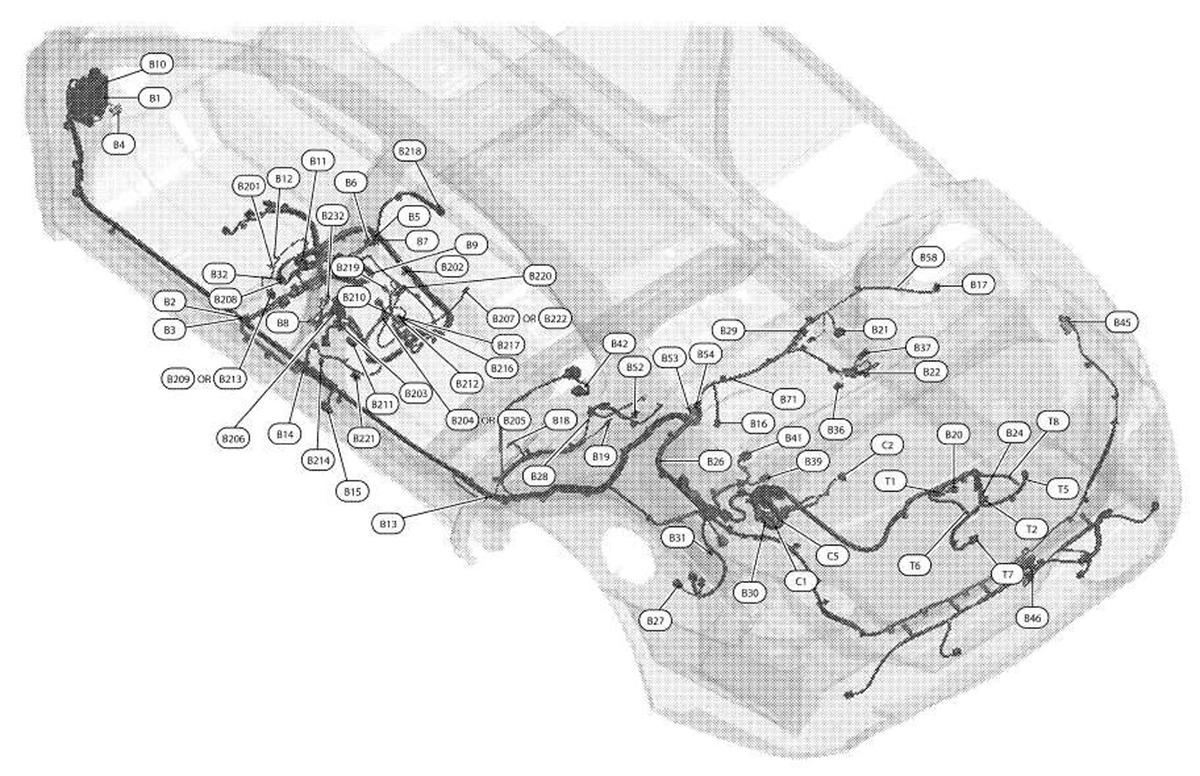

Fig 6: Left Side Of Vehicle

G00470668

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 7: Right Side Of Vehicle

G00470669

Courtesy of NISSAN MOTOR CO., U.S.A.

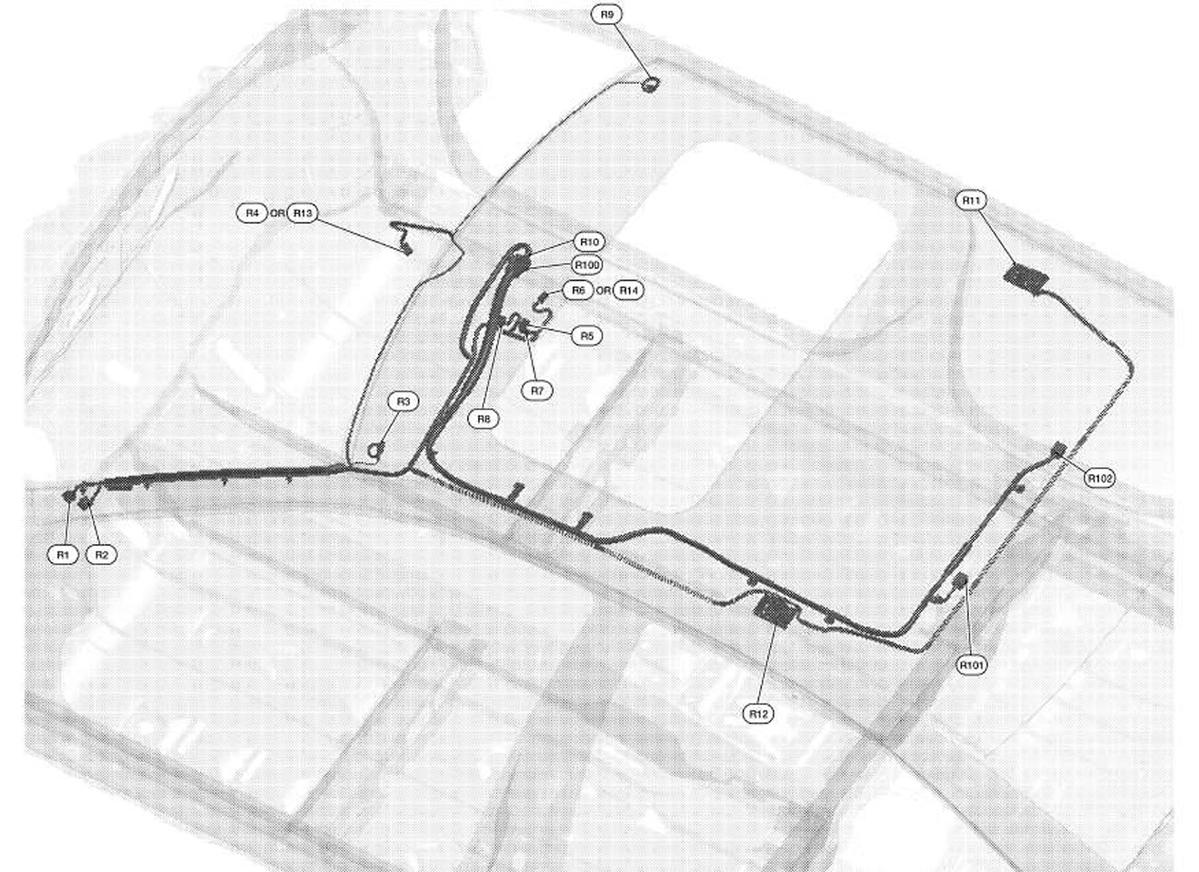

Fig 8: Roof

G00470670

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 9: Driver's Door

G00470671

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 10: Front Passenger's Door

G00470672

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 11: Left Rear Door

G00470673

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 12: Right Rear Door

G00470674

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 13: Left Side Of Engine Compartment

G00470675

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 14: Lower Left End Of Dash

G00470676

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 15: Lower Left Side Of Dash

G00470677

Courtesy of NISSAN MOTOR CO., U.S.A.

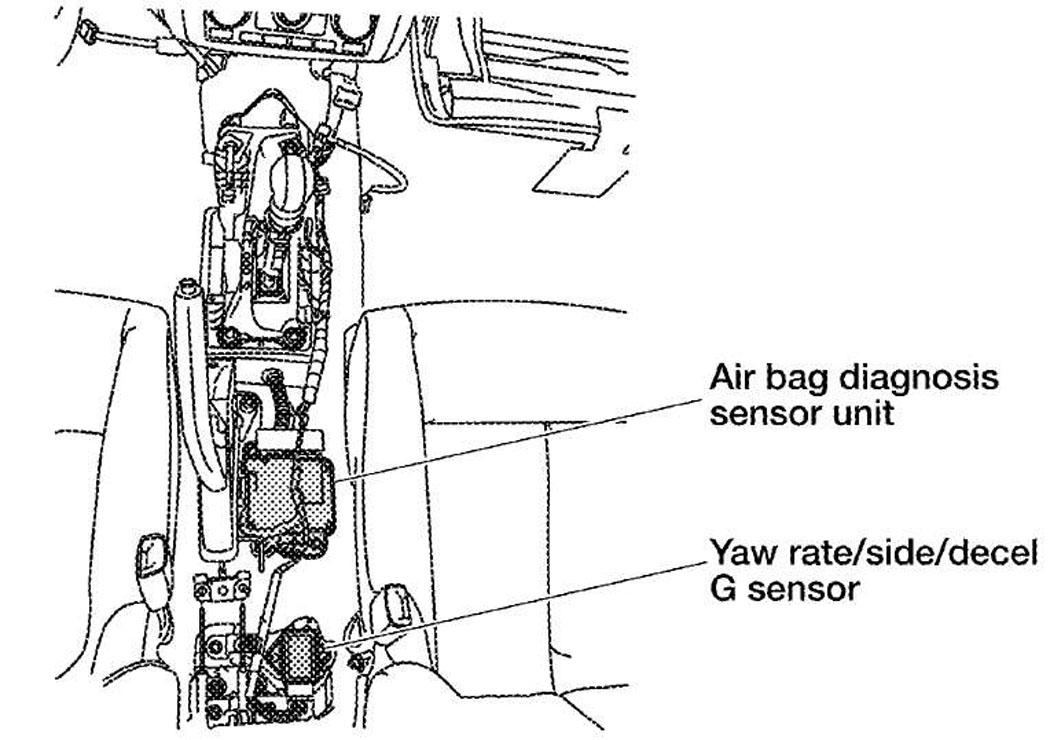

Fig 16: Under Center Console

G00470678

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 17: Right End Of Dash

G00470679

Courtesy of NISSAN MOTOR CO., U.S.A.

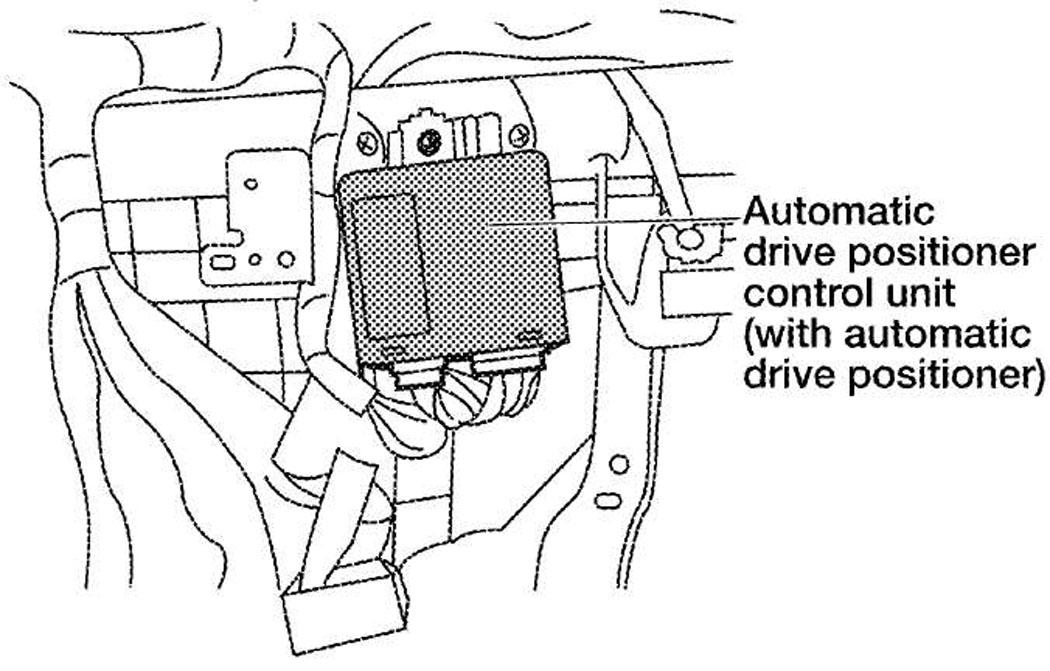

Fig 18: Right Side Of Dash

G00470680

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 19: Left Side Of Dash

G00470681

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 20: Luggage Compartment

G00475370

Courtesy of NISSAN MOTOR CO., U.S.A.
