Removal and Installation: Removal

  1. Remove the power window main switch finisher (2) from the front door finisher LH. Refer to "REMOVAL AND INSTALLATION ".

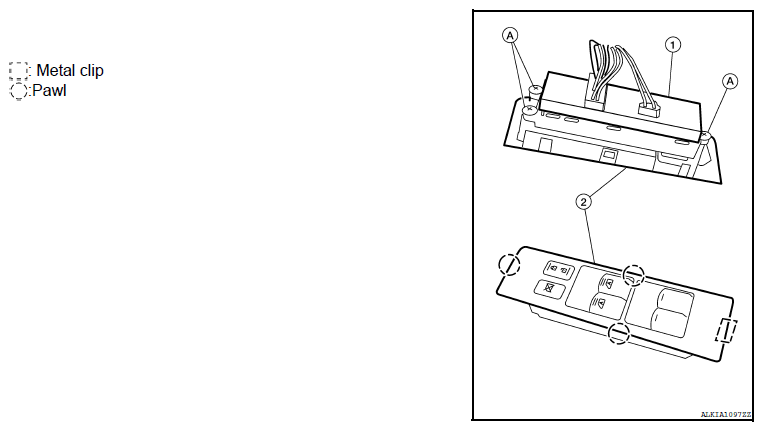

    Fig 1: Identifying Power Window Main Switch Finisher And Front Door Finisher LH
    G06645531Courtesy of NISSAN MOTOR CO., U.S.A.
  2. Remove the three screws (A) from the power window main switch (1), then separate from the finisher (2).
