Nissan-Datsun
>>
2010
>>
Cube Krom
>>
Repair and Diagnosis
>>
Electrical
>>
Body Electrical
>>
Power Control System
>>
IPDM E/R (With I-Key)
>>
System Description
>>
Relay Control System
>>
System Diagram
System Diagram

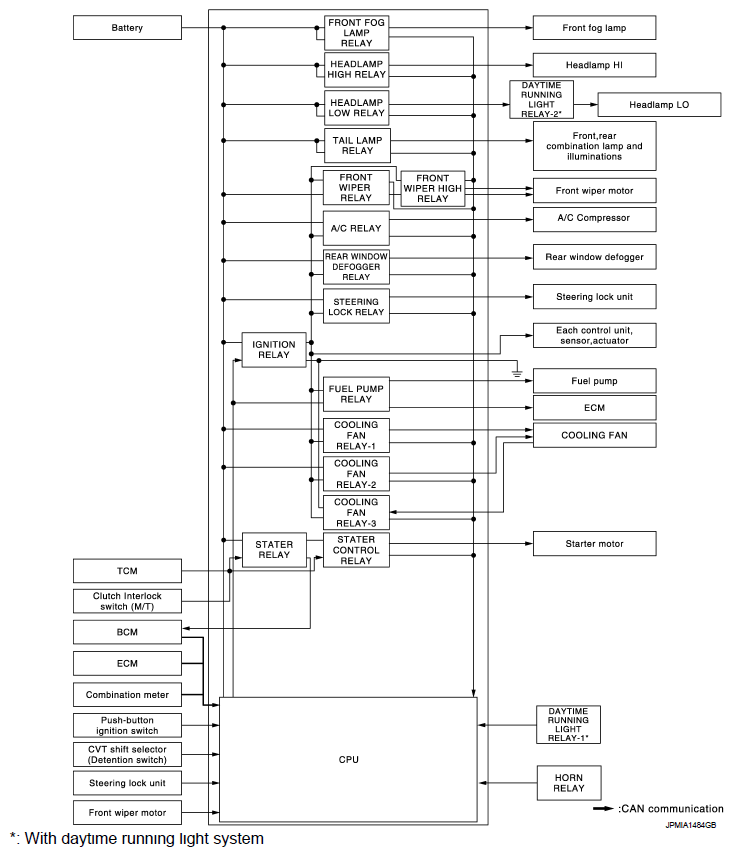

Fig 1: Relay Control System - System Diagram
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
