Wiring Diagram - BCM -
Wiring Diagram - BCM -

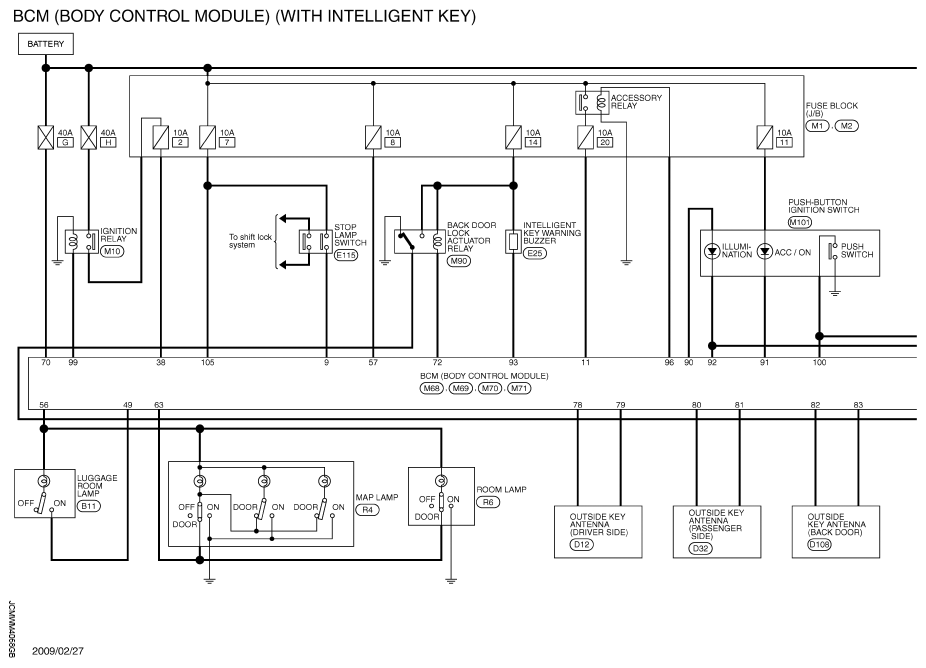

Fig 1: Body Control Module (With Intelligent Key) - Wiring Diagram (1 Of 4)
Courtesy of NISSAN MOTOR CO., U.S.A.

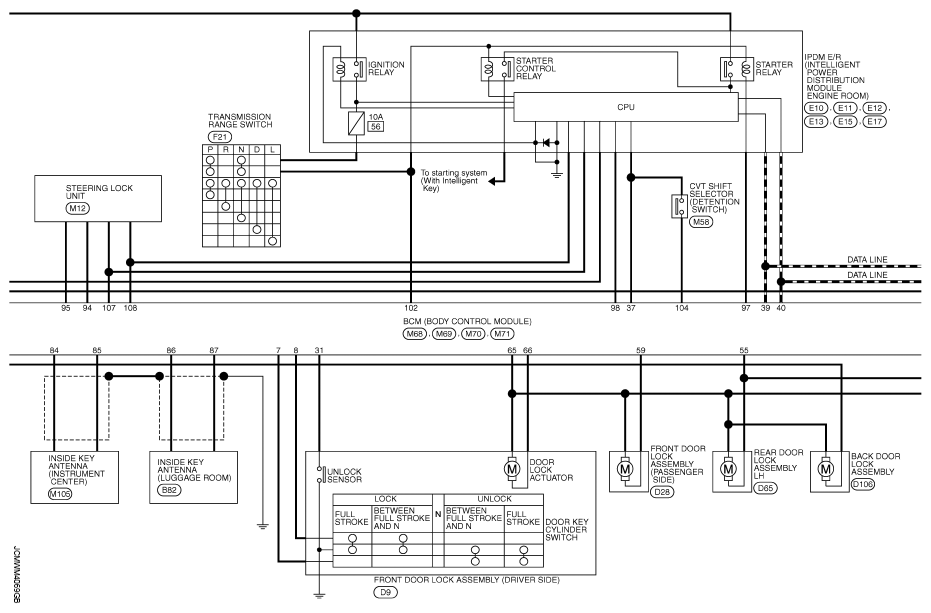

Fig 2: Body Control Module (With Intelligent Key) - Wiring Diagram (2 Of 4)
Courtesy of NISSAN MOTOR CO., U.S.A.

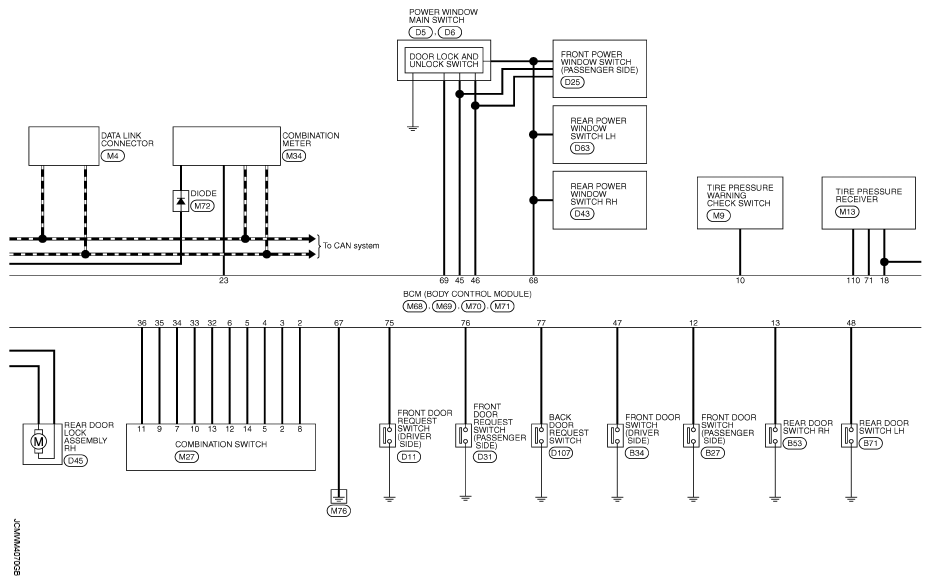

Fig 3: Body Control Module (With Intelligent Key) - Wiring Diagram (3 Of 4)
Courtesy of NISSAN MOTOR CO., U.S.A.

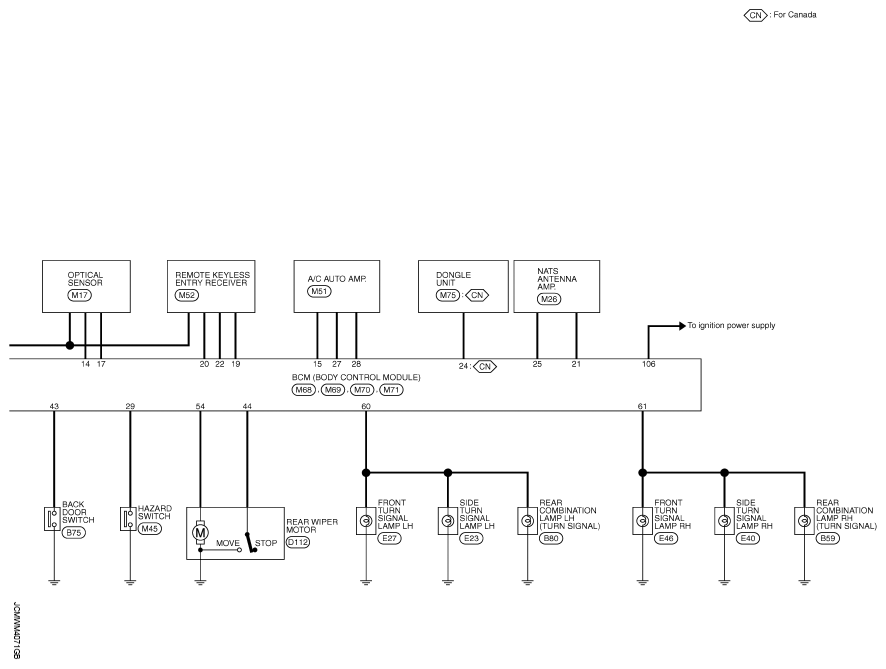

Fig 4: Body Control Module (With Intelligent Key) - Wiring Diagram (4 Of 4)
Courtesy of NISSAN MOTOR CO., U.S.A.

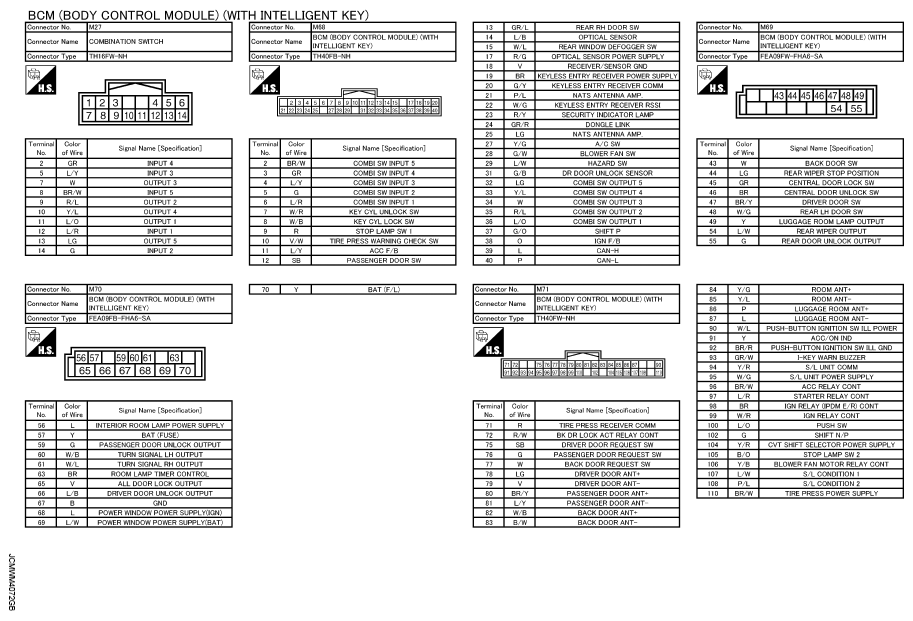

Fig 5: Identifying Body Control Module Connectors - With Intelligent Key
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
