Electronic Controlled Engine Mount Line Drawing

WARNING: This page is about a different car, the 2011 Nissan Altima. However, it is still accessible from the selected car via links, so may be relevant.
Fig 1: Identifying Electronic Controlled Engine Mount Line Drawing (1 Of 2)
G06997324Courtesy of NISSAN MOTOR CO., U.S.A.

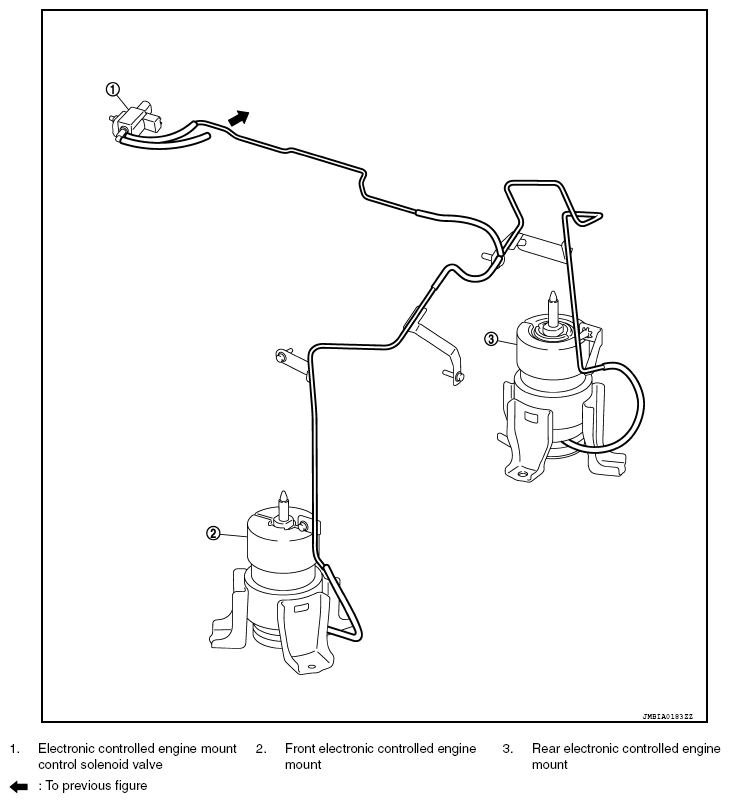

Fig 2: Identifying Electronic Controlled Engine Mount Line Drawing (2 Of 2)
G06997325Courtesy of NISSAN MOTOR CO., U.S.A.
NOTE: Do not use soapy water or any type of solvent while installing vacuum hose.
