Shift Control Components

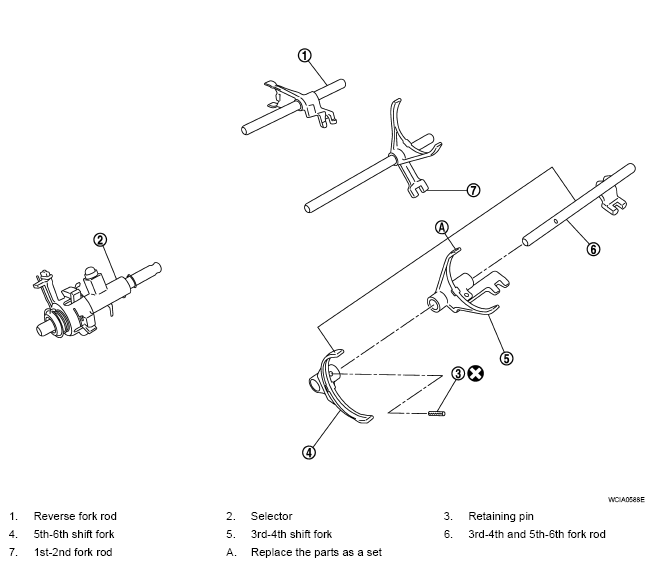

Fig 1: Identifying Shift Control Components
G04812740Courtesy of NISSAN MOTOR CO., U.S.A.
