Gear Components

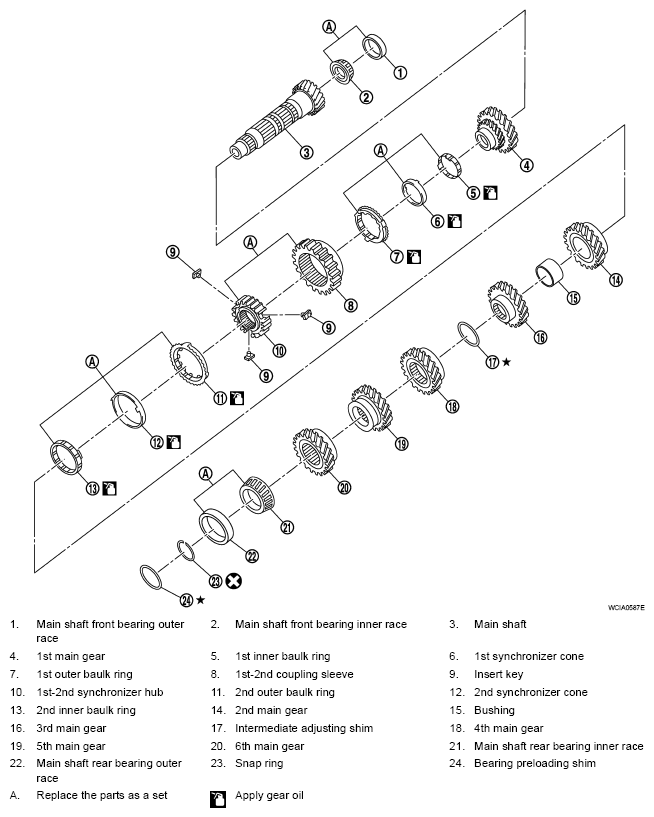

Fig 1: Identifying Gear Components (1 Of 3)

Courtesy of NISSAN MOTOR CO., U.S.A.

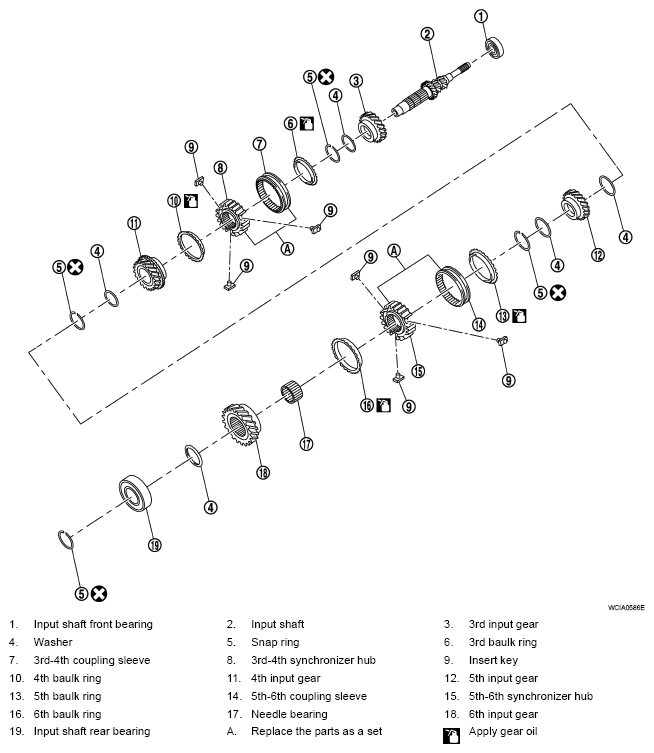

Fig 2: Identifying Gear Components (2 Of 3)

Courtesy of NISSAN MOTOR CO., U.S.A.

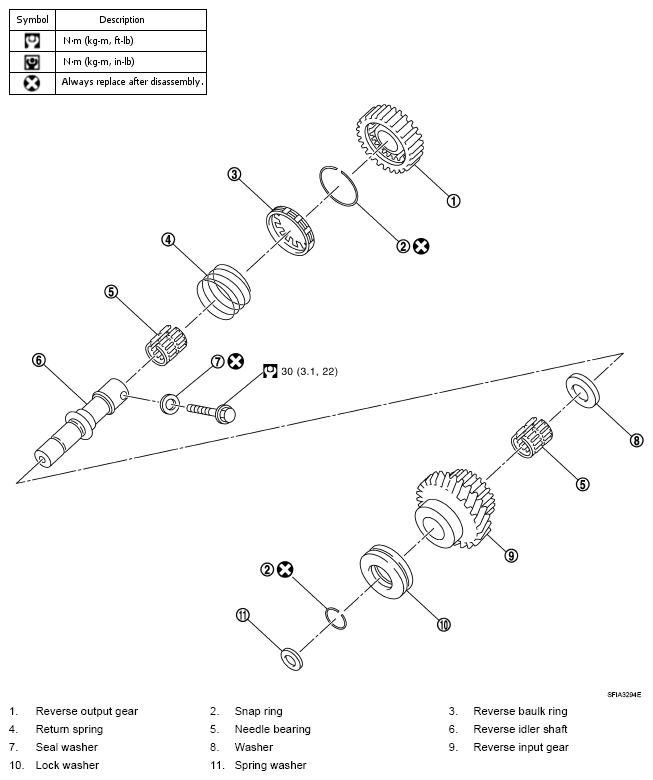

Fig 3: Gear Replacement Components With Torque Specifications (3 Of 3)

Courtesy of NISSAN MOTOR CO., U.S.A.
