Description
>>
Cross-Sectional View
>>
Notes
Cross-Sectional View: Notes

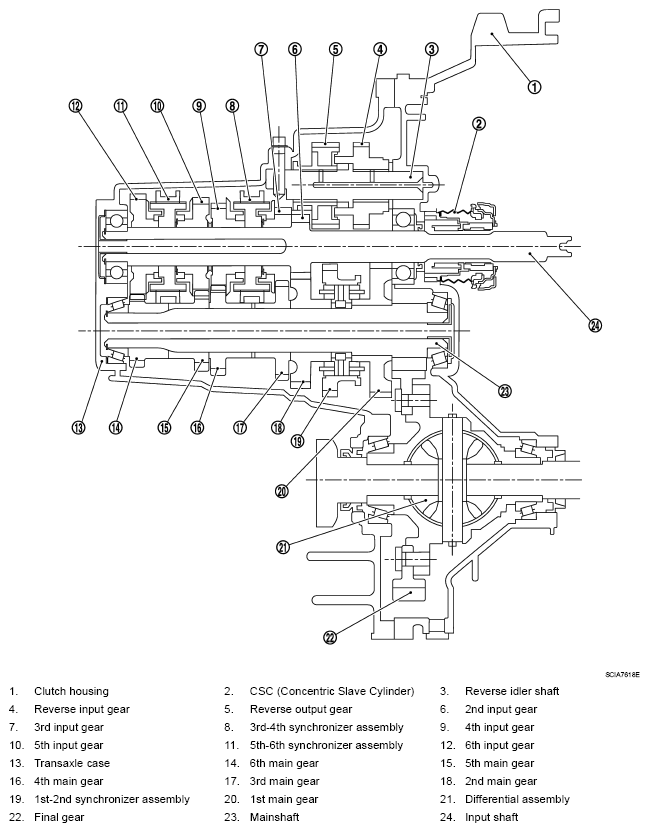

Fig 1: Identifying Transaxle Cross-Sectional View
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
