Components of Control Device and Cable

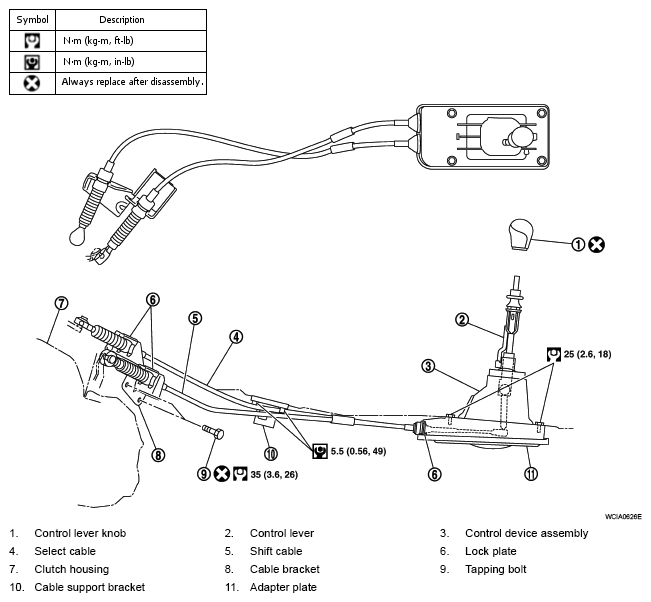

Fig 1: Replacement Components Of Control Device And Cable With Torque Specifications

G04812727

Courtesy of NISSAN MOTOR CO., U.S.A.
