DTC P0117, P0118 ECT Sensor: Wiring Diagram

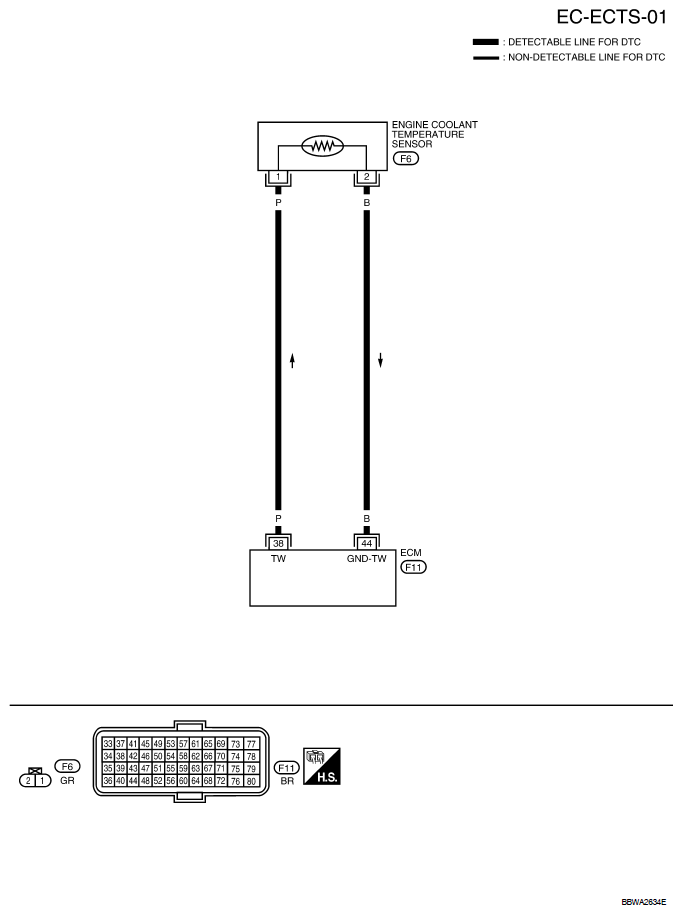

Fig 1: ECT Sensor - Wiring Diagram

G05932608

Courtesy of NISSAN MOTOR CO., U.S.A.
