DTC P0112, P0113 IAT Sensor: Wiring Diagram

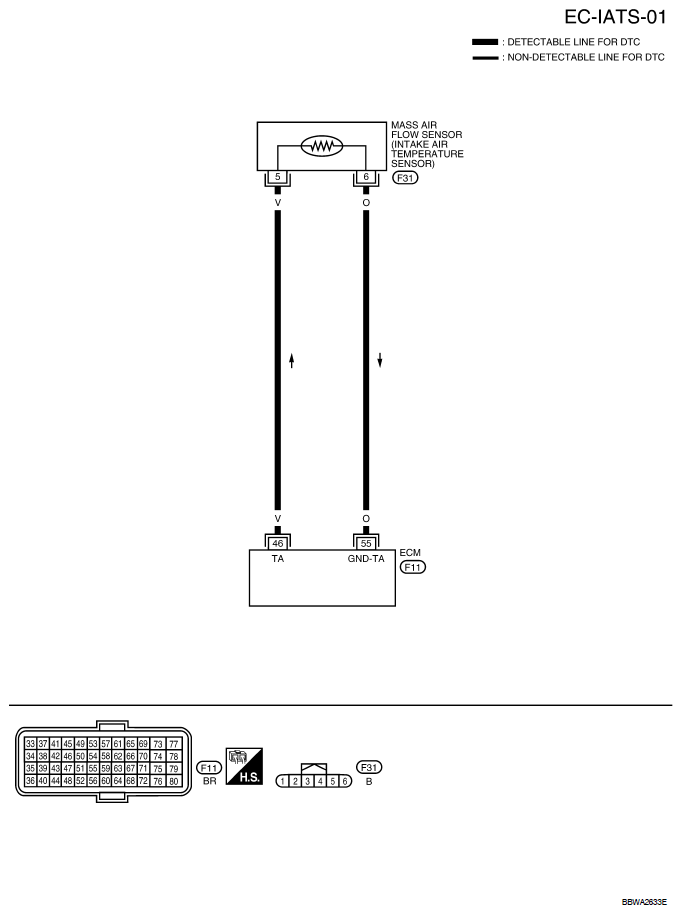

Fig 1: IAT Sensor - Wiring Diagram

G05932600

Courtesy of NISSAN MOTOR CO., U.S.A.
