Removal and Installation: Components

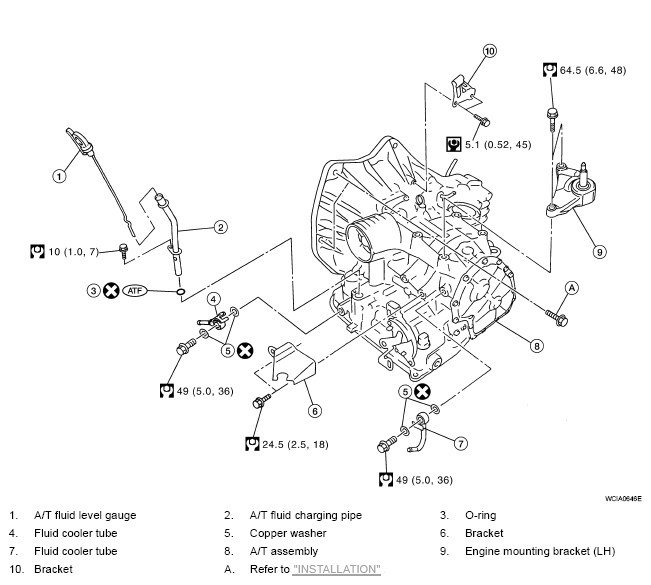

Fig 1: Transaxle Assembly Replacement Components With Torque Specifications

G04813222

Courtesy of NISSAN MOTOR CO., U.S.A.
