Home >> Nissan-Datsun >> 2009 >> Versa Base, Automatic >> Repair and Diagnosis >> Transmission >> Automatic Transmission >> Repair For Component Parts >> Control Valve Upper Body >> Components

Control Valve Upper Body: Components

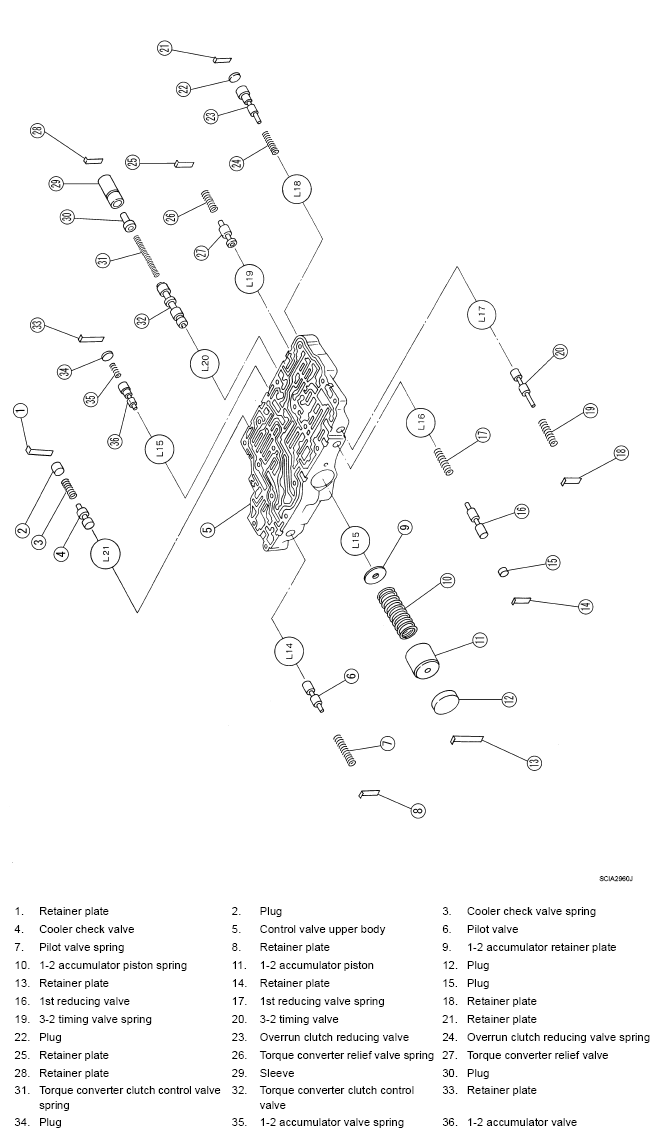

Fig 1: Exploded View Of Control Valve Upper Body Components

G04813369

Courtesy of NISSAN MOTOR CO., U.S.A.
