Control Valve Lower Body: Components

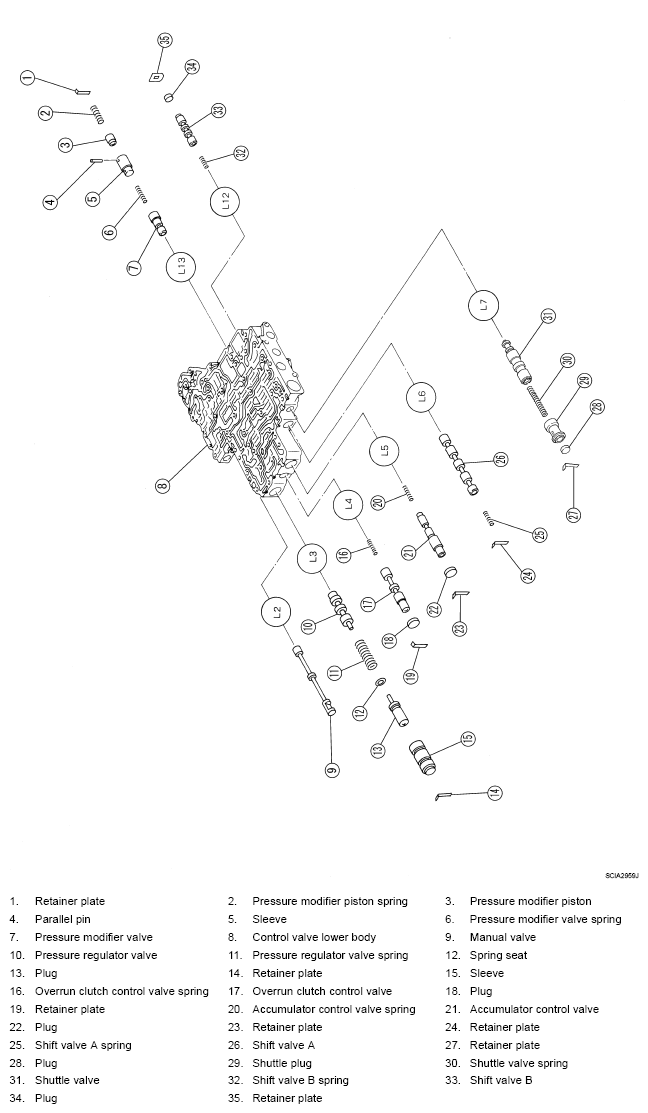

Fig 1: Exploded View Of Control Valve Lower Body Components

G04813381

Courtesy of NISSAN MOTOR CO., U.S.A.
