Home >> Nissan-Datsun >> 2009 >> Versa Base, Automatic >> Repair and Diagnosis >> Transmission >> Automatic Transmission >> On-Vehicle Service >> Control Valve Assembly and Accumulators >> Components

Control Valve Assembly and Accumulators: Components

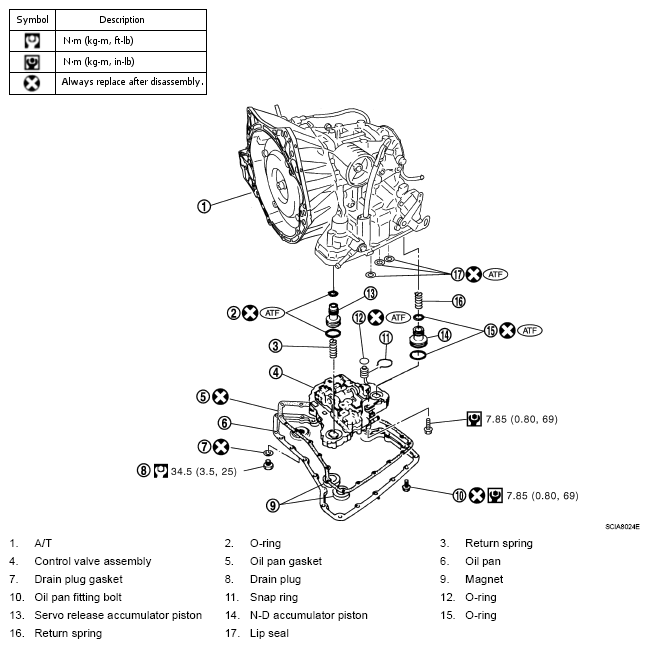

Fig 1: Exploded View Of Control Valve Assembly And Accumulators Components With Torque Specifications

G04813195

Courtesy of NISSAN MOTOR CO., U.S.A.
