Centrifugal Cancel Mechanism: Structure/Operation: Notes

A centrifugal cancel housing is provided to cancel the clutch housing pressure. The centrifugal cancel housing is always filled with ATF from the dedicated fluid passage of oil pump.

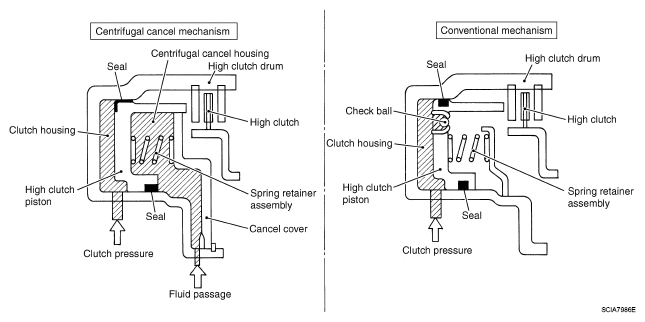

Fig 1: Centrifugal Cancel Mechanism Function Diagram
G04812905Courtesy of NISSAN MOTOR CO., U.S.A.
