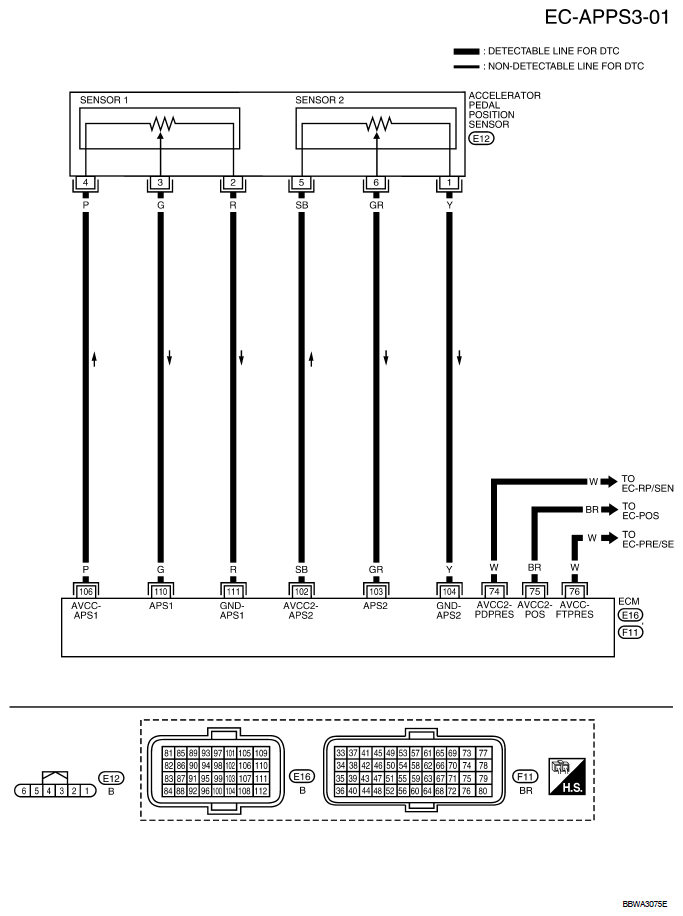

DTC P2138 App Sensor: Wiring Diagram
Specification data are reference values and are measured between each terminal and ground.
CAUTION:
Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in damage to the ECM's transistor. Use a ground other than ECM terminals, such as the ground.
VOLTAGE REFERENCE CHART
| TERMINAL NO. | WIRE COLOR | ITEM | CONDITION | DATA (DC Voltage) |
|---|---|---|---|---|
| 74 | W | Sensor power supply (Refrigerant pressure sensor) | [Ignition switch: ON] | Approximately 5V |
| 75 | BR | Sensor power supply [Crankshaft position sensor (POS)] | [Ignition switch: ON] | Approximately 5V |
| 76 | W | EVAP control system pressure sensor power supply | [Ignition switch: ON] | Approximately 5V |
| 102 | SB | Sensor power supply (APP sensor 2) | [Ignition switch: ON] | Approximately 5V |
| 103 | GR | Accelerator pedal position sensor 2 | [Ignition switch: ON]
|
0.3 - 0.6V |
[Ignition switch: ON]
|
1.95 - 2.4V | |||
| 104 | Y | Sensor ground (APP sensor 2) | [Engine is running]
|
Approximately 0V |
| 106 | P | Sensor power supply (APP sensor 1) | [Ignition switch: ON] | Approximately 5V |
| 110 | G | Accelerator pedal position sensor 1 | [Ignition switch: ON]
|
0.6 - 0.9V |
[Ignition switch: ON]
|
3.9 - 4.7V | |||
| 111 | R | Sensor ground (APP sensor 1) | [Engine is running]
|
Approximately 0V |
