DTC P2135 TP Sensor: Wiring Diagram

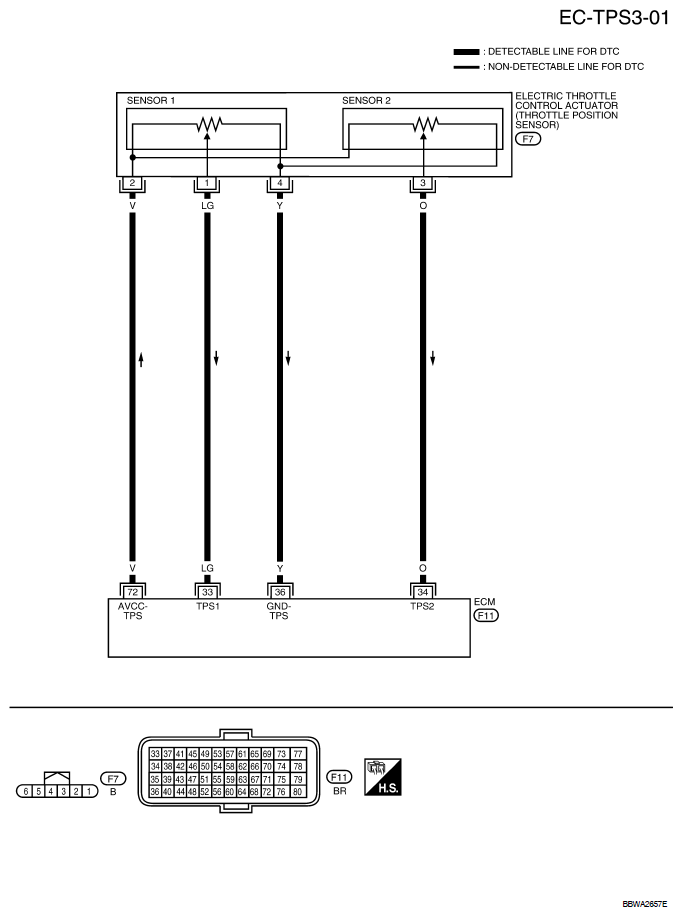

Fig 1: TP Sensor - Wiring Diagram

Courtesy of NISSAN MOTOR CO., U.S.A.

Specification data are reference values and are measured between each terminal and ground.

CAUTION: Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in damage to the ECM's transistor. Use a ground other than ECM terminals, such as the ground.

VOLTAGE REFERENCE CHART

TERMINAL NO.	WIRE COLOR	ITEM	CONDITION	DATA (DC Voltage)
33	LG	Throttle position sensor 1	[Ignition switch: ON] Engine stopped Shift lever: D (A/T, CVT), 1st (M/T) Accelerator pedal: Fully released	More than 0.36V
33	LG	Throttle position sensor 1	[Ignition switch: ON] Engine stopped Shift lever: D (A/T, CVT), 1st (M/T) Accelerator pedal: Fully depressed	Less than 4.75V
34	O	Throttle position sensor 2	[Ignition switch: ON] Engine stopped Shift lever: D (A/T, CVT), 1st (M/T) Accelerator pedal: Fully released	Less than 4.75V
34	O	Throttle position sensor 2	[Ignition switch: ON] Engine stopped Shift lever: D (A/T, CVT), 1st (M/T) Accelerator pedal: Fully depressed	More than 0.36V
36	Y	Sensor ground (Throttle position sensor)	[Engine is running] Warm-up condition Idle speed	Approximately 0V
72	V	Sensor power supply (Throttle position sensor)	[Ignition switch: ON]	Approximately 5V
