Front Power Window Motor RH Circuit Inspection

1. Turn ignition switch OFF.
2. Disconnect front power window motor RH.
3. Turn ignition switch ON.
4. Check voltage between front power window motor RH connector and ground.
   TERMINALS VOLTAGE CHART



   Connector	Terminals		Condition	Voltage (V) (Approx.)
   	(+)	(-)
   Front power window motor RH: D104	1	Ground	UP	0
   			DOWN	Battery voltage
   	2		UP	Battery voltage
   			DOWN	0

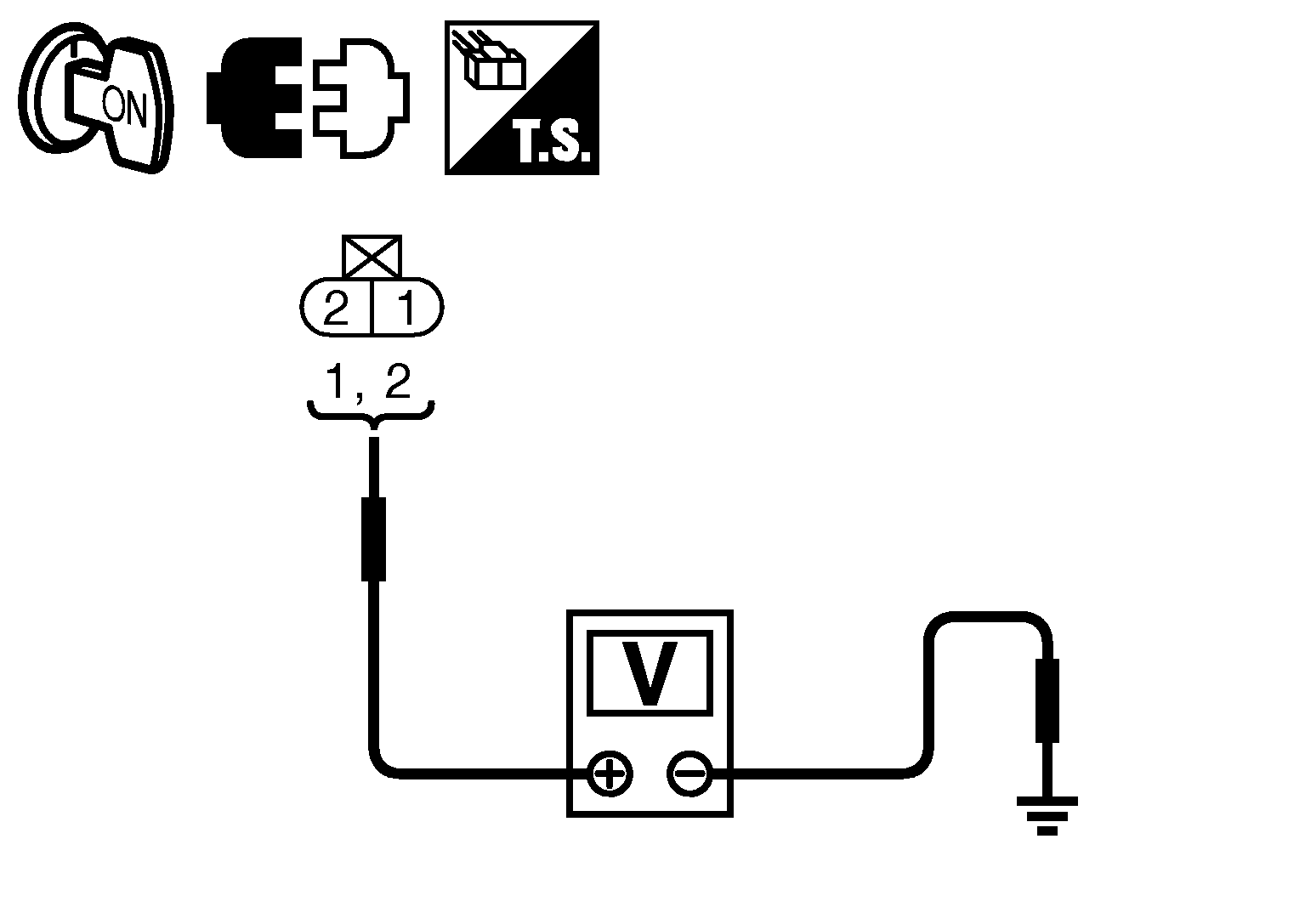

   Fig 1: Checking Voltage Between Front Power Window Motor RH Connector And Ground

   Courtesy of NISSAN MOTOR CO., U.S.A.

OK or NG

OK >> Replace front power window motor RH. Refer to "FRONT DOOR GLASS AND REGULATOR ".

NG >> GO TO 2.

1. Turn ignition switch OFF.
2. Disconnect power window and door lock/unlock switch RH.
3. Check continuity between rear power window switch RH connector D105 (A) terminals 6, 7 and rear power window motor RH connector D104 (B) terminals 1, 2.

   6 - 1: Continuity should exist.

   7 - 2: Continuity should exist.

4. Check continuity between power window and door lock/unlock switch RH connector D105 (A) terminals 6, 7 and ground.

   6 - Ground: Continuity should not exist.

   7 - Ground: Continuity should not exist.

   Fig 2: Checking Continuity Between Power Window And Door Lock/Unlock Switch RH Connector Terminals 6, 7 And Ground

   Courtesy of NISSAN MOTOR CO., U.S.A.

OK or NG

OK >> GO TO 3.

NG >> Repair or replace harness.

1. Disconnect power window and door lock/unlock switch RH.
2. Check continuity between power window and door lock/unlock switch RH terminals.
   TERMINALS CONTINUITY CHART



   Power window and door lock/unlock switch RH	Terminals		Condition	Continuity
   	6	11	DOWN	No
   			Other than above	Yes
   	7	12	UP	No
   			Other than above	Yes

   Fig 3: Checking Continuity Between Power Window And Door Lock/Unlock Switch RH Terminals

   Courtesy of NISSAN MOTOR CO., U.S.A.

OK or NG

OK >> GO TO 4.

NG >> Replace power window and door lock/unlock switch RH. Refer to "FRONT DOOR ".

1. Disconnect main power window and door lock/unlock switch.
2. Check continuity between power window main switch connector and power window and door lock/unlock switch RH connector.
   TERMINALS CONTINUITY CHART



   Connector	Terminal	Connector	Terminal	Continuity
   A		B
   Main power window and door lock/unlock switch: D7	12	Power window and door lock/unlock switch RH: D105	11	Yes
   	16		12

   Fig 4: Checking Continuity Between Power Window Main Switch Connector And Power Window And Door Lock/Unlock Switch RH Connector

   Courtesy of NISSAN MOTOR CO., U.S.A.
3. Check continuity power window main switch connector and ground.
   TERMINALS CONTINUITY CHART



   Connector	Terminal	Ground	Continuity
   A
   Main power window and door lock/unlock switch: D7	12		No
   	16

OK or NG

OK >> Replace main power window and door lock/unlock switch. Refer to "FRONT DOOR ".

NG >> Repair or replace harness.
