Home >> Nissan-Datsun >> 2009 >> Versa Base, Automatic >> Repair and Diagnosis >> Body & Frame >> Windows >> Glass, Window System & Mirrors >> Opera Window Glass >> Removal and Installation >> Notes

Removal and Installation: Notes

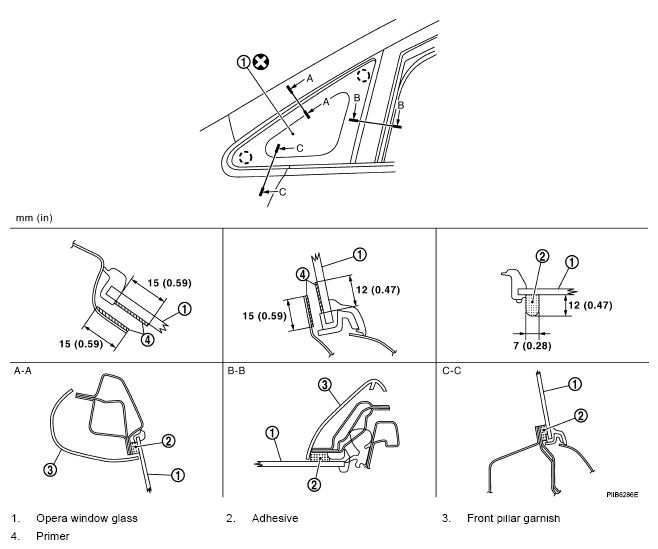

Fig 1: Identifying Opera Window Glass Components

G04814820

Courtesy of NISSAN MOTOR CO., U.S.A.
