Park/Neutral Position (PNP) Switch: Components

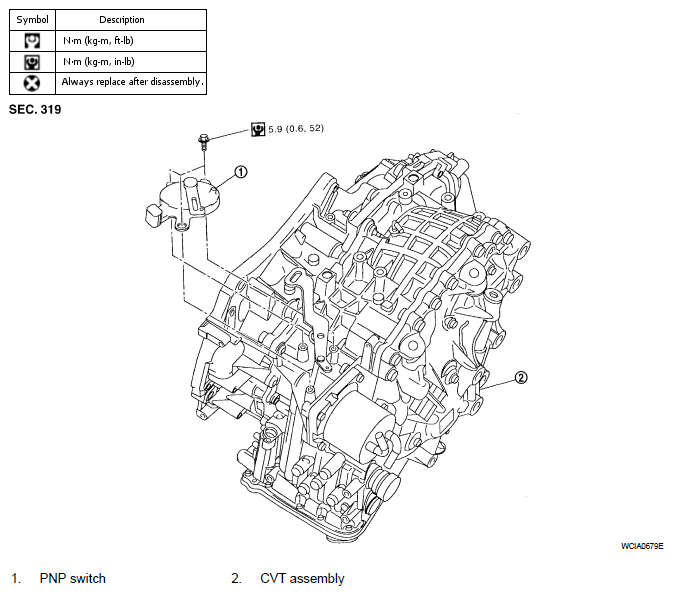

Fig 1: Park/Neutral Position (PNP) Switch Replacement Components With Torque Specifications

Courtesy of NISSAN MOTOR CO., U.S.A.

NOTE:

• Align PNP switch position when installing.
• After installation of PNP switch, check the continuity of PNP switch. Refer to "ADJUSTMENT OF PNP SWITCH ".
• After installation is complete, adjust and check CVT position. Refer to "ADJUSTMENT OF CVT POSITION ", "CHECKING OF CVT POSITION ".
