Transaxle Assembly: Component

WARNING: This page is about a different variant/trim than selected.

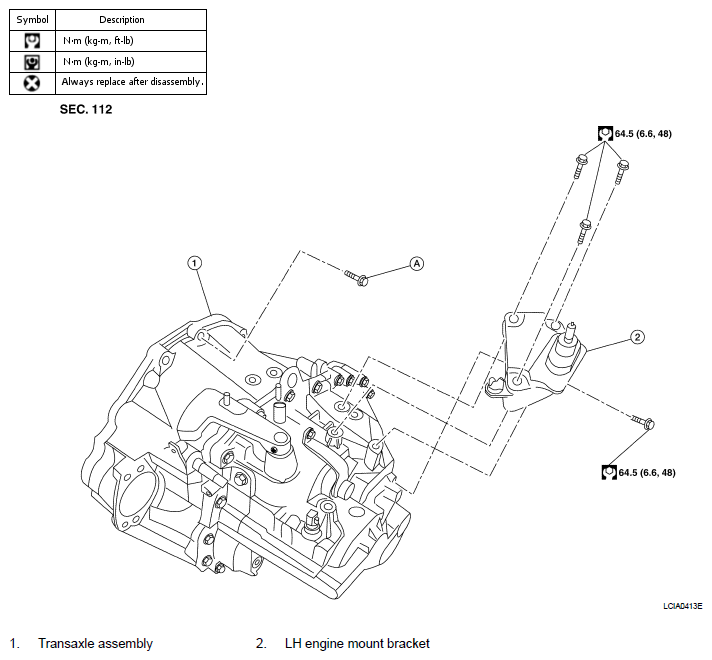

Fig 1: Transaxle Assembly Replacement Components With Torque Specifications
G05925581Courtesy of NISSAN MOTOR CO., U.S.A.
