Component of Control Device and Cable

WARNING: This page is about a different variant/trim than selected.

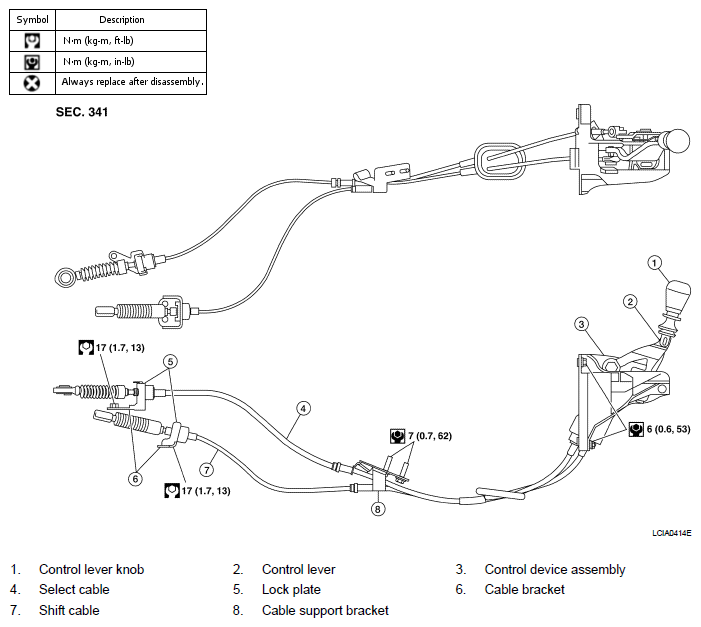

Fig 1: Control Linkage Replacement Components With Torque Specifications
G05925576Courtesy of NISSAN MOTOR CO., U.S.A.
