Lubrication System: Schematic

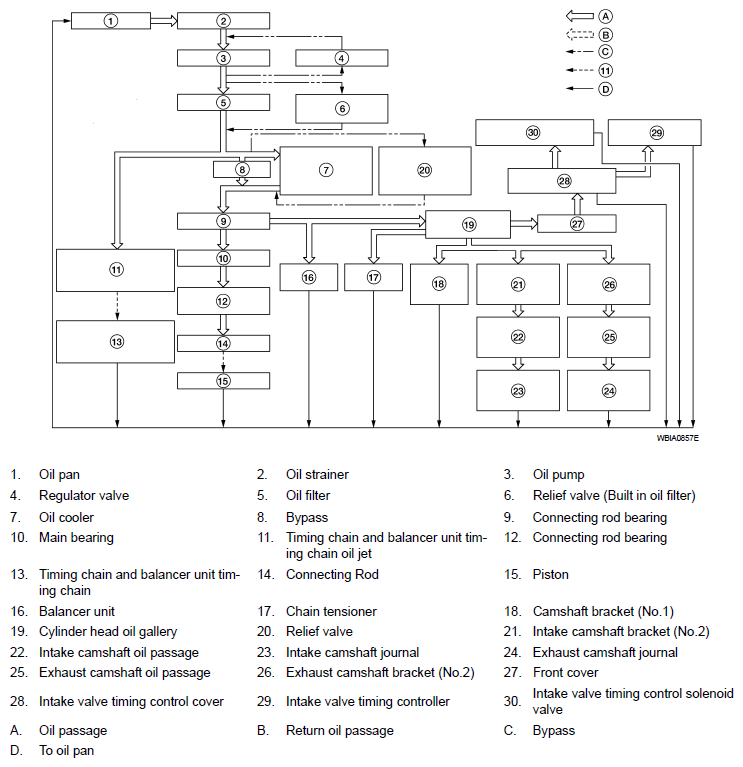

Fig 1: Lubrication System Schematic Diagram

G05923514

Courtesy of NISSAN MOTOR CO., U.S.A.
