Warning Lamps: Schematic

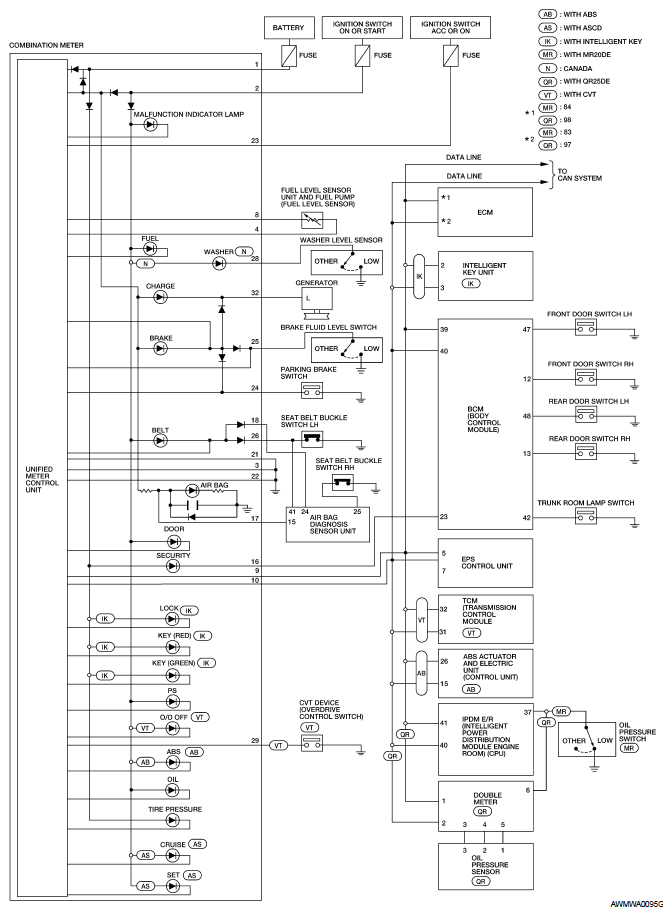

Fig 1: Warning Lamps Schematic Diagram

G05924922

Courtesy of NISSAN MOTOR CO., U.S.A.
