Nissan-Datsun
>>
2009
>>
Sentra SE-R
>>
Repair and Diagnosis (Single Page)
>>
Transmission
>>
Automatic Trans
>>
Continuously Variable Transmission (CVT)
>>
Service Information
>>
On-Vehicle Service
>>
Control Valve
>>
Notes
Control Valve: Notes

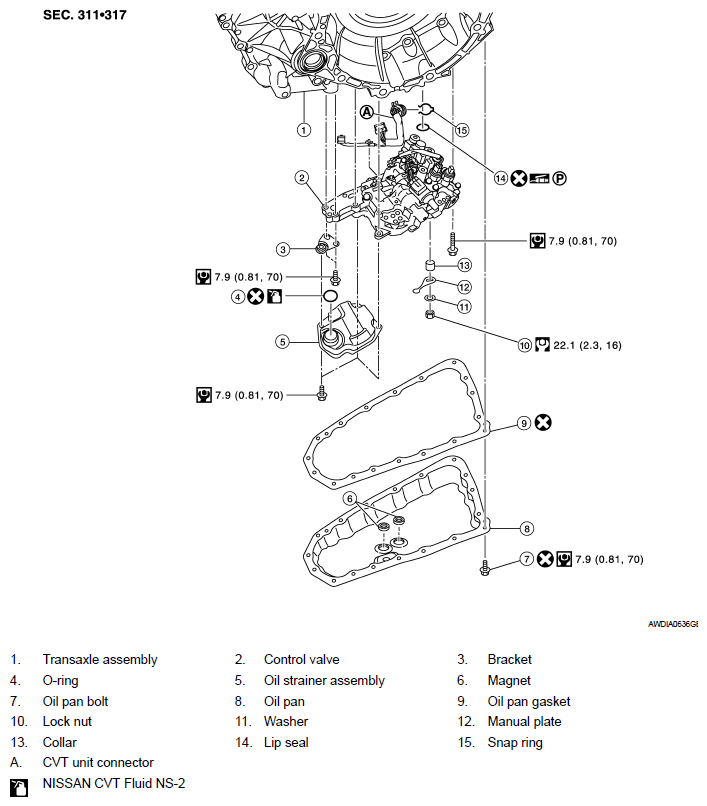

Fig 1: Control Valve Replacement Components With Torque Specifications
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
