Vehicle Security (Theft Warning) System: Schematic

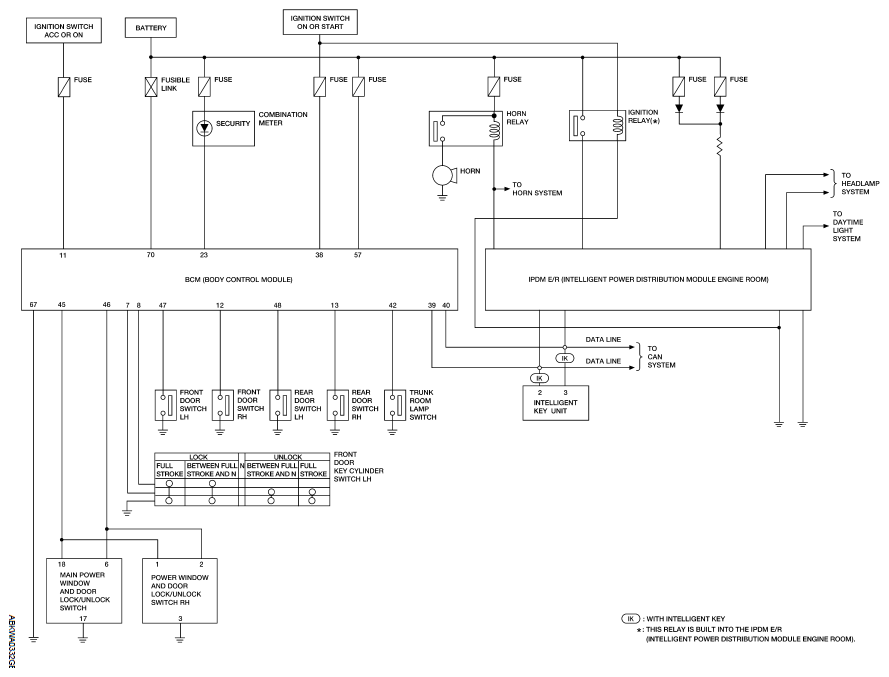

Fig 1: Vehicle Security System Schematic Diagram

G05924797

Courtesy of NISSAN MOTOR CO., U.S.A.
