Wiring Diagram - Intelligent Key -

NOTE: For references to PG-Power, see POWER SUPPLY, GROUND & CIRCUIT ELEMENTS .

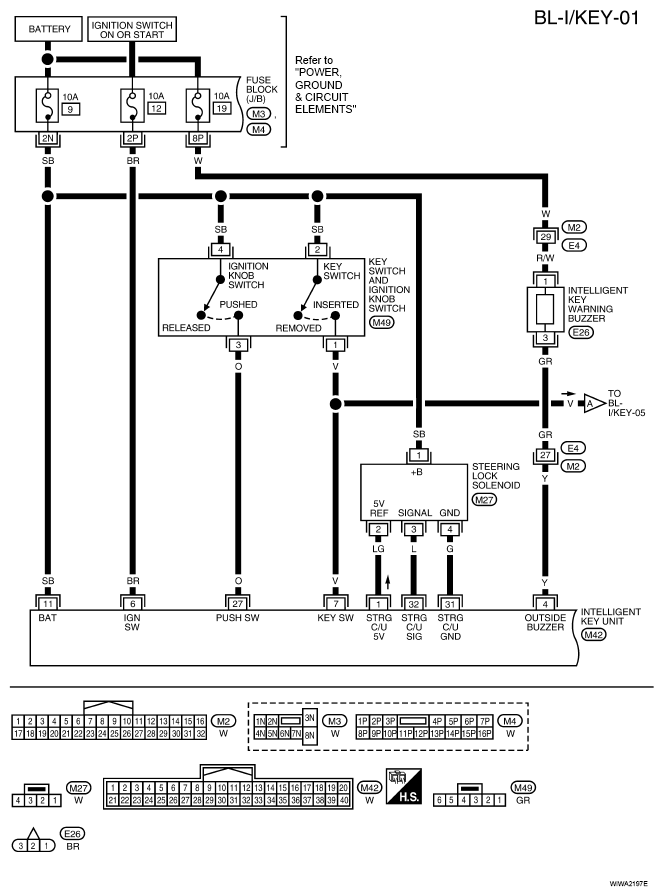

Fig 1: BL-1/KEY-01 - Wiring Diagram

Courtesy of NISSAN MOTOR CO., U.S.A.

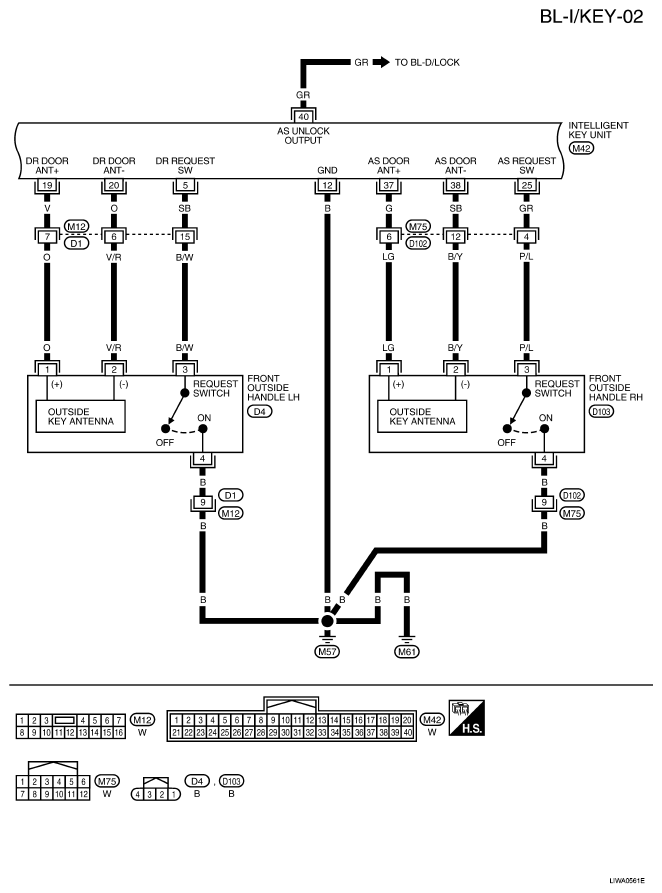

Fig 2: BL-1/KEY-02 - Wiring Diagram

Courtesy of NISSAN MOTOR CO., U.S.A.

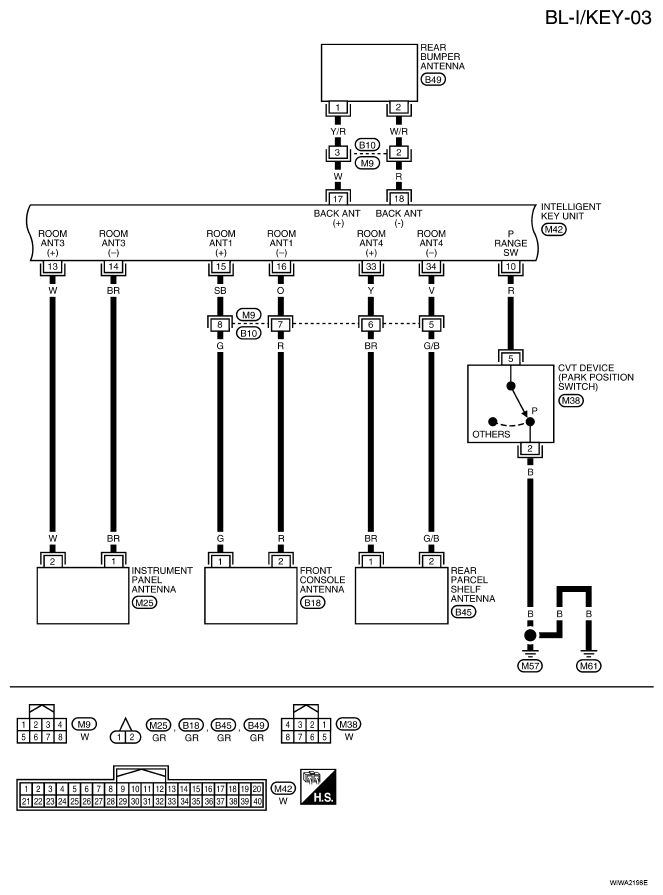

Fig 3: BL-1/KEY-03 - Wiring Diagram

Courtesy of NISSAN MOTOR CO., U.S.A.

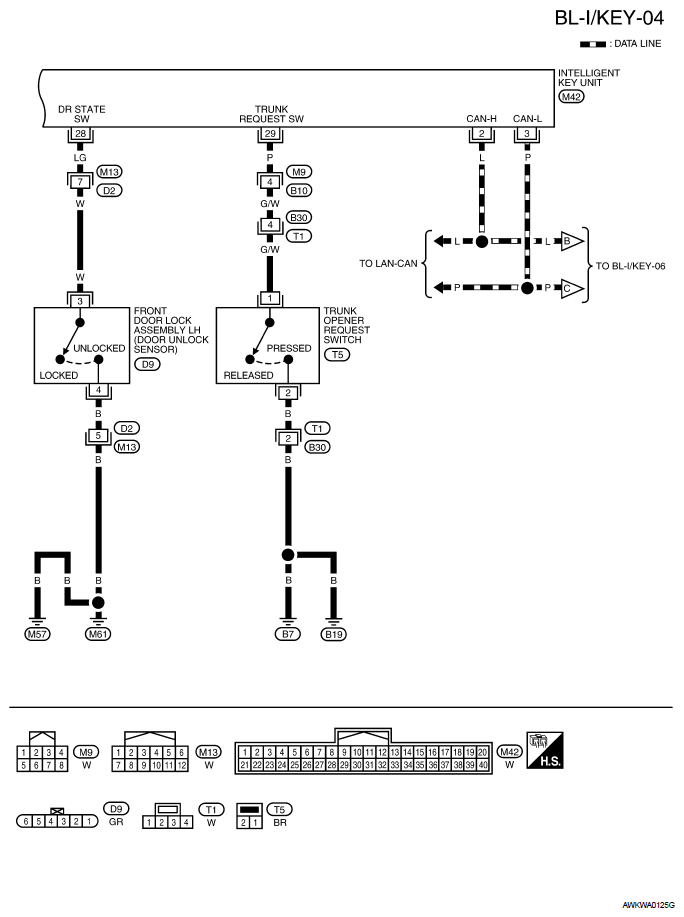

Fig 4: BL-1/KEY-04 - Wiring Diagram

Courtesy of NISSAN MOTOR CO., U.S.A.

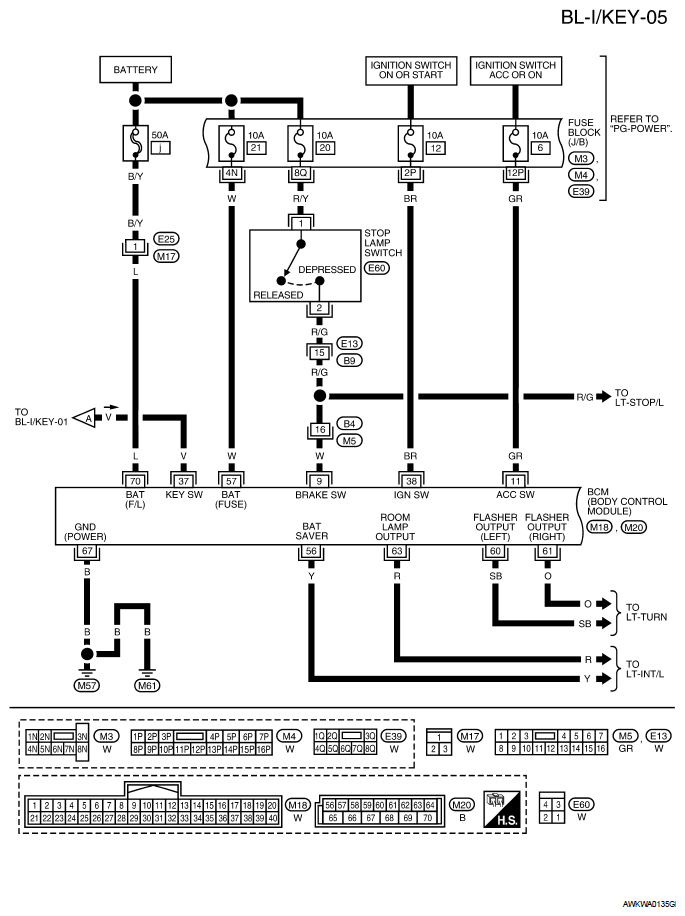

Fig 5: BL-1/KEY-05 - Wiring Diagram

Courtesy of NISSAN MOTOR CO., U.S.A.

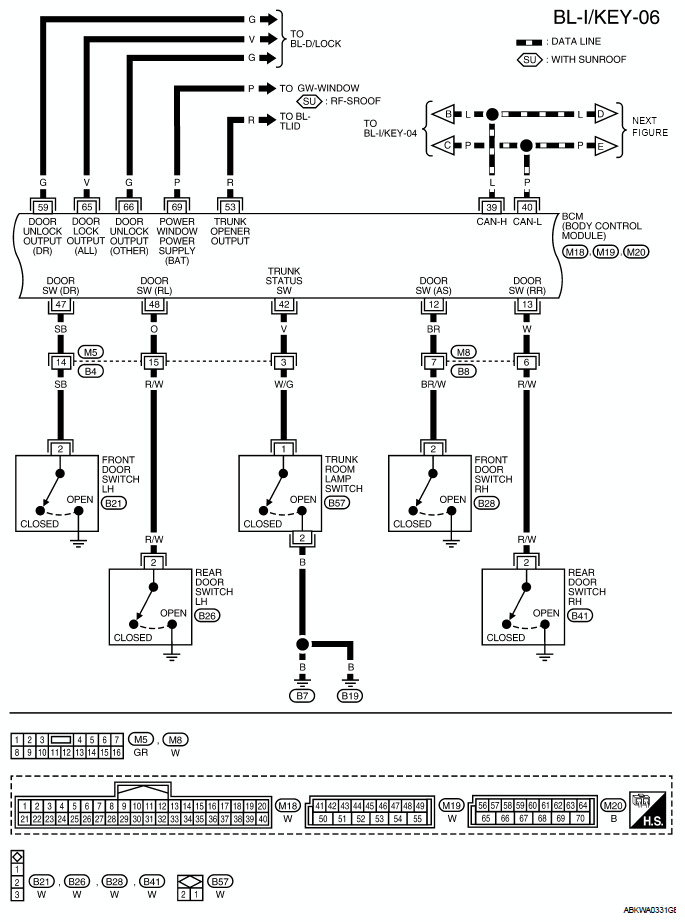

Fig 6: BL-1/KEY-06 - Wiring Diagram

Courtesy of NISSAN MOTOR CO., U.S.A.

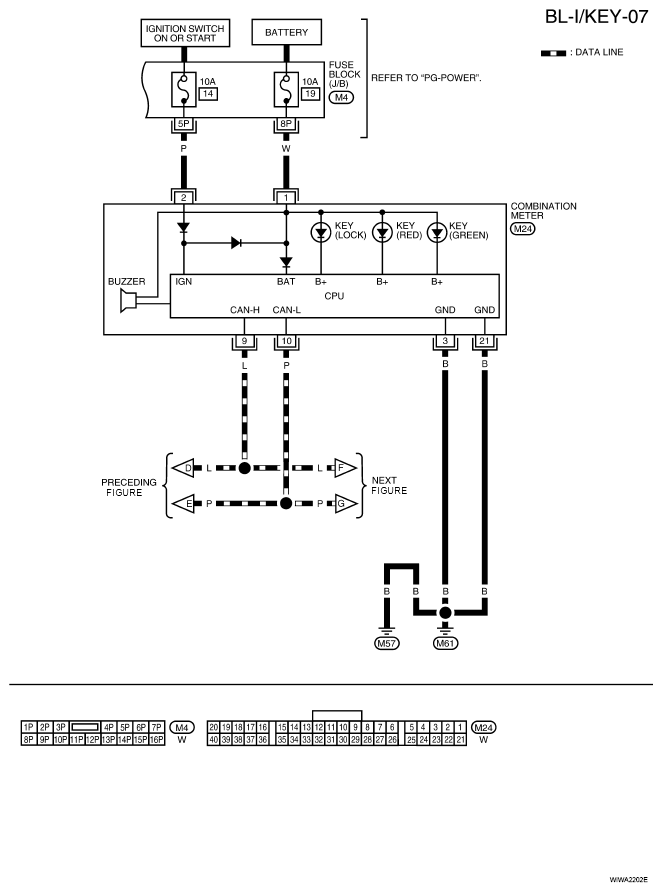

Fig 7: BL-1/KEY-07 - Wiring Diagram

Courtesy of NISSAN MOTOR CO., U.S.A.

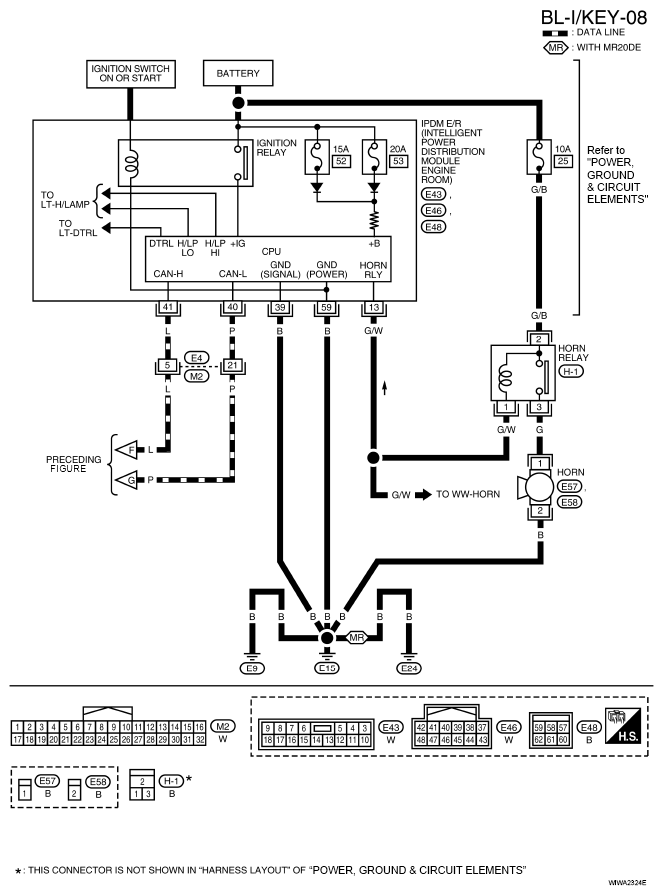

Fig 8: BL-1/KEY-08 - Wiring Diagram

Courtesy of NISSAN MOTOR CO., U.S.A.
